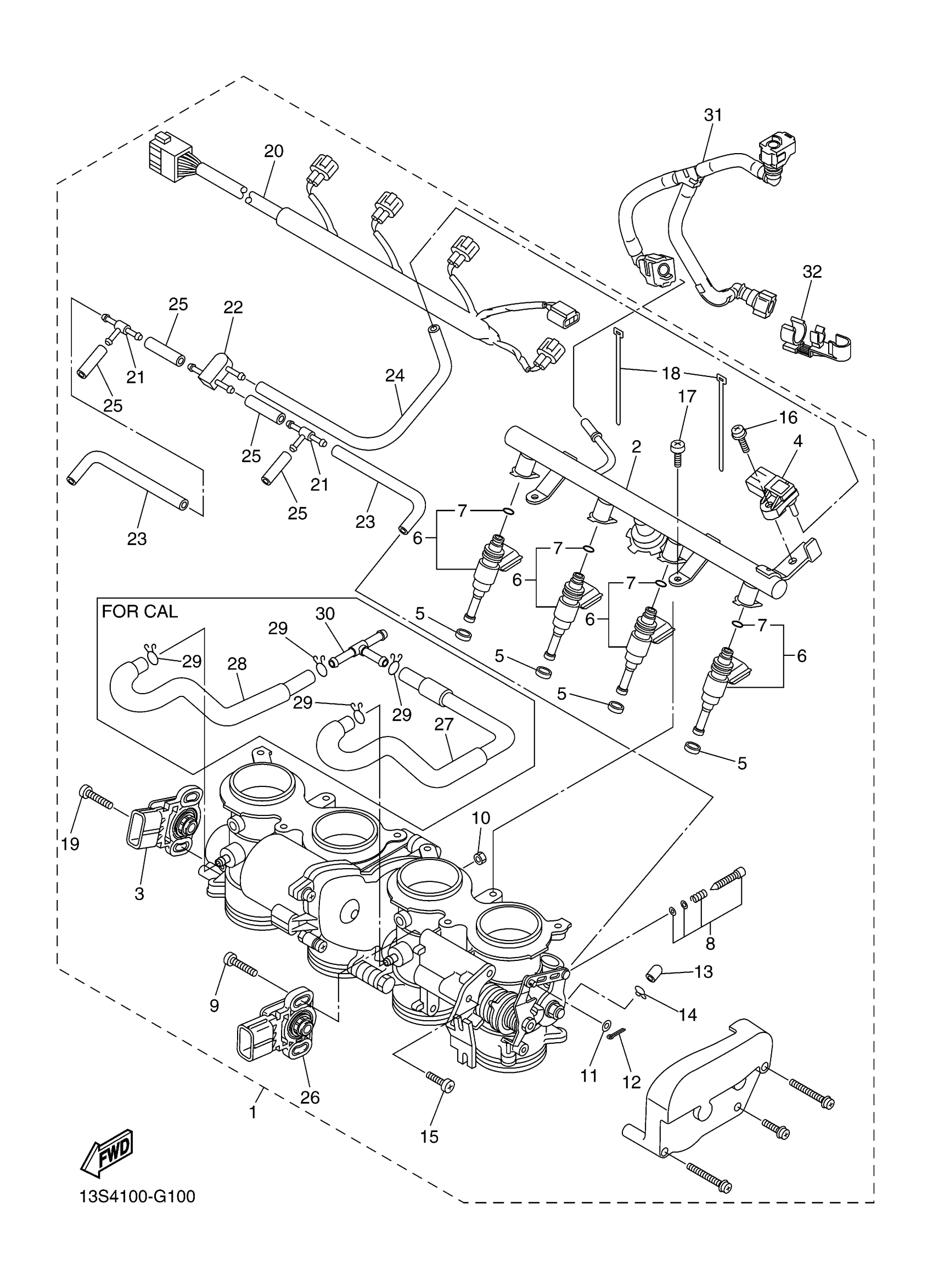

Yamaha YZFR6ER (YZFR6) 2CX71 2014 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

13S-13750-10-00

Unavailable

2

PIPE INLET ASSEMBLY

13S-13930-00-00

Unavailable

3

THROTTLE SENSOR AS

13S-85885-01-00

$138.99

4

SENSOR, PRESSURE

1WS-82380-00-00

$193.99

5

GASKET, MANIFOLD

8FP-13556-00-00

$13.99

6

INJECTOR ASSY

2C0-13761-00-00

$320.99

7

O-RING

5PS-14147-00-00

$13.49

8

PILOT SCREW SET

2C0-14105-00-00

$34.99

9

SCREW

5FL-14216-00-00

$6.99

10

NUT(4CH)

95307-04700-00

Unavailable

11

WASHER

22U-14952-00-00

$6.99

12

PIN, COTTER

91492-12010-00

$3.35

13

CAP

895-14169-00-00

$5.49

14

CLIP, PIPE

8A7-14139-00-00

$8.99

15

SCREW, PAN

98517-05012-00

$4.73

16

SCREW

2C0-14216-00-00

Unavailable

17

SCREW, PAN

98517-06012-00

Unavailable

18

CLIP

4KM-14137-00-00

Unavailable

19

SCREW

8CC-14216-10-00

Unavailable

20

EXTENSION, WIRE HARNESS

13S-82386-00-00

Unavailable

21

. PIPE, JOINT 1

68V-24376-00-00

Unavailable

22

NIPPLE

3XV-14251-00-00

Unavailable

23

. HOSE, VACUUM SENSING 4

68V-13533-00-00

Unavailable

24

HOSE, VACUUM SENSING 3

2C0-13532-00-00

Unavailable

25

PIPE 1

5FL-14348-10-00

Unavailable

26

ACCELERATOR SENSOR ASSY.

13S-85884-01-00

Unavailable

27

PIPE

13S-14465-00-00

Unavailable

28

PIPE

13S-14466-00-00

Unavailable

29

CLIP

90467-100A1-00

Unavailable

30

WAY (70R)

90413-08012-00

Unavailable

31

PIPE, FUEL 1

13S-13971-01-00

Unavailable

32

CLAMP

90464-16005-00

Unavailable
