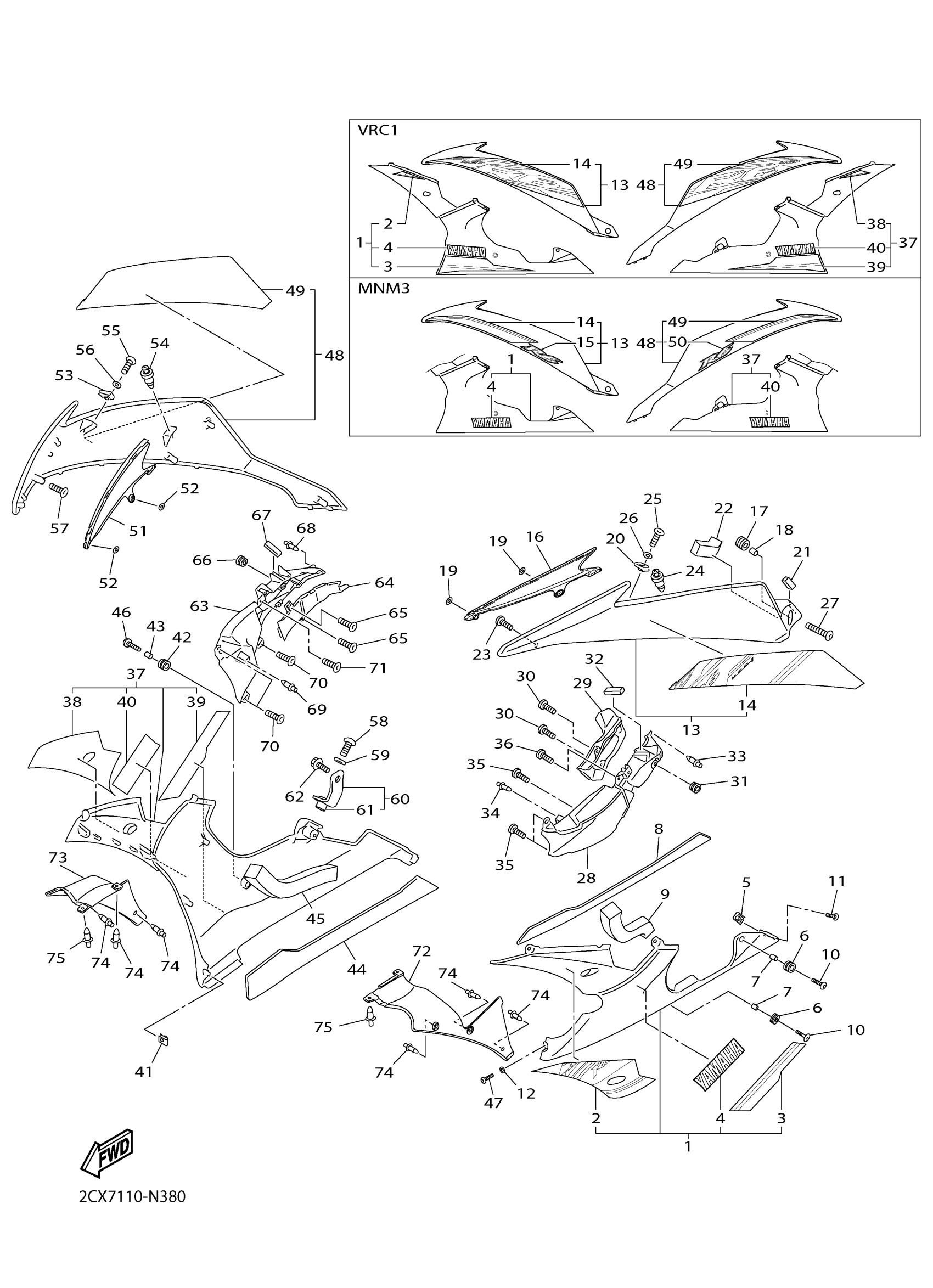

Yamaha YZFR6ER (YZFR6) 2CX71 2014 COWLING 2 Diagram

#

Description
Price

1

UNDER COVER COMP. 1

13S-W2838-E0-P0

Unavailable

4

EMBLEM, YAMAHA

99247-00240-00

$16.99

5

NUT, SPRING

90183-050A6-00

$8.49

6

GROMMET

90480-14003-00

$8.49

7

COLLAR

90387-06260-00

$8.49

8

SEAT 1

13S-2838G-00-00

Unavailable

9

DAMPER, PLATE

90520-50002-00

Unavailable

10

BOLT

90111-06040-00

$4.29

11

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

12

WASHER, PLATE(1KT)

90202-05180-00

$10.49

13

PANEL ASSY 1

13S-W283U-K0-PA

$357.99

14

GRAPHIC 1

2CX-28391-30-00

Unavailable

15

EMBLEM 3D

1JS-2839B-11-00

Unavailable

16

COVER 1

13S-28219-00-00

Unavailable

17

GROMMET

90480-14003-00

$8.49

18

COLLAR

90387-06260-00

$8.49

19

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

20

NUT, SPRING

90183-050A6-00

$8.49

21

DAMPER 1

13S-28415-00-00

Unavailable

22

DAMPER, PLATE

90520-50001-00

Unavailable

23

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

24

RIVET

90269-07007-00

Unavailable

25

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

26

WASHER, PLATE(1KT)

90202-05180-00

$10.49

27

BOLT

90111-06040-00

$4.29

28

GUIDE, AIR 1

13S-2137U-00-00

Unavailable

29

GUIDE, AIR 3

13S-2137K-01-00

Unavailable

30

SCREW, TAPPING

97702-50016-00

Unavailable

31

GROMMET(4DN)

90480-01558-00

Unavailable

32

DAMPER 1

13S-28217-00-00

Unavailable

33

RIVET

90269-06008-00

Unavailable

34

RIVET

90269-06081-00

Unavailable

35

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

36

SCREW, TAPPING(4TV)

90167-05078-00

Unavailable

37

UNDER COVER COMP. 2

13S-W2839-E0-P0

Unavailable

40

EMBLEM, YAMAHA

99247-00240-00

$16.99

41

NUT, SPRING

90183-050A6-00

$8.49

42

GROMMET

90480-14003-00

$8.49

43

COLLAR

90387-06260-00

$8.49

44

SEAT 2

13S-2848K-00-00

Unavailable

45

DAMPER 10

13S-2847R-00-00

Unavailable

46

BOLT

90111-06040-00

$4.29

47

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

48

PANEL ASSY 2

13S-W283V-K0-PA

Unavailable

49

GRAPHIC 2

2CX-28392-30-00

Unavailable

50

EMBLEM 3D

1JS-2839B-11-00

Unavailable

51

COVER 2

13S-28229-00-00

Unavailable

52

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

53

NUT, SPRING

90183-050A6-00

$8.49

54

RIVET

90269-07007-00

Unavailable

55

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

56

WASHER, PLATE(1KT)

90202-05180-00

$10.49

57

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

58

BOLT

90109-06207-00

Unavailable

59

WASHER, PLATE

90202-10024-00

Unavailable

60

BRACKET 4

13S-2836G-00-00

Unavailable

61

NUT

90179-06059-00

Unavailable

62

BOLT, FLANGE

95817-06014-00

Unavailable

63

GUIDE, AIR 2

13S-2137V-00-00

Unavailable

64

GUIDE, AIR 4

13S-2137L-01-00

Unavailable

65

SCREW, TAPPING

97702-50016-00

Unavailable

66

GROMMET(4DN)

90480-01558-00

Unavailable

67

DAMPER 1

13S-28217-00-00

Unavailable

68

RIVET

90269-06008-00

Unavailable

69

RIVET

90269-06081-00

Unavailable

70

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

71

SCREW, TAPPING(4TV)

90167-05078-00

Unavailable

72

PANEL, INNER 2

13S-2836L-00-00

Unavailable

73

PANEL, INNER 3

13S-2836M-00-00

Unavailable

74

RIVET

90269-06008-00

Unavailable

75

RIVET

90269-06002-00

Unavailable
