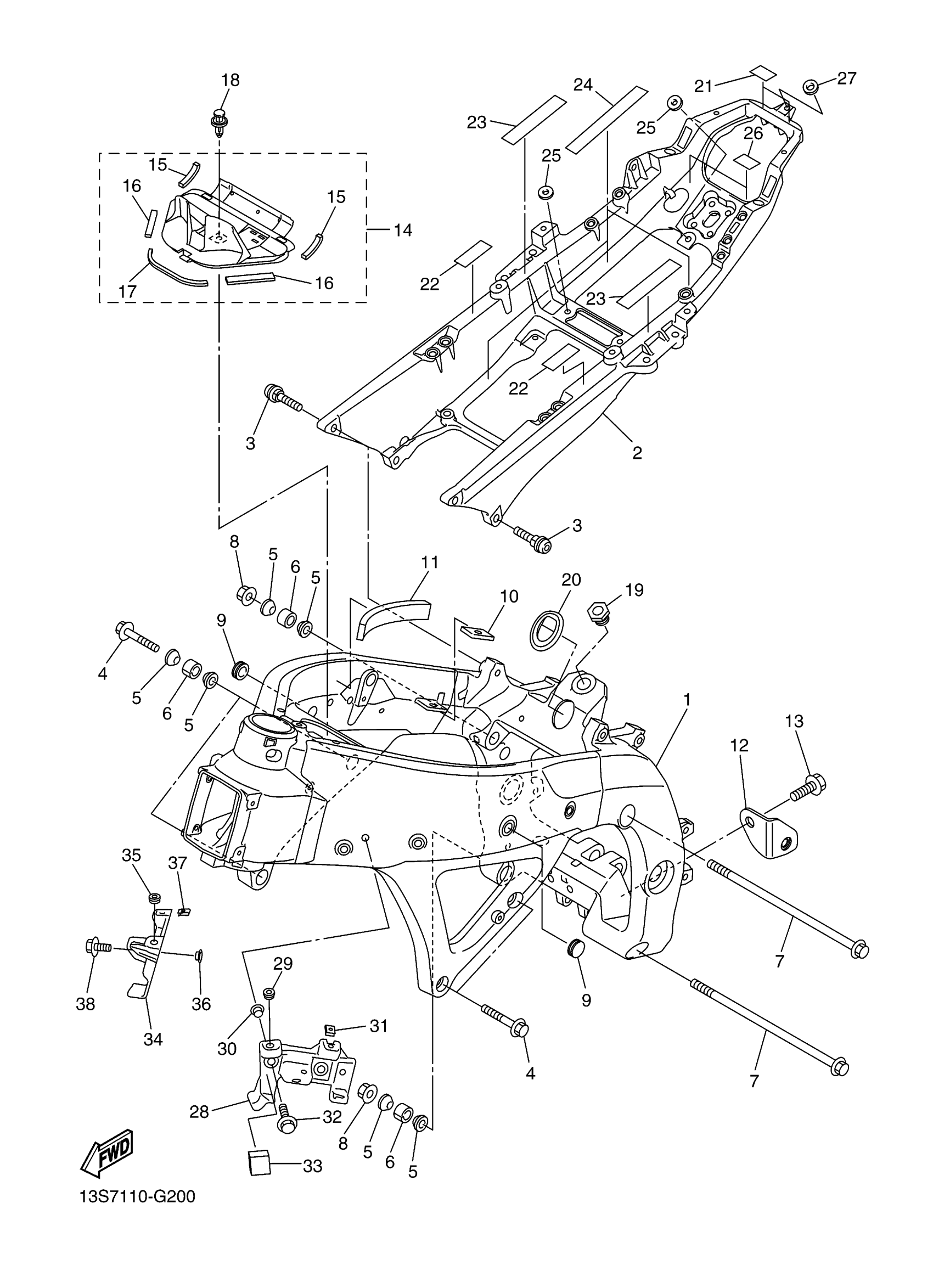

Yamaha YZFR6DR (YZFR6) 2CX11 2013 FRAME Diagram
#
Description
Price
1
FRAME COMP.
13S-21110-10-00
Unavailable
2
REAR FRAME COMP.
13S-21190-10-00
Unavailable
12
BRACKET, MUFFLER 1
13S-21435-00-00
Unavailable
16
. DAMPER
2C0-2174Y-00-00
Unavailable
17
DAMPER
2C0-21746-00-00
Unavailable
18
RIVET
90269-07010-00
Unavailable
19
BOLT 1
2C0-22241-00-00
Unavailable
20
PLUG, BLIND
2C0-21279-00-00
Unavailable
21
TAPE, 1
2C0-21566-00-00
Unavailable
22
TAPE, 2
2C0-21567-00-00
Unavailable
23
TAPE, 1
13S-21566-00-00
Unavailable
24
TAPE, 2
13S-21567-00-00
Unavailable
25
SEAL 1
13S-2111D-00-00
Unavailable
26
TAPE, 1
2C0-21566-00-00
Unavailable
27
DAMPER
13S-21746-00-00
Unavailable
28
BRACKET 7
13S-2833A-01-00
Unavailable
29
GROMMET
90480-10003-00
Unavailable
30
COLLAR
90387-06048-00
Unavailable
31
NUT, SPRING
90183-050A6-00
Unavailable
32
BOLT, FLANGE
95817-06020-00
Unavailable
33
DAMPER, SHROUD 6
13S-12679-00-00
Unavailable
34
BRACKET 8
13S-2833E-01-00
Unavailable
35
GROMMET
90480-10003-00
Unavailable
36
COLLAR
90387-06048-00
Unavailable
37
NUT, SPRING
90183-050A6-00
Unavailable
38
BOLT, FLANGE
95817-06020-00
Unavailable
