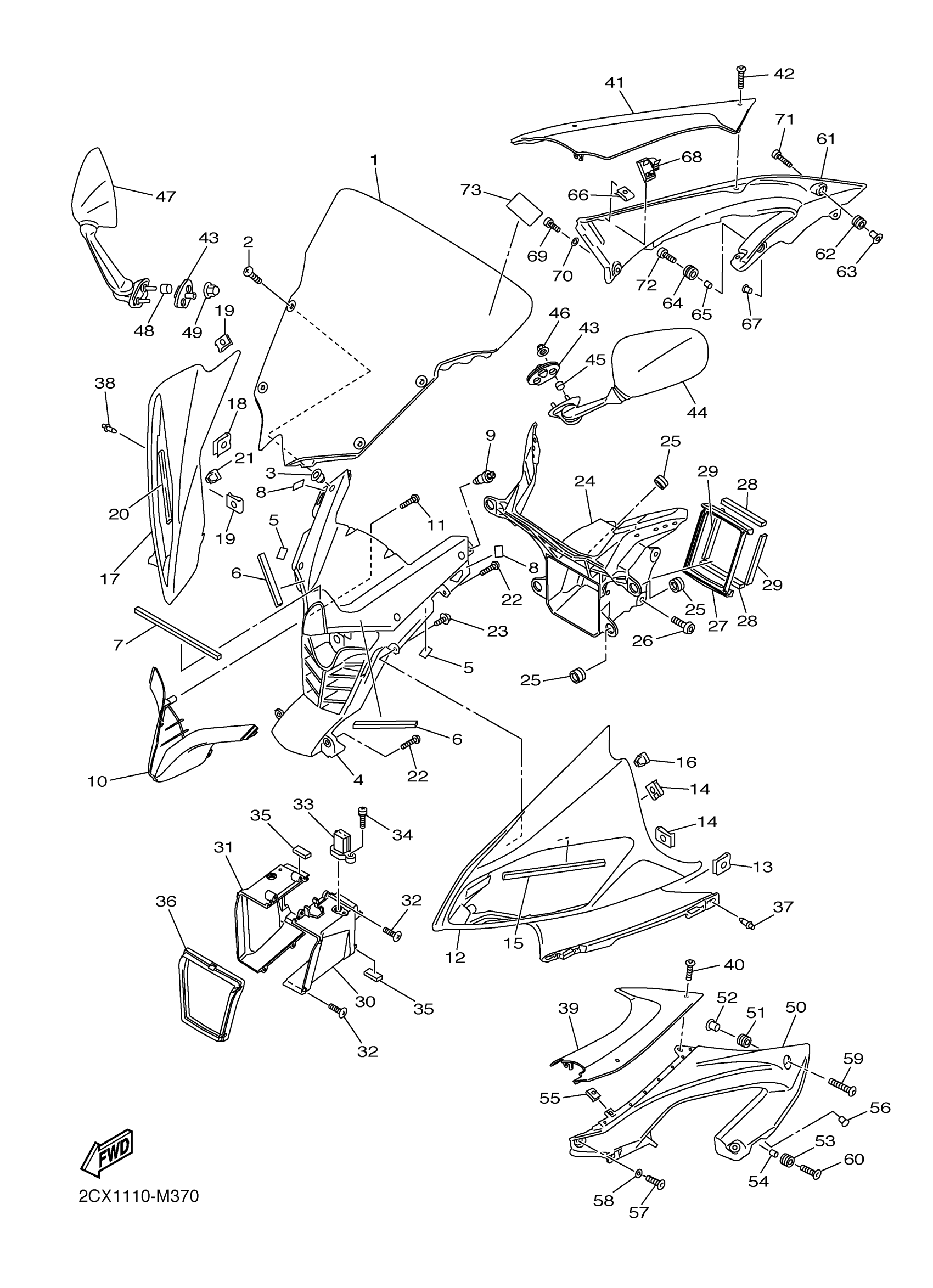

Yamaha YZFR6DR (YZFR6) 2CX11 2013 COWLING 1 Diagram

#

Description
Price

1

WINDSHIELD

13S-28381-10-00

$99.99

2

SCREW, ROUND HEAD(1UX)

90150-05023-00

$4.19

3

NUT(1KT)

90179-05523-00

$8.49

4

PANEL, INNER 1

13S-2836K-00-00

Unavailable

5

DAMPER 1

3P6-28217-00-00

$7.99

6

DAMPER 2

13S-28227-00-00

$6.99

7

DAMPER 3

13S-28237-00-00

$7.99

8

DAMPER

13S-28371-00-00

$6.99

9

RIVET

90269-06001-00

$5.60

10

COVER

13S-28365-10-00

$16.49

11

SCREW, TRUSS TAP.

97707-40016-00

$8.49

12

BODY, FRONT UPPER 1

13S-2835G-00-P9

Unavailable

13

NUT, SPRING

90183-050A6-00

$8.49

14

NUT, SPRING(1YT)

90183-05042-00

$5.60

15

DAMPER, 4

2C0-28455-00-00

$6.99

16

GROMMET(4TV)

90480-01605-00

Unavailable

17

BODY, FRONT UPPER 2

13S-2835H-00-P9

Unavailable

18

NUT, SPRING

90183-050A6-00

$8.49

19

NUT, SPRING(1YT)

90183-05042-00

$5.60

20

DAMPER, 4

2C0-28455-00-00

$6.99

21

GROMMET(4TV)

90480-01605-00

Unavailable

22

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

23

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

24

STAY 1

13S-28356-00-00

Unavailable

25

DAMPER

4XV-83513-00-00

Unavailable

26

BOLT,HEX. SOCKET BUTTON

90111-06116-00

Unavailable

27

JOINT

2C0-28342-02-00

Unavailable

28

DAMPER 1

2C0-28217-00-00

Unavailable

29

DAMPER 2

2C0-28227-00-00

Unavailable

30

DUCT 2

13S-2838R-01-00

Unavailable

31

DUCT 3

13S-2838T-01-00

Unavailable

32

SCREW, TRUSS TAP.

97707-40016-00

$8.49

33

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

Unavailable

34

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

Unavailable

35

DAMPER 2

51Y-21639-00-00

Unavailable

36

DAMPER

2C0-28371-00-00

Unavailable

37

RIVET

90269-06008-00

Unavailable

38

RIVET

90269-06008-00

Unavailable

39

PANEL, CONSOLE 1

13S-2837L-00-00

Unavailable

40

BOLT,HEX. SOCKET BUTTON

90111-05021-00

Unavailable

41

PANEL, CONSOLE 2

13S-2837M-00-00

Unavailable

42

BOLT,HEX. SOCKET BUTTON

90111-05021-00

Unavailable

43

PLATE, MIRROR FITTING 1

13S-26298-00-00

Unavailable

44

REAR VIEW MIRROR ASSY (LEFT)

13S-26280-10-00

Unavailable

45

COLLAR(J45)

90387-064T3-00

Unavailable

46

NUT, CROWN

90176-06008-00

Unavailable

47

REAR VIEW MIRROR ASSY (RIGHT)

13S-26290-10-00

Unavailable

48

COLLAR(J45)

90387-064T3-00

Unavailable

49

NUT, CROWN

90176-06008-00

Unavailable

50

COVER 7

13S-2117V-00-P9

Unavailable

51

GROMMET

90480-12613-00

Unavailable

52

COLLAR(36Y)

90387-067K8-00

Unavailable

53

GROMMET

90480-14003-00

Unavailable

54

COLLAR

90387-06260-00

Unavailable

55

NUT, SPRING

90183-050A6-00

$8.49

56

PLUG (13K)

90338-06134-00

Unavailable

57

BOLT,HEX. SOCKET BUTTON

90111-05059-00

Unavailable

58

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

59

BOLT,HEX. SOCKET BUTTON

90111-06063-00

Unavailable

60

BOLT

90111-06040-00

Unavailable

61

COVER 8

13S-2117W-00-P9

Unavailable

62

GROMMET

90480-12613-00

Unavailable

63

COLLAR(36Y)

90387-067K8-00

Unavailable

64

GROMMET

90480-14003-00

Unavailable

65

COLLAR

90387-06260-00

Unavailable

66

NUT, SPRING

90183-050A6-00

$8.49

67

PLUG (13K)

90338-06134-00

Unavailable

68

CLAMP

90464-20014-00

Unavailable

69

BOLT,HEX. SOCKET BUTTON

90111-05059-00

Unavailable

70

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

71

BOLT,HEX. SOCKET BUTTON

90111-06063-00

Unavailable

72

BOLT

90111-06040-00

Unavailable

73

LABEL, NOTICE WINDSHIELD 1

4B5-2815K-00-00

Unavailable
