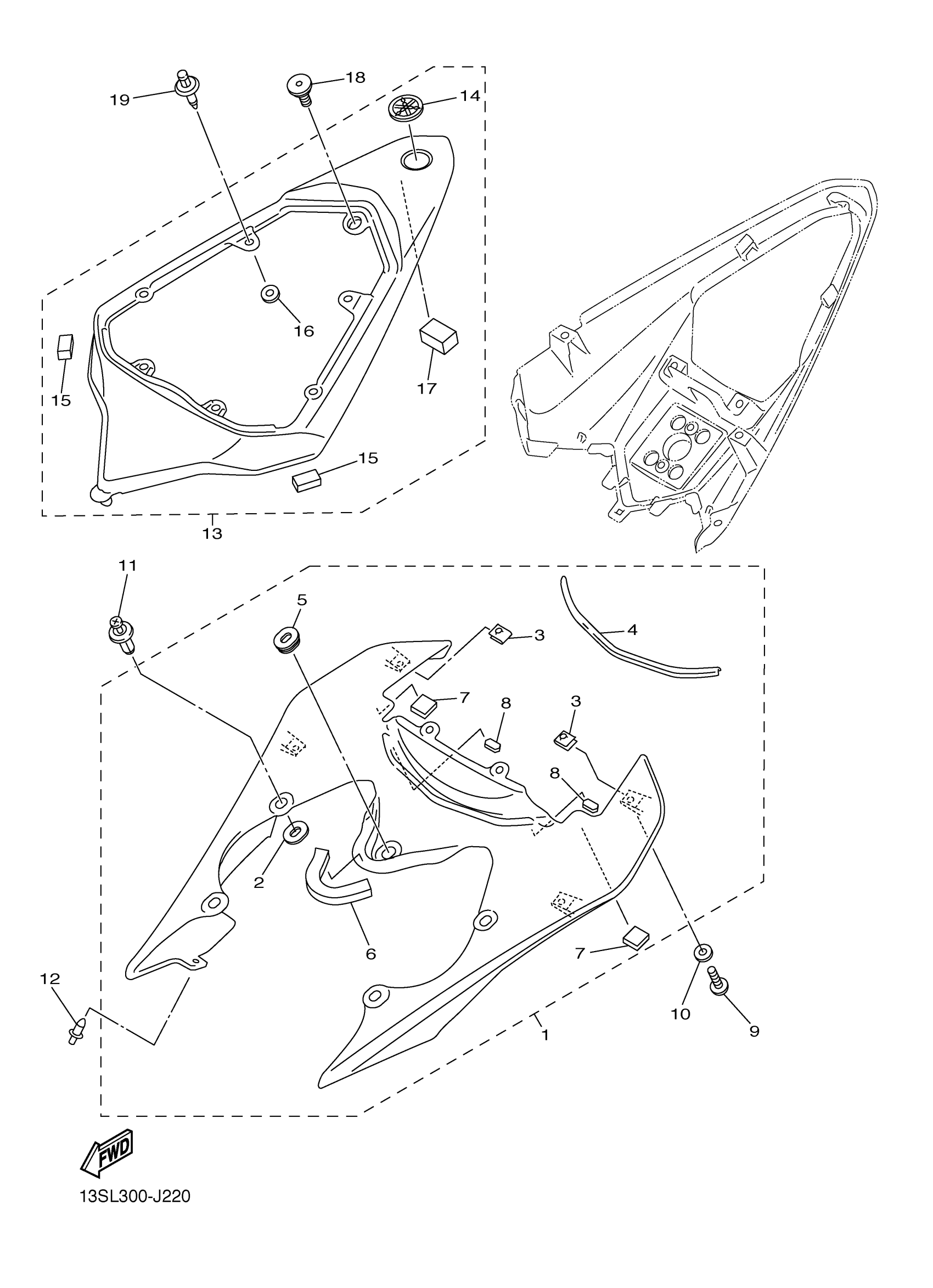

Yamaha YZFR6BW (YZFR6) 1JSD 2012 SIDE COVER Diagram

#

Description
Price

1

SIDE COVER ASSY 1

13S-21710-00-P1

Unavailable

2

DAMPER

5PW-2174X-00-00

$6.99

3

NUT, SPRING

90183-050A6-00

$8.49

4

MOLE, SIDE COVER 1

13S-2171L-00-00

$6.99

5

GROMMET(4DN)

90480-01558-00

$4.19

6

DAMPER 3

2C0-28237-00-00

$7.99

7

SEAL

1UF-15379-00-00

$6.99

8

DAMPER 2

5SL-28416-00-00

$6.99

9

BOLT

90111-05003-00

$8.49

10

WASHER, PLATE(1KT)

90202-05180-00

$10.49

11

RIVET(4JH)

90269-07076-00

$7.49

12

RIVET

90269-06008-00

$9.49

13

SIDE COVER ASSY 2

13S-21720-00-P0

Unavailable

14

TUNING FORK MARK

4KN-2836B-10-00

$18.49

15

DAMPER 2

13S-21639-00-00

$6.99

16

DAMPER

5SL-84753-00-00

Unavailable

17

CAP

1WG-2143A-00-00

Unavailable

18

BOLT

90109-06248-00

Unavailable

19

RIVET

90269-06001-00

Unavailable
