Description

Price

1

SINGLE SEAT ASSY

13S-24710-01-00

Unavailable

2

COVER, SINGLE SEAT

13S-24711-01-00

Unavailable

3

BOLT, HEXAGON SOCKET HEAD

90110-06258-00

$5.96

4

TANDEM SEAT ASSY

13S-24750-01-00

Unavailable

5

DAMPER, SEAT

5SL-24723-00-00

$5.55

6

SEAT LOCK ASSY

2C0-24780-10-00

$76.71

7

PLATE

2C0-24792-00-00

$33.34

8

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

$7.15

9

SPACER, CARRIER

2C0-24825-00-00

$6.36

10

SPACER 1

13S-24725-00-00

$4.85

11

HOLDER 1

13S-24847-00-00

$6.29

12

CLIP

90468-16001-00

$4.21

13

CABLE, SEAT LOCK

13S-2478E-00-00

$15.27

14

ROTOR SET

5VY-W2470-00-00

Unavailable

15

STAY, LOCK

5VY-2117K-01-00

$6.09

16

SPRING, LOCK 2

5VY-2176V-00-00

Unavailable

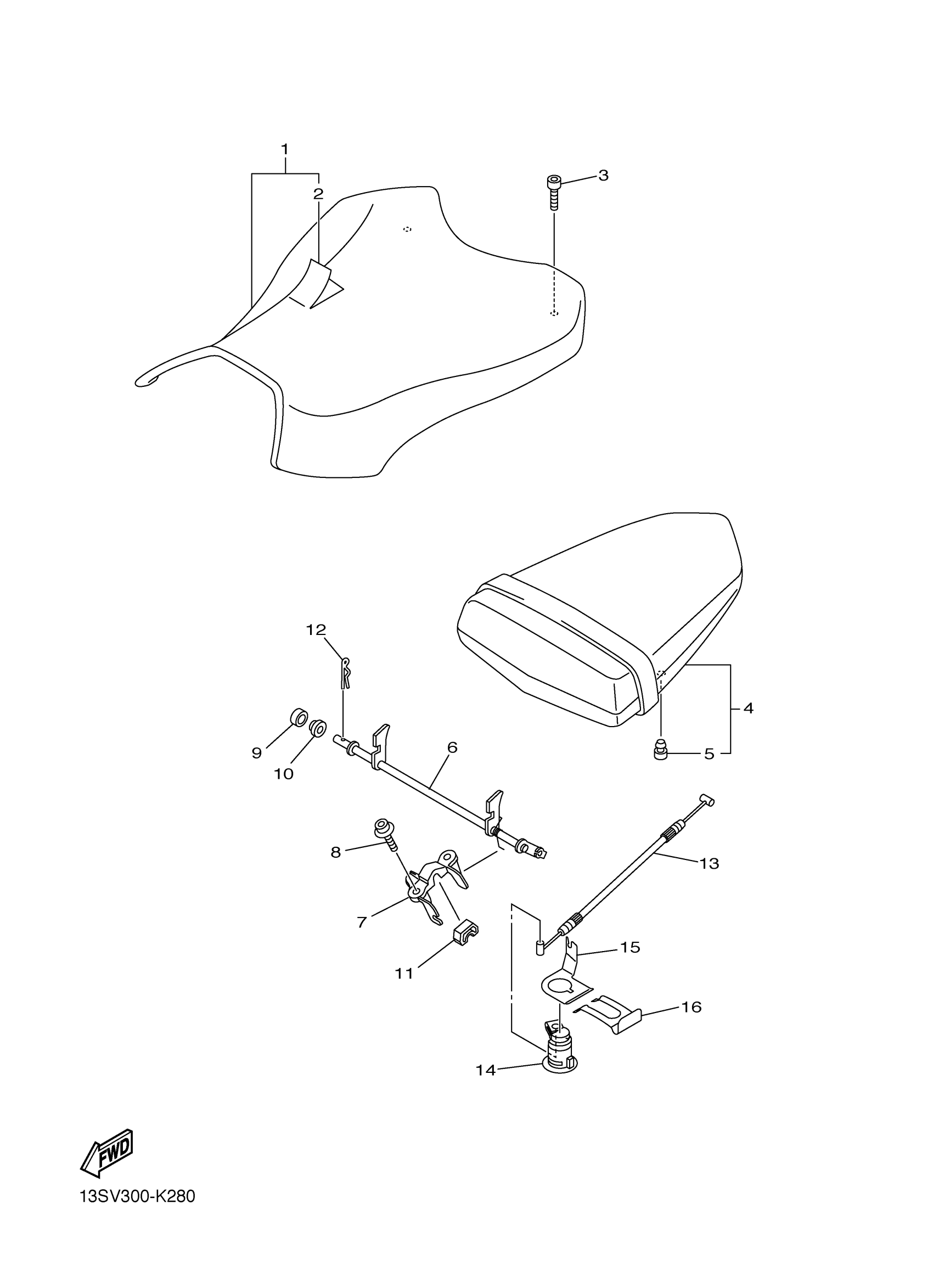

Yamaha YZFR6BW (YZFR6) 1JSD 2012 SEAT Diagram

SINGLE SEAT ASSY

COVER, SINGLE SEAT

BOLT, HEXAGON SOCKET HEAD

TANDEM SEAT ASSY

DAMPER, SEAT

SEAT LOCK ASSY

PLATE

BOLT, HEXAGON SOCKET HEAD

SPACER, CARRIER

SPACER 1

HOLDER 1

CLIP

CABLE, SEAT LOCK

ROTOR SET

STAY, LOCK

SPRING, LOCK 2
