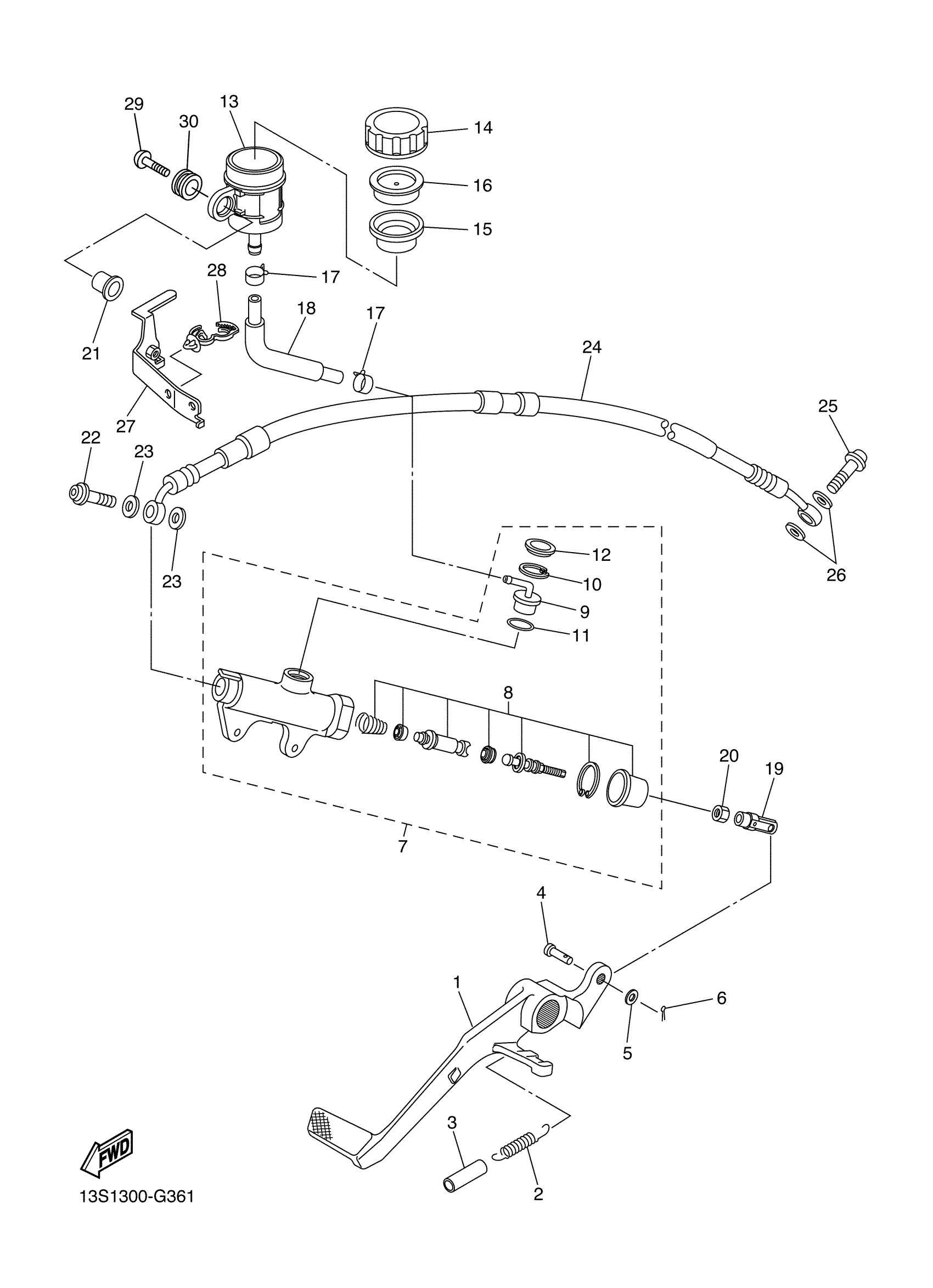

Yamaha YZFR6BW (YZFR6) 1JSD 2012 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

2C0-27211-00-00

$125.99

2

SPRING, TENSION (2X3)

90506-20193-00

$14.99

3

HOSE

90446-15386-00

$7.49

4

PIN, CLEVIS (5X6)

91701-06018-00

$4.94

5

WASHER(6TA)

92907-06200-00

$8.49

6

PIN, COTTER

91490-16020-00

Unavailable

7

RR. MASTER CYLINDER ASSY.

2C0-2583V-01-00

Unavailable

8

CYLINDER KIT, MASTER

5XT-W0042-60-00

Unavailable

9

JOINT

4ML-2582A-50-00

$14.49

10

CIRCLIP

2VN-25866-00-00

$6.99

11

O-RING (22U)

93210-15566-00

$7.49

12

COVER, DUST

3FV-2589A-00-00

$20.99

13

TANK, RESERVOIR

2C0-25894-00-00

$29.99

14

CAP, RESERVOIR

4PX-25852-00-00

Unavailable

15

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

$24.99

16

BUSH,DIAPHRAGM

2VN-25855-00-00

Unavailable

17

CLIP(3FV)

90467-12085-00

Unavailable

18

HOSE, RESERVOIR

2C0-25895-00-00

Unavailable

19

JOINT

4XV-27222-01-00

Unavailable

20

NUT, HEXAGON SMALL

95317-08700-00

Unavailable

21

COLLAR

90387-05028-00

Unavailable

22

BOLT, UNION

90401-10172-00

Unavailable

23

GASKET

90430-10005-00

Unavailable

24

HOSE, BRAKE

2C0-25874-00-00

Unavailable

25

BOLT, UNION

90401-10172-00

Unavailable

26

GASKET

90430-10005-00

Unavailable

27

BRACKET, RESERVE TANK

13S-21228-00-00

Unavailable

28

CLAMP

90464-13249-00

Unavailable

29

BOLT,HEX. SOCKET BUTTON

90111-05026-00

Unavailable

30

GROMMET

2C0-26326-00-00

Unavailable
