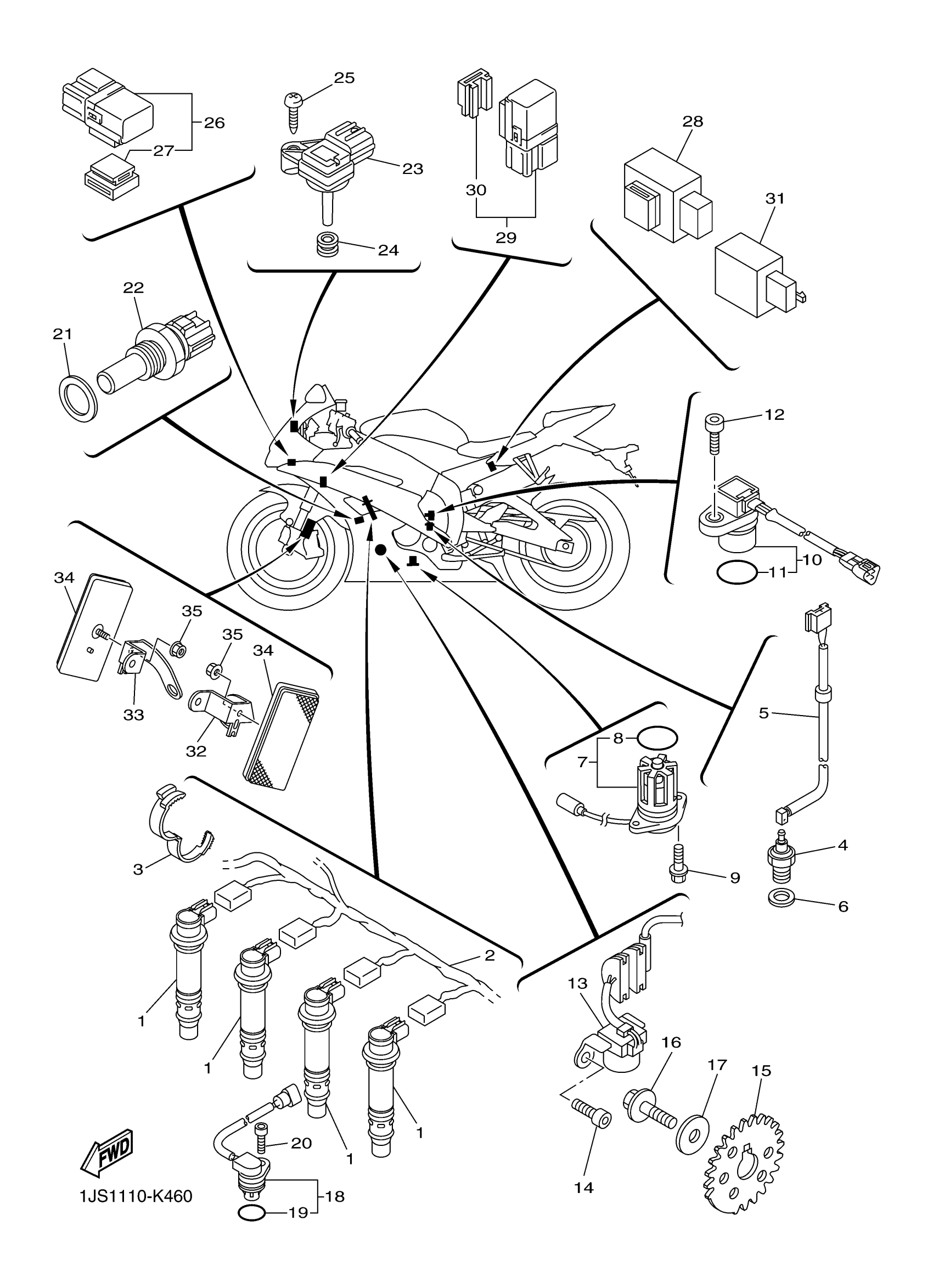

Yamaha YZFR6BW (YZFR6) 1JSD 2012 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

13S-82310-00-00

$225.99

2

WIRE, SUB LEAD

2C0-82309-00-00

Unavailable

3

CLAMP

90464-28003-00

$4.46

4

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

5

WIRE, LEAD

2C0-82541-00-00

$16.49

6

GASKET (1KH,1.0T)

90430-10148-00

$5.60

7

OIL LEVEL GAUGE ASSY

5VX-85720-01-00

$216.99

8

O-RING

5VY-8A8E0-00-00

$14.49

9

BOLT, FLANGE

95022-06016-00

$3.62

10

SENSOR, SPEED

4WM-83755-03-00

$129.99

11

O-RING

4D9-81168-00-00

$6.99

12

BOLT(3MA)

91312-06016-00

$5.60

13

PICK-UP ASSY

2C0-81670-03-00

$115.99

14

BOLT (33M)

91312-06014-00

$5.60

15

ROTOR

2C0-81673-01-00

Unavailable

16

BOLT, WASHER BASED

90105-08113-00

Unavailable

17

WASHER, PLATE

90201-08054-00

Unavailable

18

SENSOR, CAM POSITION

5VY-85896-02-00

Unavailable

19

O-RING

4D9-81168-00-00

$6.99

20

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

21

WASHER, PLATE

90201-12790-00

Unavailable

22

THERMOSENSOR ASSY

8CC-85790-01-00

Unavailable

23

SENSOR, PRESSURE

1WS-82380-00-00

Unavailable

24

GROMMET

90480-08006-00

Unavailable

25

SCREW, TAPPING

97780-50620-00

Unavailable

26

RELAY ASSY (5JJ-20)

5JJ-81950-20-00

Unavailable

27

HOLDER, RELAY

5JJ-81952-00-00

Unavailable

28

RELAY ASSY

5VK-81950-43-00

Unavailable

29

RELAY ASSY (5EA-02)

5EA-81950-20-00

Unavailable

30

HOLDER,RELAY

5EA-81952-00-00

Unavailable

31

FLASHER RELAY ASSY

4MY-83350-03-00

Unavailable

32

BRACKET, REFLECTOR 1

13S-85112-00-00

Unavailable

33

BRACKET, REFLECTOR 2

13S-85122-00-00

Unavailable

34

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

35

NUT, FLANGE

95702-05500-00

Unavailable
