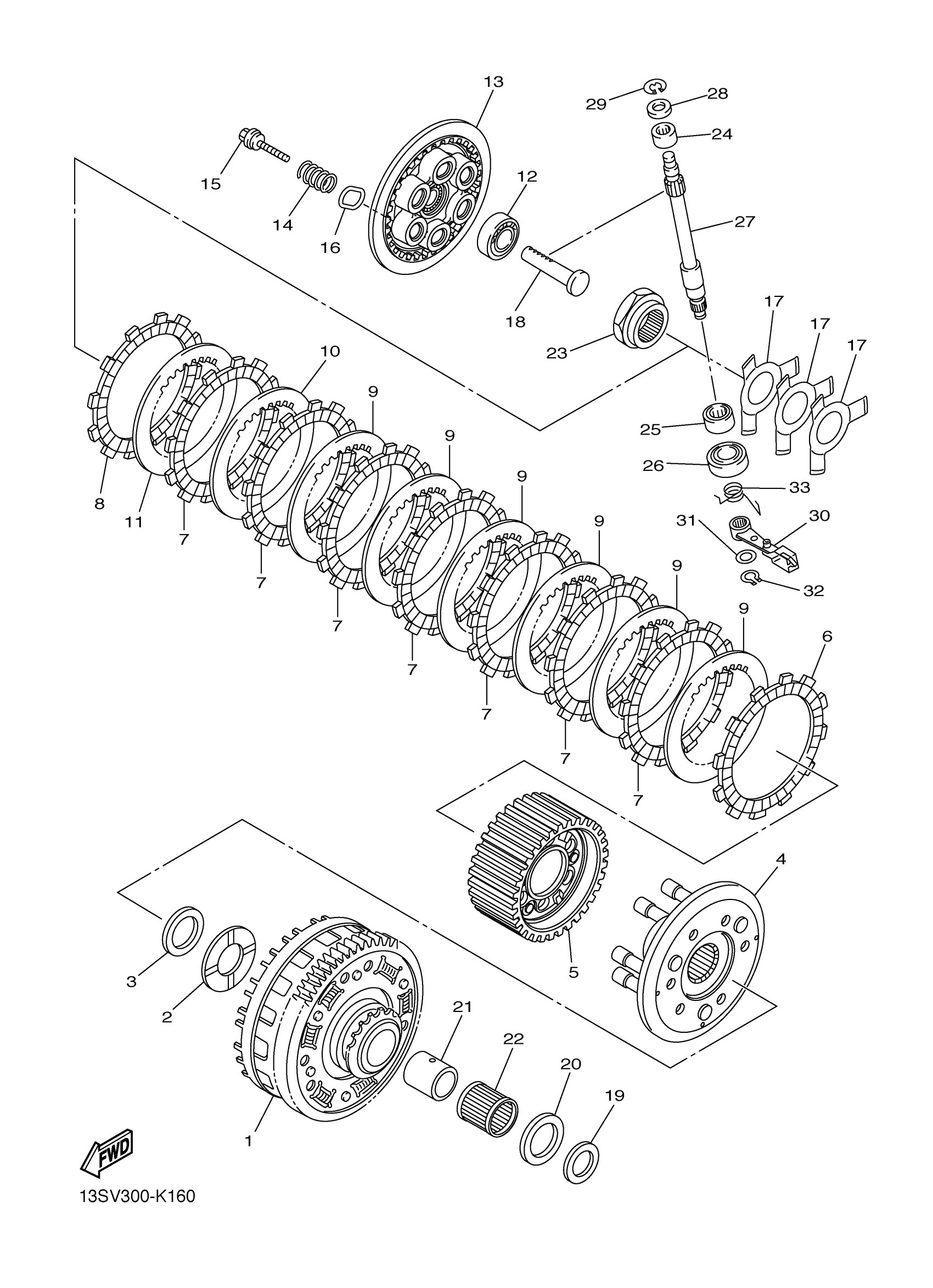

Yamaha YZFR6BW (YZFR6) 1JSD 2012 CLUTCH Diagram

#

Description
Price

1

PRIMARY DRIVEN GEAR COMP.

2C0-16150-10-00

$771.29

2

PLATE, THRUST 1

2C0-16154-00-00

$40.29

3

WASHER, CONICAL SPRING

90208-25002-00

Unavailable

4

PRESSURE PLATE ASSY 2

13S-16360-00-00

Unavailable

5

CLUTCH BOSS ASSY

13S-16370-00-00

Unavailable

6

PLATE, FRICTION

5SL-16321-00-00

$19.50

7

PLATE, FRICTION

5LV-16321-20-00

$23.54

8

PLATE, FRICTION

4FN-16321-00-00

Unavailable

9

PLATE, CLUTCH 1

3J2-16324-10-00

$9.79

10

PLATE, CLUTCH 1

168-16324-10-00

Unavailable

10

PLATE, CLUTCH 1

3J2-16324-10-00

$9.79

11

PLATE, CLUTCH 1

168-16324-10-00

Unavailable

11

PLATE, CLUTCH 2

168-16325-10-00

$12.44

11

PLATE, CLUTCH 1

3J2-16324-10-00

$9.79

12

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$23.71

13

PLATE, PRESSURE 1

2C0-16351-00-00

Unavailable

14

SPRING, COMPRESSION

90501-220A2-00

Unavailable

15

SCREW, WITH WASHER

90159-06024-00

Unavailable

16

PLATE, SEAT

2C0-16384-00-00

Unavailable

17

SPRING

2S3-16539-01-00

Unavailable

18

ROD, PUSH 1

2C0-16356-00-00

Unavailable

19

PLATE, THRUST 2

2C0-16164-00-00

Unavailable

20

PLATE, THRUST 2

1AE-16164-00-00

Unavailable

21

COLLAR

90387-25024-00

Unavailable

22

BEARING, CYLINDRICAL(1FN)

93310-340N8-00

Unavailable

23

NUT, LOCK

2C0-16377-00-00

Unavailable

24

BEARING

93317-11096-00

Unavailable

25

BEARING

93315-21570-00

Unavailable

26

OIL SEAL (3X3)

93102-15212-00

Unavailable

27

AXLE, PUSH LEVER

2C0-16382-00-00

Unavailable

28

WASHER(6TA)

92907-08600-00

Unavailable

29

CIRCLIP

99080-07600-00

$2.82

30

PUSH LEVER ASSY

2C0-16340-00-00

Unavailable

31

WASHER, PLATE

90201-10029-00

Unavailable

32

CIRCLIP(10W)

99009-10400-00

Unavailable

33

SPRING, TORSION

90508-16052-00

Unavailable
