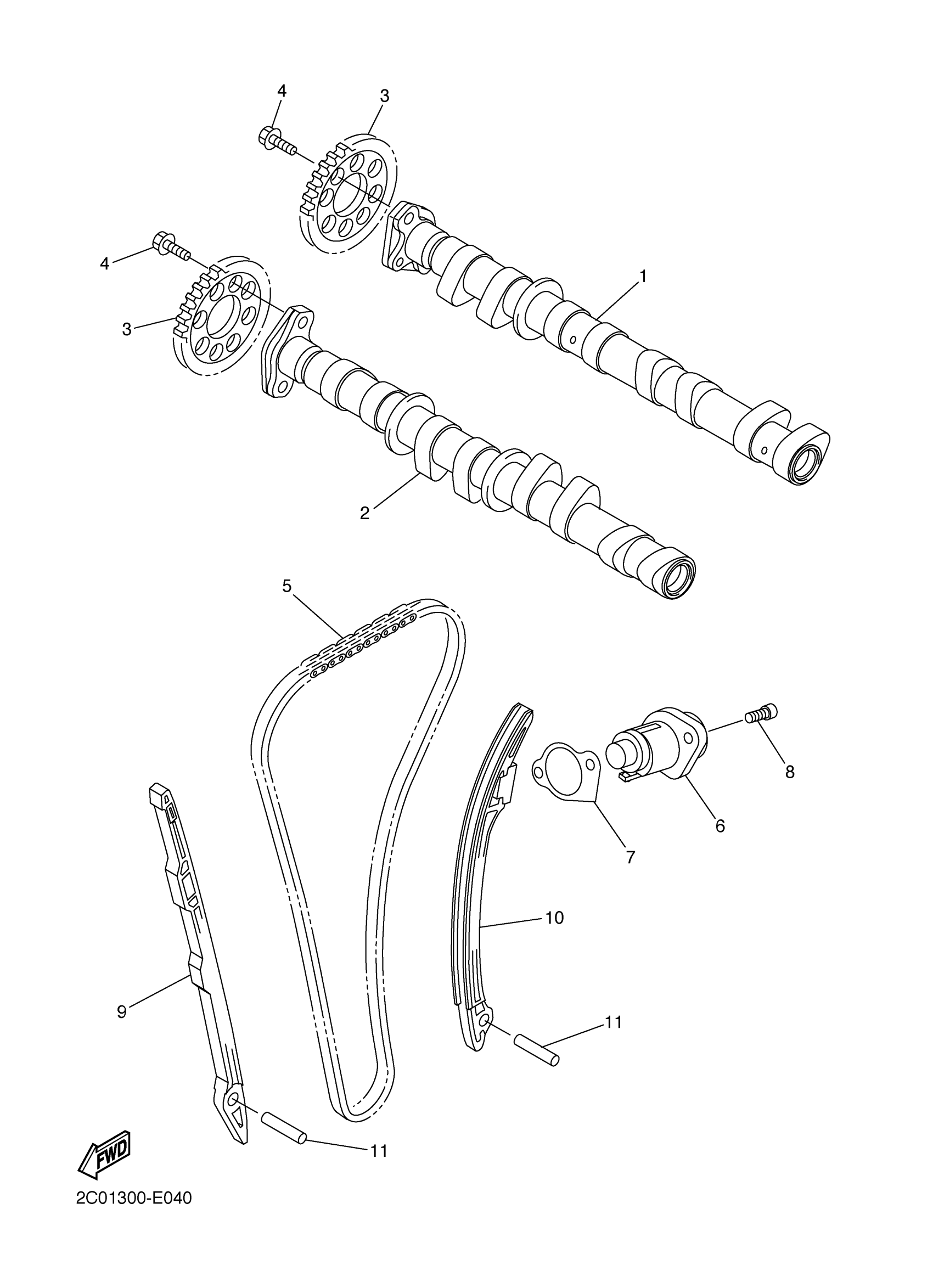

Yamaha YZFR6BW (YZFR6) 1JSD 2012 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

13S-12170-01-00

$424.99

2

CAMSHAFT ASSY 2

13S-12180-01-00

$424.99

3

SPROCKET, CAM CHAI

BAT-12176-00-00

$57.99

4

BOLT, FLANGE

90105-07004-00

$5.60

5

CHAIN

94591-64118-00

$69.99

6

TENSIONER ASSY, CA

13S-12210-02-00

Unavailable

7

GASKET, TENSIONER CASE

2C0-12213-00-00

$7.99

8

BOLT, HEXAGON SOCKET HEAD

90110-06106-00

$8.49

9

DAMPER, CHAIN 1

2C0-12251-00-00

$35.99

10

DAMPER, CHAIN 2

13S-12252-00-00

$101.99

11

PIN, DOWEL

93607-44002-00

$4.67
