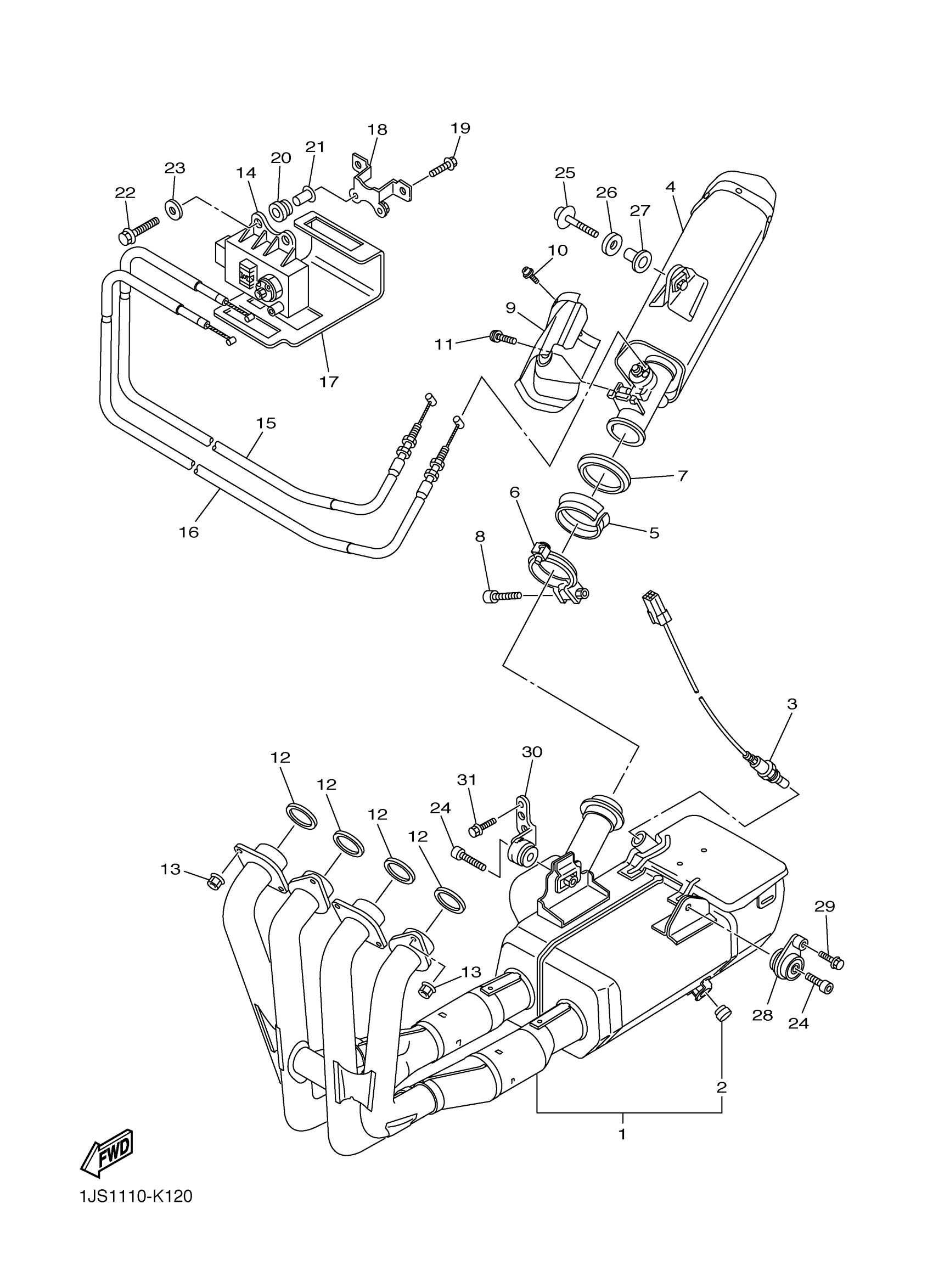

Yamaha YZFR6BL (YZFR6) 1JSA0 2012 EXHAUST Diagram
#
Description
Price
1
EXHAUST PIPE ASSY 1
13S-14610-30-00
Unavailable
2
DAMPER, LOCATING 1
4FM-24181-00-00
Unavailable
14
SERVO MOTOR ASSY
2C0-85820-00-00
Unavailable
15
CABLE, PULLEY 1
13S-1133E-01-00
Unavailable
16
CABLE, PULLEY 2
13S-1133F-01-00
Unavailable
17
COVER
2C0-2177F-00-00
Unavailable
18
BRACKET 7
2C0-2116J-00-00
Unavailable
19
BOLT, SMALL FLANGE
95027-06025-00
Unavailable
20
GROMMET
90480-14005-00
Unavailable
21
COLLAR
90387-06158-00
Unavailable
22
BOLT, FLANGE
95817-06014-00
Unavailable
23
WASHER, PLATE
90201-06M31-00
Unavailable
24
BOLT, SOCKET
91314-08035-00
Unavailable
25
BOLT, HEXAGON SOCKET HEAD
90110-08099-00
Unavailable
26
WASHER, PLATE(3DM)
90201-087G2-00
Unavailable
27
COLLAR
90387-08021-00
Unavailable
28
STAY, MUFFLER 2
13S-21446-00-00
Unavailable
29
BOLT, FLANGE
90105-08054-00
Unavailable
30
STAY, MUFFLER 1
13S-21445-00-00
Unavailable
31
BOLT, FLANGE
95812-08020-00
Unavailable
