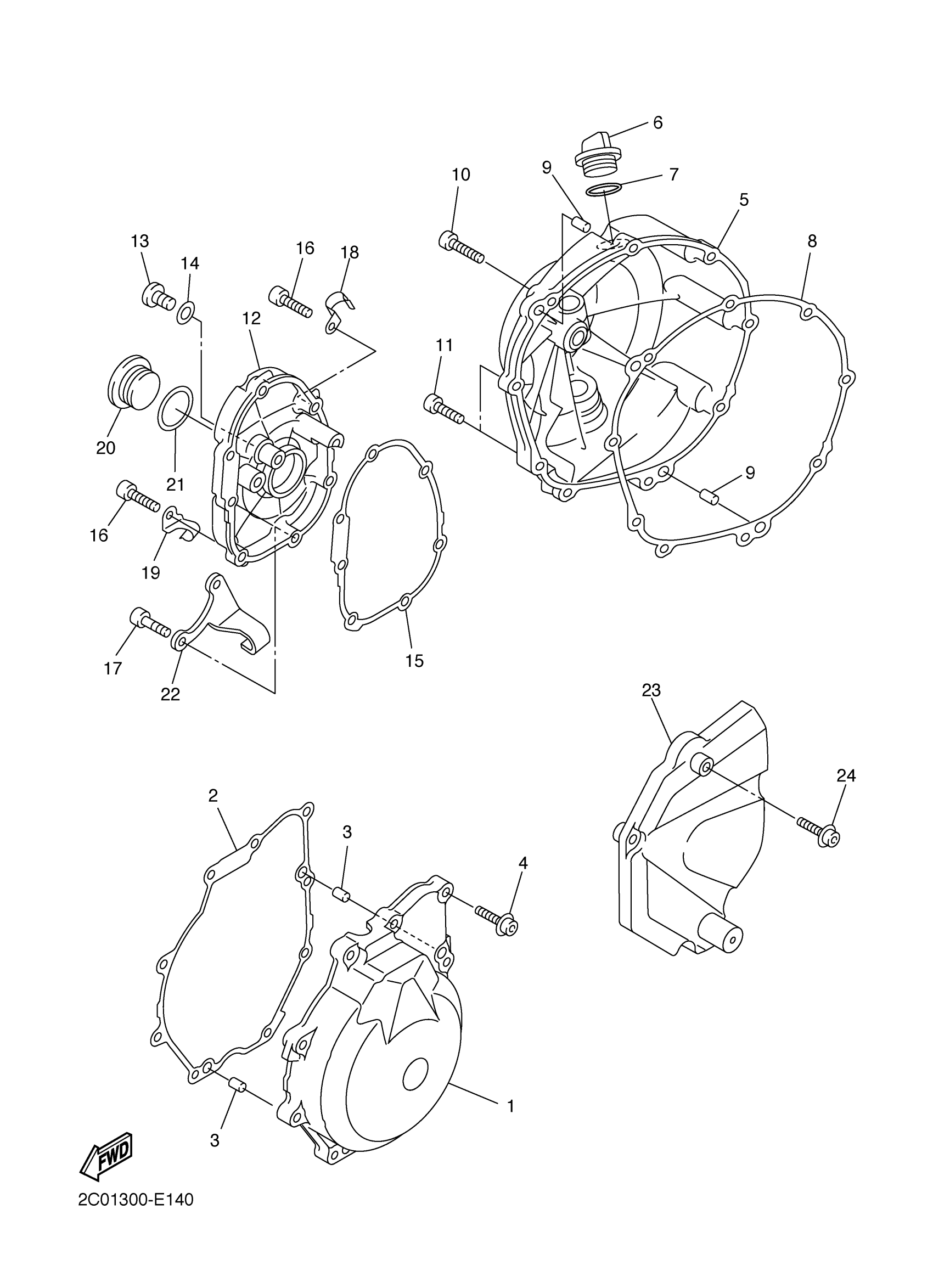

Yamaha YZFR6BL (YZFR6) 1JSA0 2012 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

2C0-15411-01-00

$152.99

2

GASKET, CRANKCASE COVER 1

2C0-15451-01-00

$18.49

3

PIN, DOWEL

99530-08012-00

Unavailable

4

BOLT, HEXAGON SOCKET HEAD

90110-06387-00

$4.29

5

COVER, CRANKCASE 2

2C0-15421-00-00

Unavailable

6

PLUG, OIL LEVEL

BAT-15362-00-00

$20.99

7

O-RING(1KT)

93210-27778-00

$8.49

8

GASKET, CRANKCASE COVER 2

2C0-15461-01-00

$28.99

9

PIN, DOWEL

93608-17263-00

$2.92

10

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$5.60

11

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$5.60

12

COVER, OIL PUMP

2C0-15416-00-00

$164.99

13

BOLT, BUTTON HEAD

92014-08014-00

$8.49

14

. GASKET

90430-08143-00

Unavailable

15

GASKET, OIL PUMP COVER 1

2C0-15456-01-00

$17.49

16

BOLT, HEXAGON SOCKET HEAD

90110-06331-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

90110-06387-00

$4.29

18

CLAMP

90465-08395-00

Unavailable

19

CLAMP, HOSE

2C0-21823-00-00

Unavailable

20

PLUG, STRAIGHT SCREW

90340-32004-00

Unavailable

21

O-RING (341)

93210-32172-00

Unavailable

22

HOLDER, CLUTCH CABLE

2C0-15441-00-00

Unavailable

23

COVER, CHAIN CASE

2C0-15418-00-00

Unavailable

24

BOLT

90109-06015-00

Unavailable
