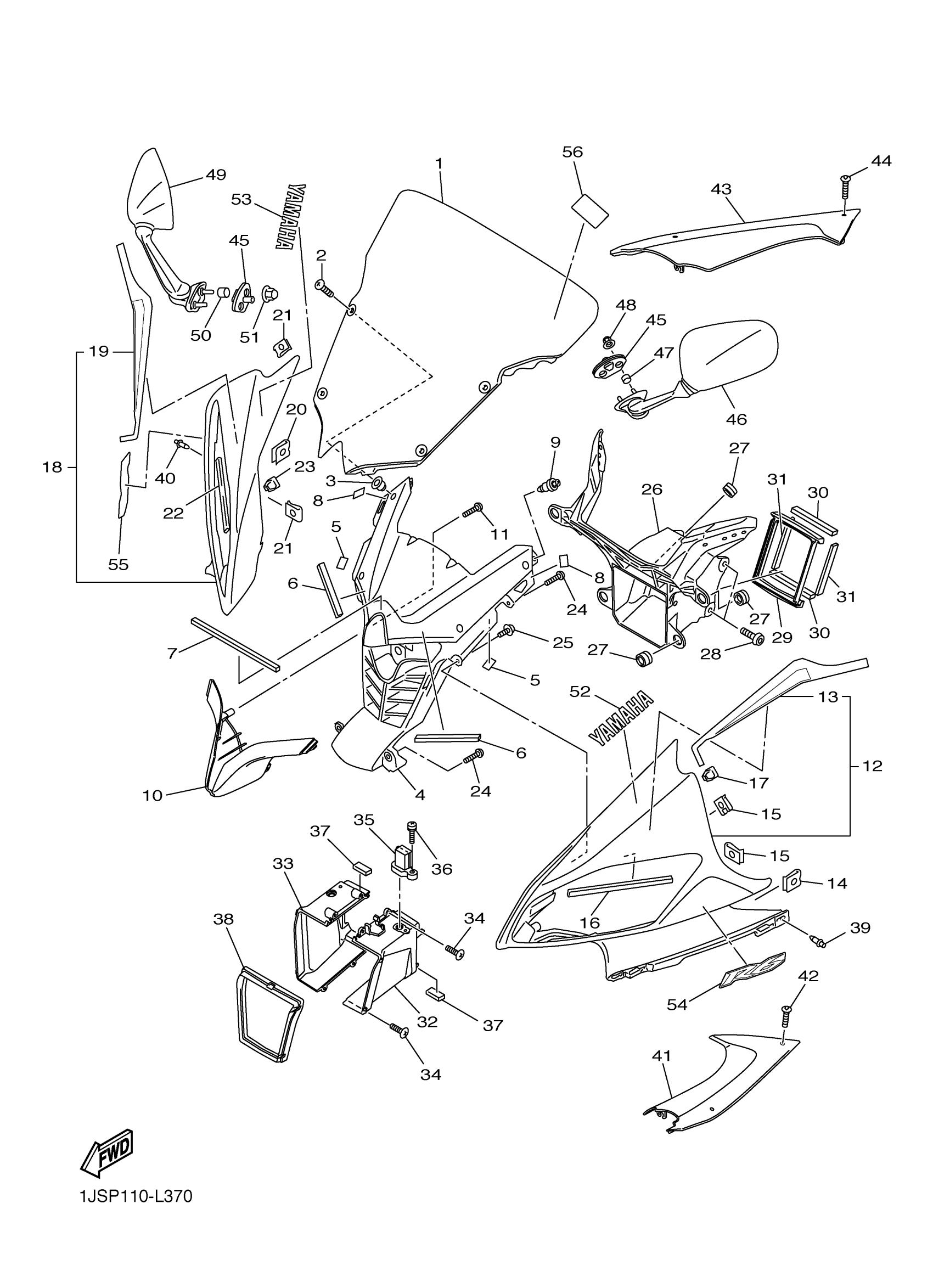

Yamaha YZFR6BGP (YZFR6 WORLD GP 50TH ANNIVERSARY) 1JSP 2012 COWLING 1 Diagram

#

Description
Price

1

WINDSHIELD

13S-28381-10-00

$99.99

2

SCREW, ROUND HEAD(1UX)

90150-05023-00

$4.19

3

NUT(1KT)

90179-05523-00

$8.49

4

PANEL, INNER 1

13S-2836K-00-00

Unavailable

5

DAMPER 1

3P6-28217-00-00

$7.99

6

DAMPER 2

13S-28227-00-00

$6.99

7

DAMPER 3

13S-28237-00-00

$7.99

8

DAMPER

13S-28371-00-00

$6.99

9

RIVET

90269-06001-00

$5.60

10

COVER

13S-28365-10-00

$16.49

11

SCREW, TRUSS TAP.

97707-40016-00

$8.49

12

BODY, FRONT UPPER 1

13S-Y280G-00-0X

$295.99

13

GRAPHIC, 15

13S-2832B-F0-00

Unavailable

14

NUT, SPRING

90183-050A6-00

$8.49

15

NUT, SPRING(1YT)

90183-05042-00

$5.60

16

DAMPER, 4

2C0-28455-00-00

Unavailable

17

GROMMET(4TV)

90480-01605-00

Unavailable

18

BODY, FRONT UPPER 2

13S-Y280H-00-0X

Unavailable

19

GRAPHIC, 16

13S-2832C-F0-00

Unavailable

20

NUT, SPRING

90183-050A6-00

$8.49

21

NUT, SPRING(1YT)

90183-05042-00

$5.60

22

DAMPER, 4

2C0-28455-00-00

Unavailable

23

GROMMET(4TV)

90480-01605-00

Unavailable

24

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

25

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

26

STAY 1

13S-28356-00-00

Unavailable

27

DAMPER

4XV-83513-00-00

Unavailable

28

BOLT,HEX. SOCKET BUTTON

90111-06116-00

Unavailable

29

JOINT

2C0-28342-02-00

Unavailable

30

DAMPER 1

2C0-28217-00-00

Unavailable

31

DAMPER 2

2C0-28227-00-00

Unavailable

32

DUCT 2

13S-2838R-01-00

Unavailable

33

DUCT 3

13S-2838T-01-00

Unavailable

34

SCREW, TRUSS TAP.

97707-40016-00

$8.49

35

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

Unavailable

36

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

Unavailable

37

DAMPER 2

51Y-21639-00-00

Unavailable

38

DAMPER

2C0-28371-00-00

Unavailable

39

RIVET

90269-06008-00

Unavailable

40

RIVET

90269-06008-00

Unavailable

41

PANEL, CONSOLE 1

13S-2837L-00-00

Unavailable

42

BOLT,HEX. SOCKET BUTTON

90111-05021-00

Unavailable

43

PANEL, CONSOLE 2

13S-2837M-00-00

Unavailable

44

BOLT,HEX. SOCKET BUTTON

90111-05021-00

Unavailable

45

PLATE, MIRROR FITTING 1

13S-26298-00-00

Unavailable

46

REAR VIEW MIRROR ASSY (LEFT)

13S-26280-10-00

Unavailable

47

COLLAR(J45)

90387-064T3-00

Unavailable

48

NUT, CROWN

90176-06008-00

Unavailable

49

REAR VIEW MIRROR ASSY (RIGHT)

13S-26290-10-00

Unavailable

50

COLLAR(J45)

90387-064T3-00

Unavailable

51

NUT, CROWN

90176-06008-00

Unavailable

52

EMBLEM, YAMAHA

99241-00100-00

Unavailable

53

EMBLEM, YAMAHA

99241-00100-00

Unavailable

54

EMBLEM

1JS-28328-30-00

Unavailable

55

EMBLEM

1JS-28328-30-00

Unavailable

56

LABEL, NOTICE WINDSHIELD 1

4B5-2815K-00-00

Unavailable
