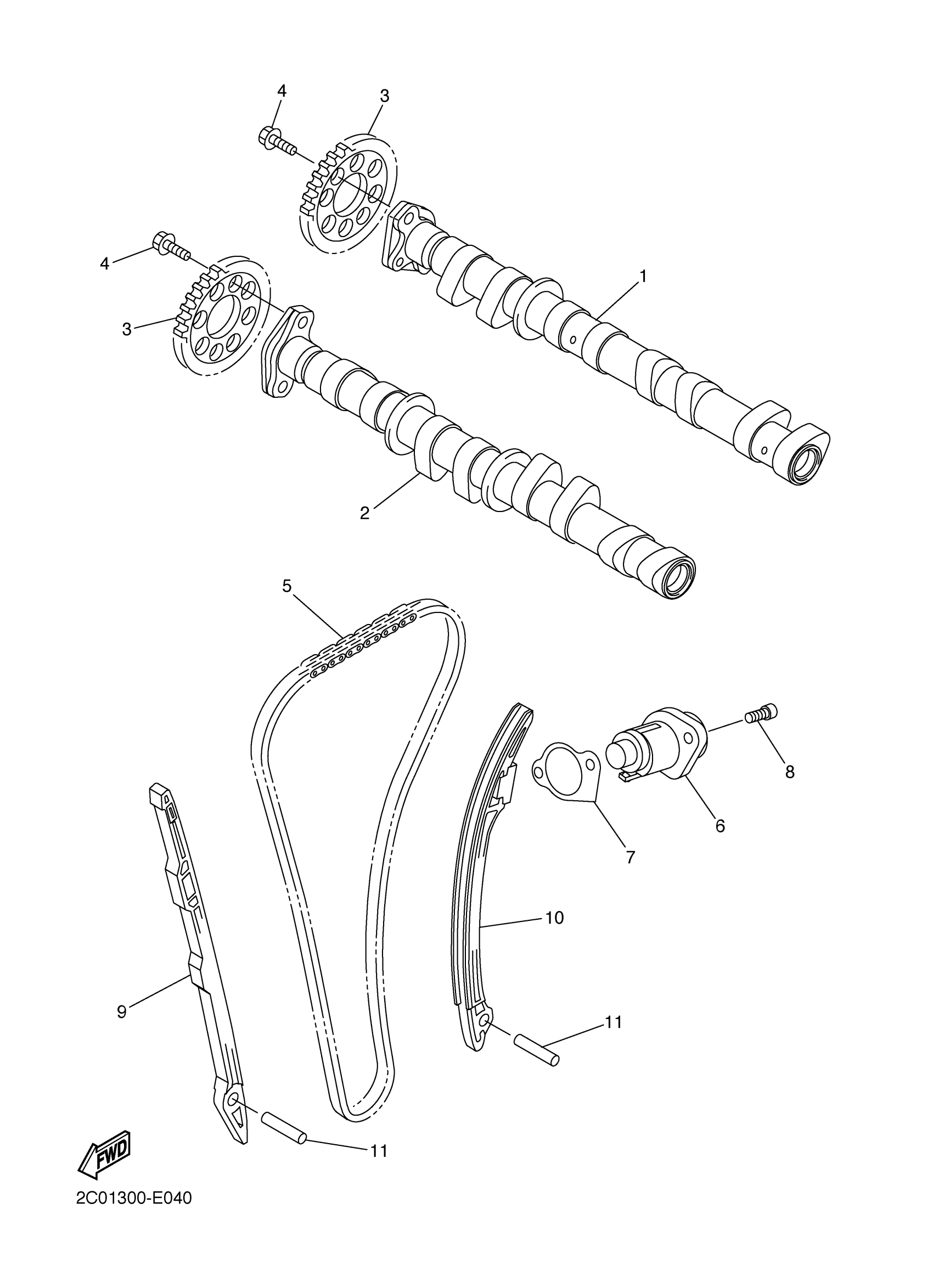

Yamaha YZFR6BGP (YZFR6 WORLD GP 50TH ANNIVERSARY) 1JSP 2012 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

13S-12170-01-00

$398.97

2

CAMSHAFT ASSY 2

13S-12180-01-00

$398.88

3

SPROCKET, CAM CHAI

BAT-12176-00-00

$50.03

4

BOLT, FLANGE

90105-07004-00

$4.66

5

CHAIN

94591-64118-00

$57.35

6

TENSIONER ASSY, CA

13S-12210-02-00

Unavailable

7

GASKET, TENSIONER CASE

2C0-12213-00-00

$6.45

8

BOLT, HEXAGON SOCKET HEAD

90110-06106-00

$5.90

9

DAMPER, CHAIN 1

2C0-12251-00-00

$28.80

10

DAMPER, CHAIN 2

13S-12252-00-00

$84.35

11

PIN, DOWEL

93607-44002-00

$3.95
