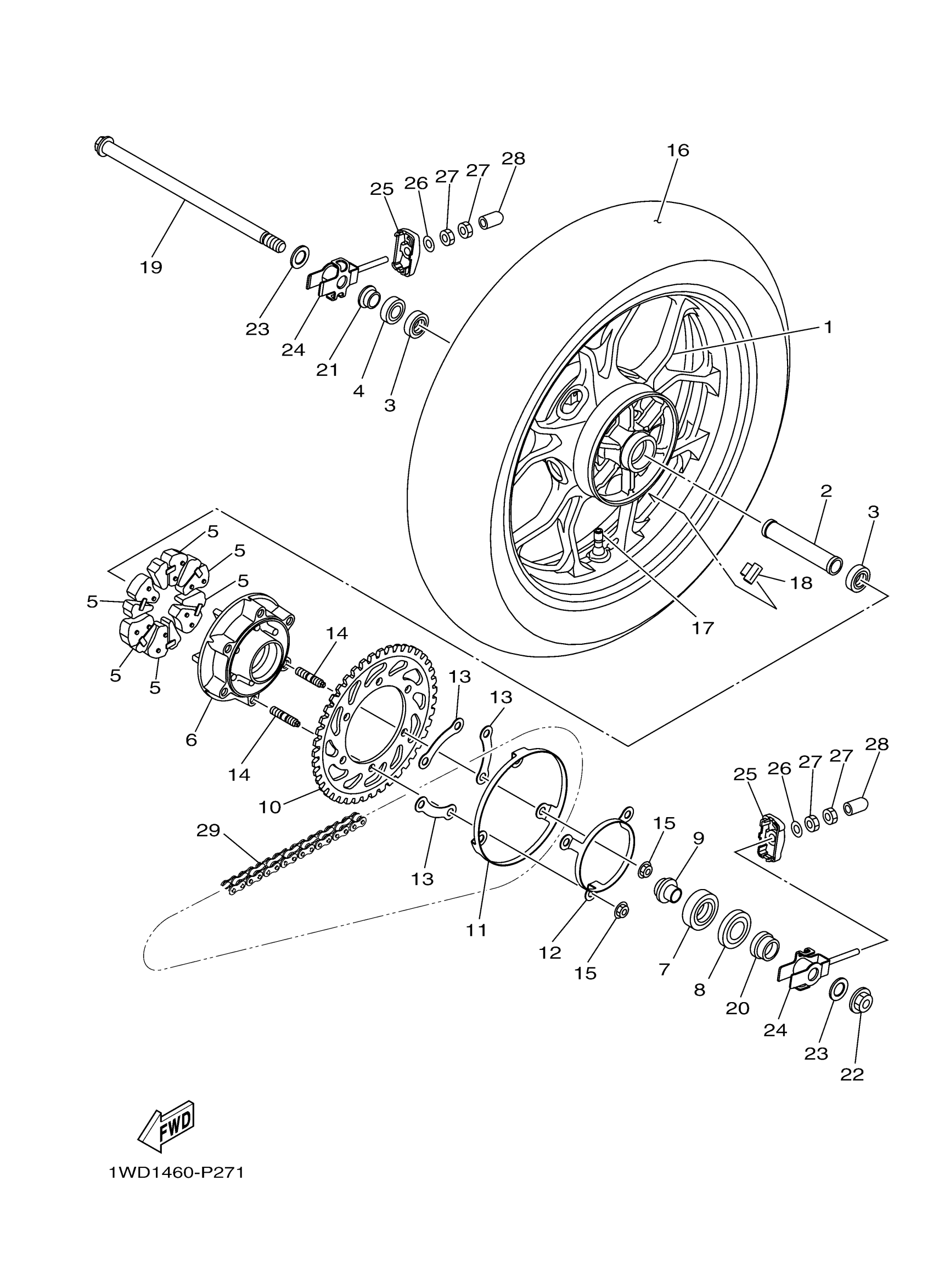

Yamaha YZFR3LL (YZFR3) B8P3 2020 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

1WD-F5338-03-P0

Unavailable

2

COLLAR

90387-17810-00

$12.49

3

BEARING (10H)

93306-20314-00

$32.99

4

OIL SEAL

93106-23002-00

$5.60

5

DAMPER

1WD-F5364-00-00

$10.49

6

CLUTCH, HUB

1WD-F5366-00-P0

Unavailable

7

BEARING

93306-30450-00

$100.99

8

OIL SEAL

93106-38046-00

$16.99

9

COLLAR, WHEEL

1WD-F5377-00-00

$7.49

10

SPROCKET, DRIVEN (43T)

1WD-F5443-00-00

$61.99

11

BRACKET 1

1WD-F537W-00-00

$34.99

12

BRKT 2

1WD-F537X-00-00

$8.99

13

PLATE 1

1WD-F539F-00-00

$2.44

14

BOLT, STUD

90116-10065-00

$7.49

15

NUT, S/L FLANGE

95602-10200-00

$4.82

16

TIRE (140/70R17 M/C 66H)

94114-17814-00

Unavailable

17

VALVE, RIM (TR413)939000002200

93900-00828-00

Unavailable

18

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

18

BALANCER, WHEEL

5MT-25398-10-00

Unavailable

18

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

19

AXLE, WHEEL

1WD-25381-00-00

Unavailable

20

COLLAR, SPROCKET AXLE

1WD-F5386-01-00

Unavailable

21

COLLAR, WHEEL

1WD-F5383-01-00

Unavailable

22

NUT, SELF-LOCKING

95602-16200-00

Unavailable

23

WASHER, PLATE

90201-17809-00

Unavailable

24

PULLER, CHAIN 1

1WD-F5388-00-00

Unavailable

25

END 1

1WD-F2174-00-00

Unavailable

26

.. WASHER, PLATE

92990-08600-00

Unavailable

27

NUT

95302-08600-00

Unavailable

28

PIPE, DRAIN 2

40D-E443G-00-00

Unavailable

29

SET, CHAIN (DID520

94A40-27112-00

Unavailable
