Description

Price

1

MASTER CYLINDER SUB ASSY

1WD-F5870-00-00

Unavailable

2

CYLINDER KIT, MASTER

1WD-F5807-00-00

Unavailable

3

. DIAPHRAGM, RESERVOIR

5RB-25854-00-00

Unavailable

4

CAP, RESERVOIR

1WD-F5852-00-00

$7.49

5

SCREW, FLAT

98707-04012-00

$2.18

6

BRACKET, MASTER CYLINDER

56A-25867-00-00

$28.99

7

BUSH,DIAPHRAGM

3C1-F5855-00-00

$0.43

8

LEVER 2

1WD-H3922-00-00

$9.49

9

NUT, SELF-LOCKING

95617-06100-00

$8.49

10

BOLT (4L0)

90109-06577-00

$5.60

11

FRONT STOP SWITCH

2DP-H3980-01-00

$12.49

12

SCREW, PAN HEAD WITH WASHER

97602-04216-00

Unavailable

13

BOLT, SMALL FLANGE

95027-06025-00

$4.16

14

PLUG (341-26329-00)

90338-09012-00

$9.49

15

HOSE, BRAKE 1

BS7-F5872-00-00

$128.99

16

BOLT, UNION(3GM)

90401-10159-00

Unavailable

17

WASHER, PLATE(481)

90201-10118-00

Unavailable

18

HOLDER, BRAKE HOSE 1

BS7-F5875-00-00

Unavailable

19

COVER, STEERING

BS7-F3818-00-00

Unavailable

20

RIVET

90269-06816-00

Unavailable

21

NUT, FLANGE

95702-06500-00

Unavailable

22

NUT, CROWN(2GM)

90176-06065-00

Unavailable

23

HOLDER, BRAKE HOSE

BS7-F587A-00-00

Unavailable

24

HOLDER, BRAKE HOSE

BS7-F5887-00-00

Unavailable

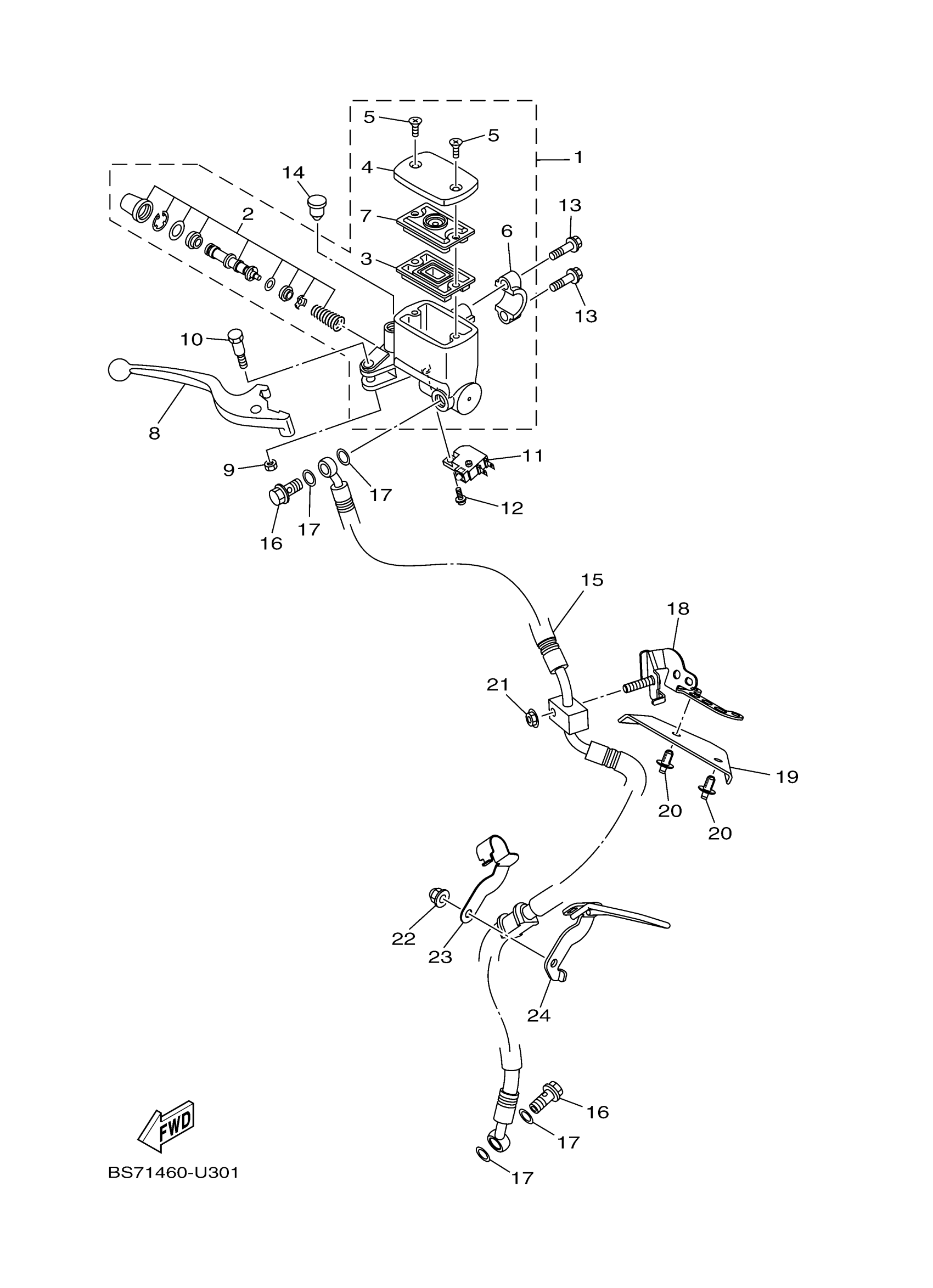

Yamaha YZFR3LL (YZFR3) B8P3 2020 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER SUB ASSY

CYLINDER KIT, MASTER

. DIAPHRAGM, RESERVOIR

CAP, RESERVOIR

SCREW, FLAT

BRACKET, MASTER CYLINDER

BUSH,DIAPHRAGM

LEVER 2

NUT, SELF-LOCKING

BOLT (4L0)

FRONT STOP SWITCH

SCREW, PAN HEAD WITH WASHER

BOLT, SMALL FLANGE

PLUG (341-26329-00)

HOSE, BRAKE 1

BOLT, UNION(3GM)

WASHER, PLATE(481)

HOLDER, BRAKE HOSE 1

COVER, STEERING

RIVET

NUT, FLANGE

NUT, CROWN(2GM)

HOLDER, BRAKE HOSE

HOLDER, BRAKE HOSE
