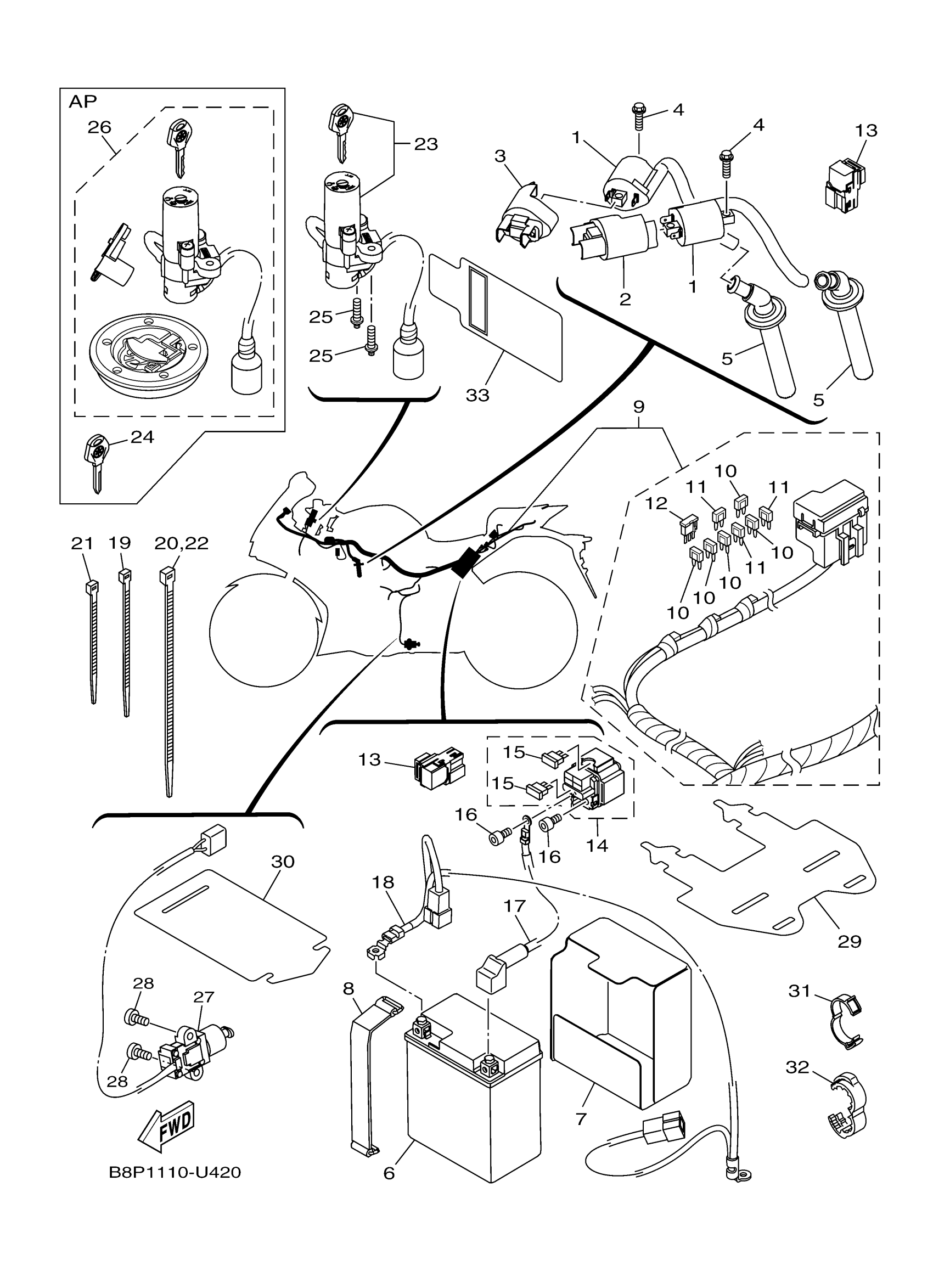

Yamaha YZFR3LL (YZFR3) B8P3 2020 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

1WD-H2310-02-00

$18.49

2

COVER, IGNITION COIL

B04-H2314-00-00

$10.49

3

COVER, IGNITION COIL

B04-H2314-10-00

$10.49

4

BOLT, FLANGE

95022-06020-00

$3.62

5

PLUG CAP ASSY

1WD-H2370-00-00

Unavailable

6

BATTERY (GSGTZ8V) "FA"

GTZ-8V000-00-00

Unavailable

7

PAD, BATTERY

1WD-H2121-00-00

$10.49

8

BAND, BATTERY

1WD-H2131-00-00

$8.49

9

WIRE HARNESS ASSY

B8P-H2590-00-00

$291.99

10

. FUSE (75A BL)

1WD-H2151-20-00

Unavailable

11

FUSE (15A-BL)

1WD-H2151-10-00

$9.49

12

DIODE ASSY

4B4-H1980-00-00

$30.99

13

RELAY ASSY

1WD-H1950-00-00

$43.99

14

STARTER RELAY ASSY

1WD-H1940-00-00

$34.99

15

FUSE

1WD-H2151-01-00

$0.52

16

BOLT

91312-05008-00

Unavailable

17

WIRE, PLUS LEAD

1WD-H2115-00-00

Unavailable

18

WIRE, MINUS LEAD

1WD-H2116-01-00

Unavailable

19

BAND

1UA-82591-00-00

Unavailable

20

CLAMP

90464-70800-00

Unavailable

21

CLAMP (5MX1)

90464-22800-00

Unavailable

22

CLAMP

90464-70800-00

Unavailable

23

MAIN SWITCH STEERING LOCK

BS7-H2501-00-00

Unavailable

24

BLANK KEY

1WD-H2511-09-00

Unavailable

25

BOLT

90109-06282-00

Unavailable

26

MAIN SW. STRG. LOCK SUB ASSY

BS7-XH250-00-00

Unavailable

27

SWITCH, SIDE STAND

1WD-H2566-02-00

Unavailable

28

BOLT, SOCKET

91317-05018-00

Unavailable

29

BAND

1WD-F179E-00-00

Unavailable

30

BAND

1WD-H2591-00-00

Unavailable

31

CLAMP

90464-26001-00

Unavailable

32

CLAMP

90464-13227-00

Unavailable

33

PROTECTER, WIRE HA

2D1-82589-02-00

Unavailable
