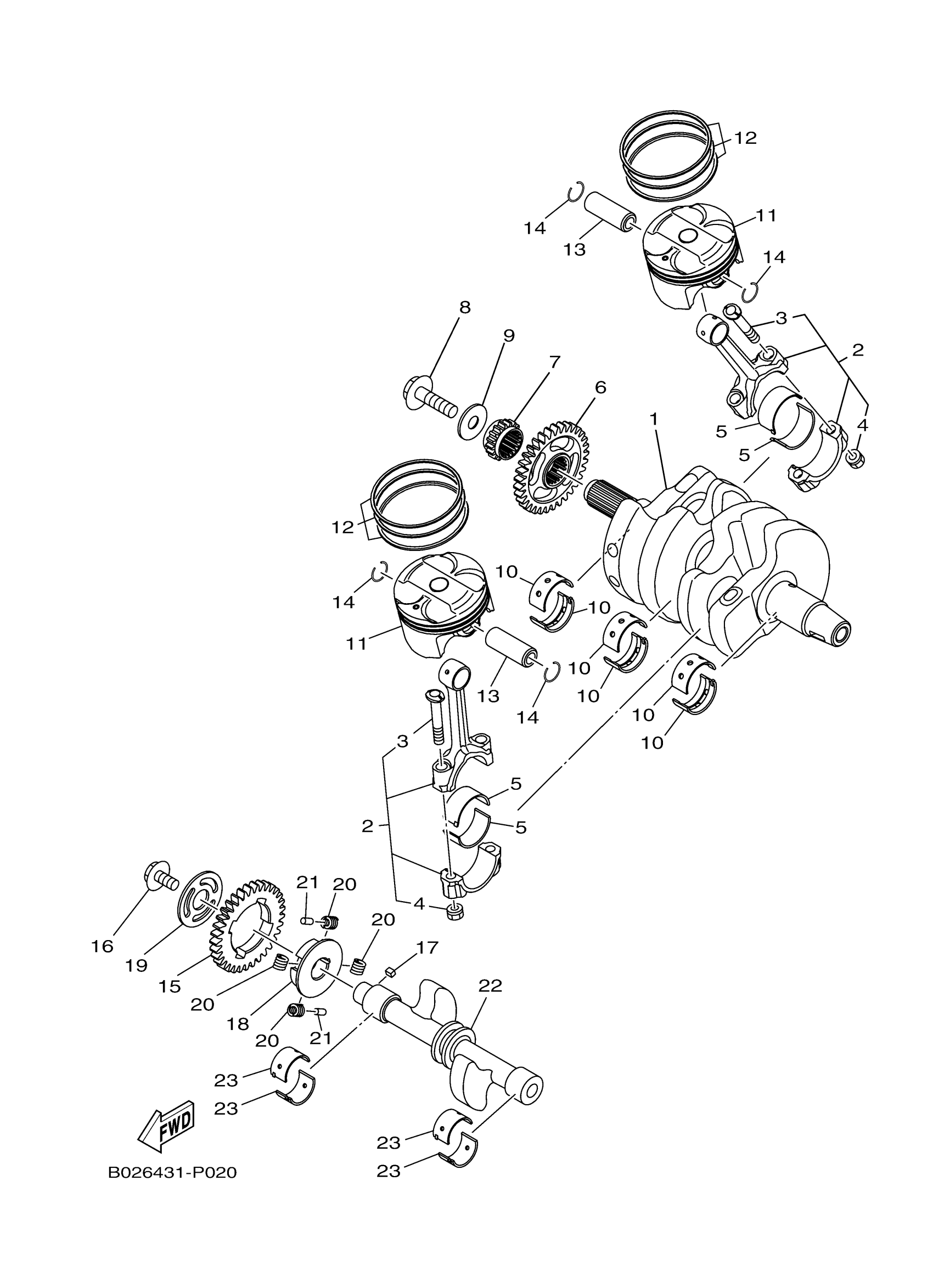

Yamaha YZFR3LL (YZFR3) B8P3 2020 CRANKSHAFT & PISTON Diagram

CRANKSHAFT

1WD-E1411-10-00

$441.99

CRANKSHAFT

1WD-E1411-10-00

$441.99

CONNECTING ROD ASSY

1WD-11650-00-00

$171.99

BOLT, CONNECTING ROD

5SL-11654-00-00

$12.99

NUT(4JH)

90179-07652-00

$9.49

PLANE BEARING, CONNECTING ROD

1WD-11656-00-00

$14.49

PLANE BEARING, CONNECTING ROD

1WD-11656-10-00

$15.49

PLANE BEARING, CONNECTING ROD

1WD-11656-20-00

$14.49

PLANE BEARING, CONNECTING ROD

1WD-11656-30-00

$14.49

GEAR, DRIVE

1WD-E1536-00-00

$57.99

SPROCKET, CAM CHAIN

1WD-E1549-00-00

Unavailable

BOLT, FLANGE

90105-10883-00

$42.99

WASHER, PLATE

90201-10848-00

Unavailable

PLANE BEARING, CRANKSHAFT 1

1WD-11416-00-00

$9.99

PLANE BEARING, CRANKSHAFT 1

1WD-11416-10-00

$9.99

PLANE BEARING, CRANKSHAFT 1

1WD-11416-20-00

Unavailable

PLANE BEARING, CRANKSHAFT 1

1WD-11416-30-00

Unavailable

PLANE BEARING, CRANKSHAFT 1

1WD-11416-40-00

Unavailable

PISTON (STD)

2MS-E1631-00-00

Unavailable

PISTON RING SET (STD)

BR5-E1603-00-00

Unavailable

PIN, PISTON

1WD-E1633-00-00

Unavailable

CIRCLIP (4G0)

93450-16068-00

Unavailable

GEAR, BALANCE WEIGHT

1WD-E1531-00-00

Unavailable

BOLT, FLANGE

90105-088F8-00

Unavailable

KEY, STRAIGHT (3R4)

90282-04036-00

Unavailable

BOSS, BUFFER

1WD-E1496-00-00

Unavailable

WASHER, PLATE

90201-16812-00

Unavailable

SPRING, COMPRESSION

90501-22800-00

Unavailable

PIN, DOWEL

93605-10090-00

Unavailable

WEIGHT 1

1WD-E1454-00-00

Unavailable

PLANE BEARING, BALANCE WEIGHT

1WD-11413-00-00

Unavailable

PLANE BEARING, BALANCE WEIGHT

1WD-11413-10-00

Unavailable

PLANE BEARING, BALANCE WEIGHT

1WD-11413-20-00

Unavailable

PLANE BEARING, BALANCE WEIGHT

1WD-11413-30-00

Unavailable

PLANE BEARING, BALANCE WEIGHT

1WD-11413-40-00

Unavailable
