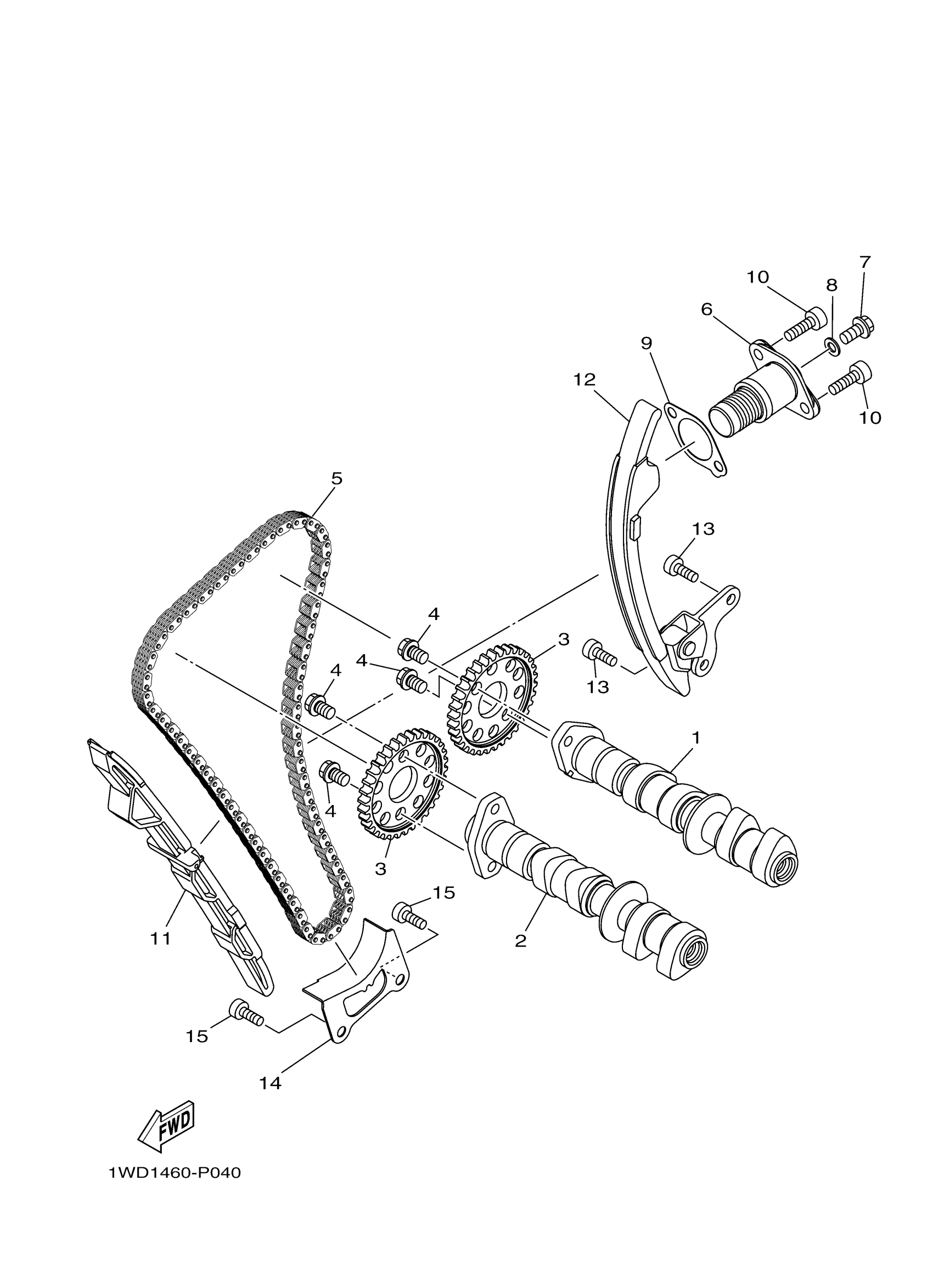

Yamaha YZFR3LL (YZFR3) B8P3 2020 CAMSHAFT & CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

2MS-E2170-01-00

$132.99

2

CAMSHAFT ASSY 2

2MS-E2180-01-00

$130.99

3

SPROCKET, CAM CHAIN

1WD-E2176-00-00

$57.99

4

BOLT, FLANGE

90105-07800-00

$4.57

5

CHAIN

94591-64118-00

$69.99

6

TENSIONER ASSY, CAM CHAIN

2MS-12210-00-00

Unavailable

7

BOLT, FLANGE

95022-06008-00

$8.49

8

GASKET 256113960000

90430-06014-00

Unavailable

9

GASKET, TENSIONER CASE

1WD-E2213-00-00

$2.18

10

BOLT

91332-06020-00

Unavailable

11

DAMPER, CHAIN 1

1WD-E2251-00-00

Unavailable

12

DAMPER, CHAIN 2

2MS-E2252-01-00

$207.99

13

BOLT,SOCKET

91317-06016-00

$1.25

14

COVER, CHAIN

1WD-E2256-00-00

$4.41

15

BOLT,SOCKET

91317-06016-00

$1.25
