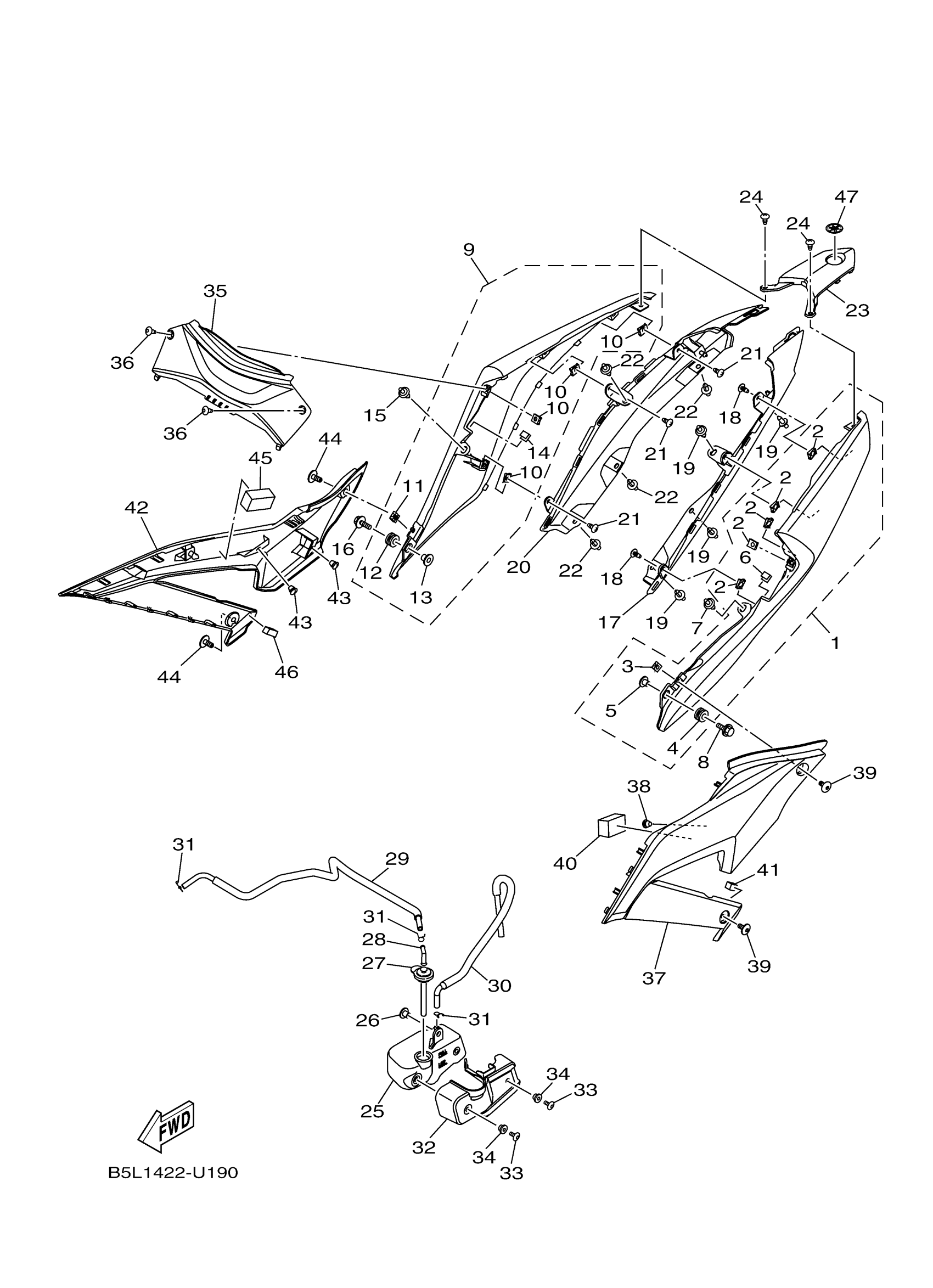

Yamaha YZFR3KL (YZFR3) B8P10 2019 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

1WD-XF171-10-P6

$45.99

2

NUT, SPRING(1YT)

90183-05042-00

$5.60

3

NUT, SPRING

90183-050A7-00

$3.50

4

GROMMET (3P91)

90480-12808-00

$2.29

5

COLLAR

90387-06899-00

$3.24

6

SEAL

31B-F8307-00-00

$2.19

7

RIVET

90269-06816-00

$4.31

8

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

9

COVER, SIDE 2

1WD-XF172-10-P6

Unavailable

10

NUT, SPRING(1YT)

90183-05042-00

$5.60

11

NUT, SPRING

90183-050A7-00

$3.50

12

GROMMET (3P91)

90480-12808-00

$2.29

13

COLLAR

90387-06899-00

$3.24

14

SEAL

31B-F8307-00-00

$2.19

15

RIVET

90269-06816-00

$4.31

16

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

17

MOLE, SIDE COVER 1

1WD-F171L-00-00

Unavailable

18

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

19

RIVET

90269-06816-00

$4.31

20

MOLE, SIDE COVER 2

1WD-F171M-00-00

Unavailable

21

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

22

RIVET

90269-06816-00

$4.31

23

MOLE, SIDE COVER 3

1WD-F171N-00-00

Unavailable

24

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

25

TANK, RECOVERY

1WD-F1871-01-00

Unavailable

26

COLLAR

90387-06857-00

Unavailable

27

CAP

1WD-F1875-02-00

Unavailable

28

ELBOW

26H-21828-00-00

Unavailable

29

PIPE 1

1WD-F1816-02-00

Unavailable

30

PIPE 2

1WD-F1817-00-00

Unavailable

31

CLIP 101235600

90467-08003-00

Unavailable

32

COVER

BS7-F172W-00-00

Unavailable

33

BOLT

90111-05003-00

Unavailable

34

SPACER (25G)

90560-06244-00

Unavailable

35

COVER, SIDE 3

1WD-F1731-00-P4

Unavailable

36

SCREW, ROUND TAPPING

90160-05810-00

Unavailable

37

COVER, SIDE 5

BS7-F171E-00-00

Unavailable

38

PLUG(1NL)

90338-07180-00

Unavailable

39

BOLT

90111-05003-00

Unavailable

40

DAMPER, PLATE

90520-30805-00

Unavailable

41

DAMPER, PLATE

90520-10850-00

Unavailable

42

COVER, SIDE 6

BS7-F171X-00-00

Unavailable

43

PLUG(1NL)

90338-07180-00

Unavailable

44

BOLT

90111-05003-00

Unavailable

45

DAMPER, PLATE

90520-30805-00

Unavailable

46

DAMPER, PLATE

90520-10850-00

Unavailable

47

TUNING FORK MARK

1PA-F836B-01-00

Unavailable
