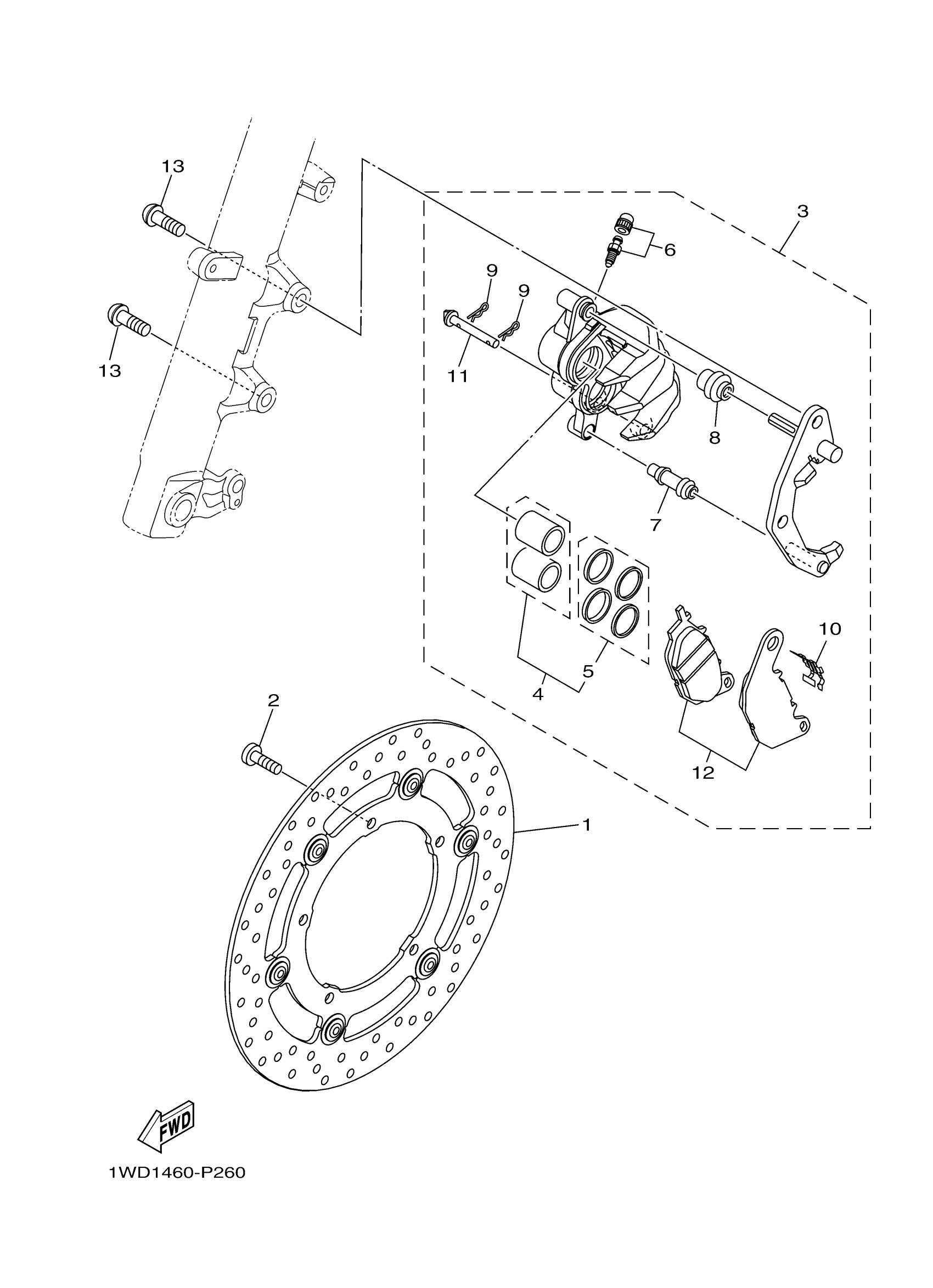

Yamaha YZFR3KL (YZFR3) B8P10 2019 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY (RIGHT)

1WD-F581U-01-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-08084-00

$5.60

3

CALIPER ASSY (RIGHT)

1WD-F580U-01-00

$174.99

4

PISTON ASSY, CALIPER

1WD-25802-00-00

Unavailable

5

CALIPER SEAL KIT

1WD-25803-00-00

Unavailable

6

BLEED SCREW KIT

15B-W0048-00-00

$19.99

7

BOOT 2

5YP-F5937-00-00

$3.40

8

BOOT, CALIPER

5YP-F5917-00-00

$3.24

9

CLIP

5YP-F5925-01-00

$0.54

10

SUPPORT, PAD

1WD-F5919-00-00

Unavailable

11

PIN, PAD

5YP-F5924-00-00

$1.82

12

BRAKE PAD KIT

1WD-25805-00-00

$59.99

13

SCREW (28D5)

90149-10804-00

$3.40
