Description

Price

1

HANDLEBAR (LEFT)

1WD-F6121-01-00

$56.99

2

BOLT, SOCKET

91317-08020-00

$8.49

3

BOLT,SOCKET

91317-06016-00

$1.25

4

PLUG

90338-05010-00

$8.49

5

HANDLEBAR (RIGHT)

1WD-F6122-00-00

$48.99

6

BOLT, SOCKET

91317-08020-00

$8.49

7

BOLT,SOCKET

91317-06016-00

$1.25

8

PLUG

90338-05010-00

$8.49

9

GRIP

2DP-F6241-00-00

$3.40

10

GRIP ASSY

1WD-F6240-00-00

Unavailable

11

WEIGHT

2MS-F622H-00-00

Unavailable

12

DAMPER, LOCATING 1

5YP-F622F-00-00

$2.18

13

STOPPER

1S7-F6257-00-00

$19.99

14

END, GRIP

1WD-F6246-00-00

$7.49

15

BOLT,SOCKET

91317-06020-00

Unavailable

16

CABLE, CLUTCH

1WD-F6335-00-00

Unavailable

17

GUIDE, CABLE 1

1WD-F6131-00-00

Unavailable

18

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

19

THROTTLE CABLE ASSY

1WD-F6301-00-00

Unavailable

20

SCREW, PAN

98517-05012-00

Unavailable

21

BOLT

91312-05010-00

Unavailable

22

GUIDE, CABLE 2

1WD-F6132-00-00

Unavailable

23

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

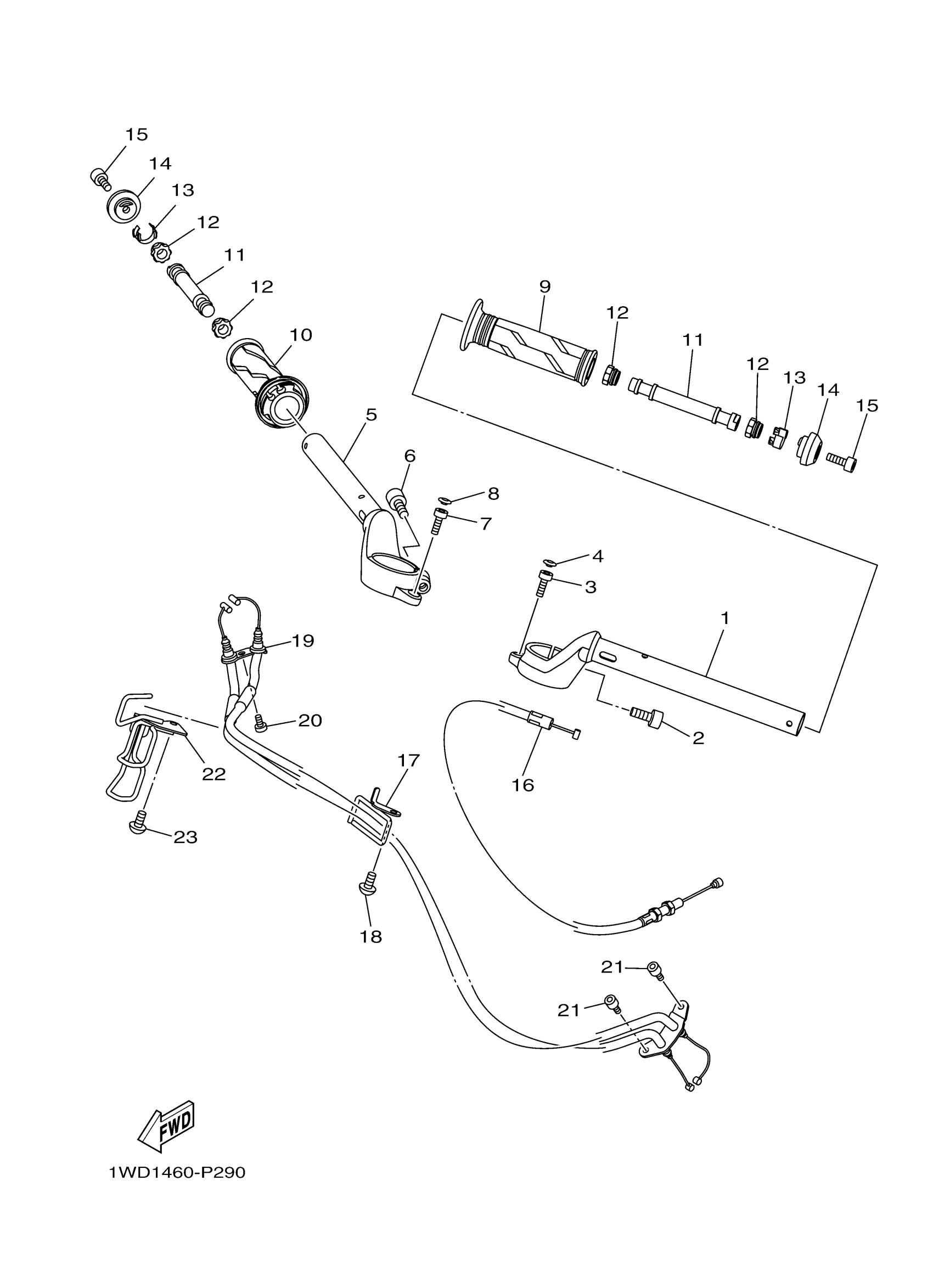

Yamaha YZFR3JL (YZFR3) 2MS70 2018 STEERING HANDLE CABLE Diagram

HANDLEBAR (LEFT)

BOLT, SOCKET

BOLT,SOCKET

PLUG

HANDLEBAR (RIGHT)

BOLT, SOCKET

BOLT,SOCKET

PLUG

GRIP

GRIP ASSY

WEIGHT

DAMPER, LOCATING 1

STOPPER

END, GRIP

BOLT,SOCKET

CABLE, CLUTCH

GUIDE, CABLE 1

BOLT, BUTTON HEAD

THROTTLE CABLE ASSY

SCREW, PAN

BOLT

GUIDE, CABLE 2

BOLT, BUTTON HEAD
