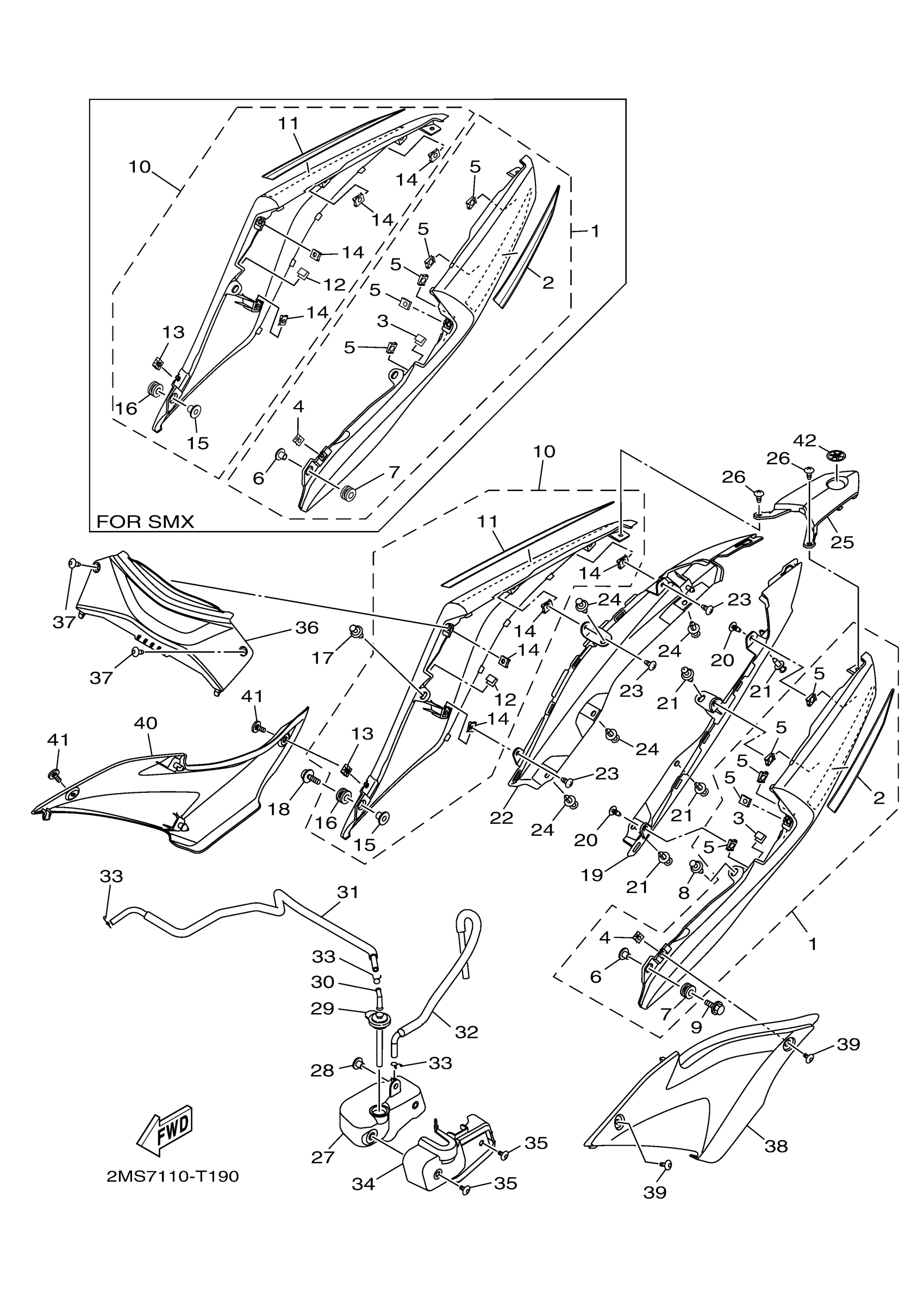

Yamaha YZFR3JL (YZFR3) 2MS70 2018 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

1WD-XF171-60-P0

Unavailable

2

GRAPHIC,1

1WD-F17F1-F1-00

$2.28

3

SEAL

31B-F8307-00-00

$2.19

4

NUT, SPRING

90183-050A7-00

$3.50

5

NUT, SPRING(1YT)

90183-05042-00

$5.60

6

COLLAR

90387-06899-00

$3.24

7

GROMMET (3P91)

90480-12808-00

$2.29

8

RIVET

90269-06081-00

$7.49

9

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

10

COVER, SIDE 2

1WD-XF172-60-P0

$44.99

11

GRAPHIC,2

1WD-F17F2-F1-00

$2.12

12

SEAL

31B-F8307-00-00

$2.19

13

NUT, SPRING

90183-050A7-00

$3.50

14

NUT, SPRING(1YT)

90183-05042-00

$5.60

15

COLLAR

90387-06899-00

$3.24

16

GROMMET (3P91)

90480-12808-00

$2.29

17

RIVET

90269-06081-00

$7.49

18

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

19

MOLE, SIDE COVER 1

1WD-F171L-00-00

Unavailable

20

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

21

RIVET

90269-06081-00

$7.49

22

MOLE, SIDE COVER 2

1WD-F171M-00-00

Unavailable

23

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

24

RIVET

90269-06081-00

$7.49

25

MOLE, SIDE COVER 3

1WD-F171N-00-00

Unavailable

26

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

27

TANK, RECOVERY

1WD-F1871-01-00

Unavailable

28

COLLAR

90387-06857-00

Unavailable

29

CAP

1WD-F1875-02-00

Unavailable

30

ELBOW

26H-21828-00-00

Unavailable

31

PIPE 1

1WD-F1816-02-00

Unavailable

32

PIPE 2

1WD-F1817-00-00

Unavailable

33

CLIP 101235600

90467-08003-00

Unavailable

34

COVER

1WD-F172W-00-00

Unavailable

35

BOLT

90111-05003-00

Unavailable

36

COVER, SIDE 3

1WD-F1731-00-P4

Unavailable

37

SCREW, ROUND TAPPING

90160-05810-00

Unavailable

38

COVER, SIDE 5

1WD-F171E-00-00

Unavailable

39

BOLT

90111-05003-00

Unavailable

40

COVER, SIDE 6

1WD-F171X-00-00

Unavailable

41

BOLT

90111-05003-00

Unavailable

42

TUNING FORK MARK

1PA-F836B-01-00

Unavailable
