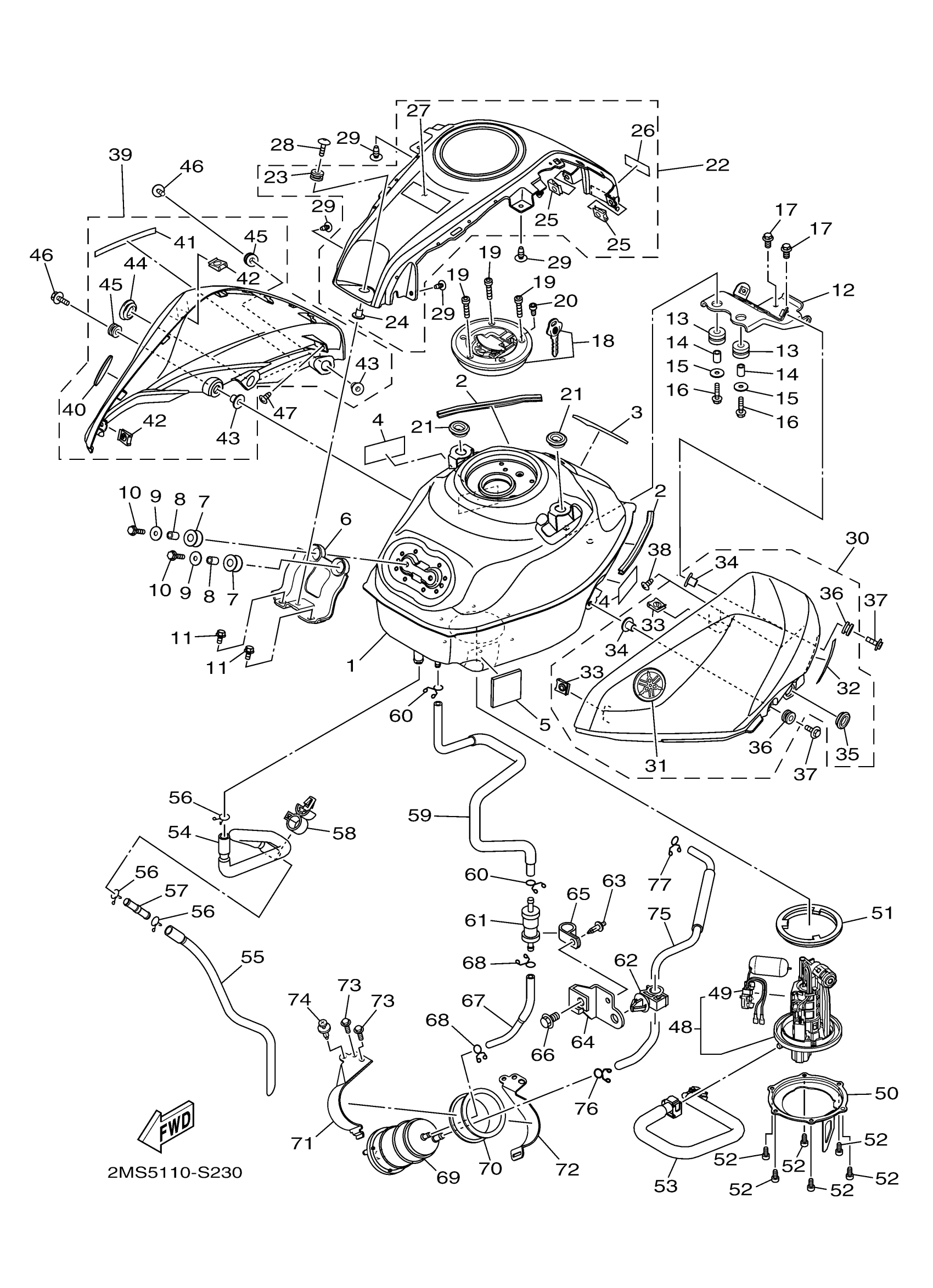

Yamaha YZFR3JL (YZFR3) 2MS70 2018 FUEL TANK Diagram
#
3
DAMPER, PLATE
90520-03823-00
Unavailable
5
DAMPER, PLATE 1
45P-F414H-00-00
Unavailable
7
GROMMET
1WD-F4339-00-00
Unavailable
12
BRACKET, FUEL TANK 1
1WD-F4191-00-00
Unavailable
13
GROMMET
90480-15807-00
Unavailable
17
BOLT, FLANGE
95022-08014-00
Unavailable
18
CAP ASSY
1WD-WF461-00-00
Unavailable
19
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
20
BOLT
91312-05010-00
Unavailable
21
GROMMET(4DN)
90480-01558-00
Unavailable
22
TANK SIDE COVER 1
1WD-XF41D-D0-P0
Unavailable
23
GROMMET (3P91)
90480-12808-00
Unavailable
24
COLLAR
90387-06899-00
Unavailable
25
NUT, SPRING(1YT)
90183-05042-00
Unavailable
26
SEAL
1WD-F414G-00-00
Unavailable
27
LABEL, CAUTION
1TP-2118K-A2-00
Unavailable
28
BOLT,HEX. SOCKET BUTTON
90111-06117-00
Unavailable
29
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
30
TANK SIDE COVER 1
1WD-XF41C-10-P0
Unavailable
31
EMBLEM
1WD-F413B-01-00
Unavailable
32
SEAL 2
1WD-F414E-00-00
Unavailable
33
NUT, SPRING(1YT)
90183-05042-00
Unavailable
34
COLLAR
90387-06899-00
Unavailable
35
GROMMET(4BH)
90480-01559-00
Unavailable
36
GROMMET (3P91)
90480-12808-00
Unavailable
37
BOLT, W/WASHER (3V2)
90119-05020-00
Unavailable
38
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
39
TANK SIDE COVER 2
1WD-XF413-10-P0
Unavailable
40
EMBLEM
1WD-F413B-01-00
Unavailable
41
SEAL 2
1WD-F414E-00-00
Unavailable
42
NUT, SPRING(1YT)
90183-05042-00
Unavailable
43
COLLAR
90387-06899-00
Unavailable
44
GROMMET(4BH)
90480-01559-00
Unavailable
45
GROMMET (3P91)
90480-12808-00
Unavailable
46
BOLT, W/WASHER (3V2)
90119-05020-00
Unavailable
47
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
48
FUEL PUMP COMP.
1WD-E3907-12-00
Unavailable
49
SENDER UNIT ASSY, FUEL METER
1WD-H5752-00-00
Unavailable
50
BRACKET, FUEL PUMP
1WD-F4491-00-00
Unavailable
51
O-RING
3C1-F4486-00-00
Unavailable
52
BOLT
91312-05010-00
Unavailable
53
PIPE, FUEL 1
1WD-E3971-02-00
Unavailable
54
PIPE 2
1WD-F4312-00-00
Unavailable
55
PIPE 4 (2YD6)
1WD-F4314-01-00
Unavailable
56
CLIP (806-24358-00)
90467-15012-00
Unavailable
57
PIPE, JOINT 1
1WD-F4376-00-00
Unavailable
58
CLAMP
90464-16012-00
Unavailable
59
PIPE 4
2MS-F4314-01-00
Unavailable
60
CLIP
90467-090A2-00
Unavailable
61
ROLL OVER VALVE ASSY
1DW-F4180-02-00
Unavailable
62
CLAMP
90464-10008-00
Unavailable
63
RIVET
90269-05008-00
Unavailable
64
BRACKET, CANISTOR
2MS-F419F-00-00
Unavailable
65
CLAMP
90464-15014-00
Unavailable
66
BOLT, SMALL FLANGE
95027-08012-00
Unavailable
67
PIPE 5 (2MS1)
2MS-F4315-00-00
Unavailable
68
CLIP
90467-090A2-00
Unavailable
69
CANISTER ASSY
2MS-F4170-00-00
Unavailable
70
BAND
2MS-F483H-00-00
Unavailable
71
BRACKET, CANISTER (2MS1)
2MS-F115R-00-00
Unavailable
72
BRACKET, CANISTER (2MS1)
2MS-F134X-00-00
Unavailable
73
BOLT, WASHER BASED(JA9)
90105-06696-00
Unavailable
74
RIVET
90269-06081-00
Unavailable
75
PIPE 6 (2MS1)
2MS-F4316-00-00
Unavailable
76
CLIP (8J7)
90467-11009-00
Unavailable
77
CLIP
90467-090A2-00
Unavailable
