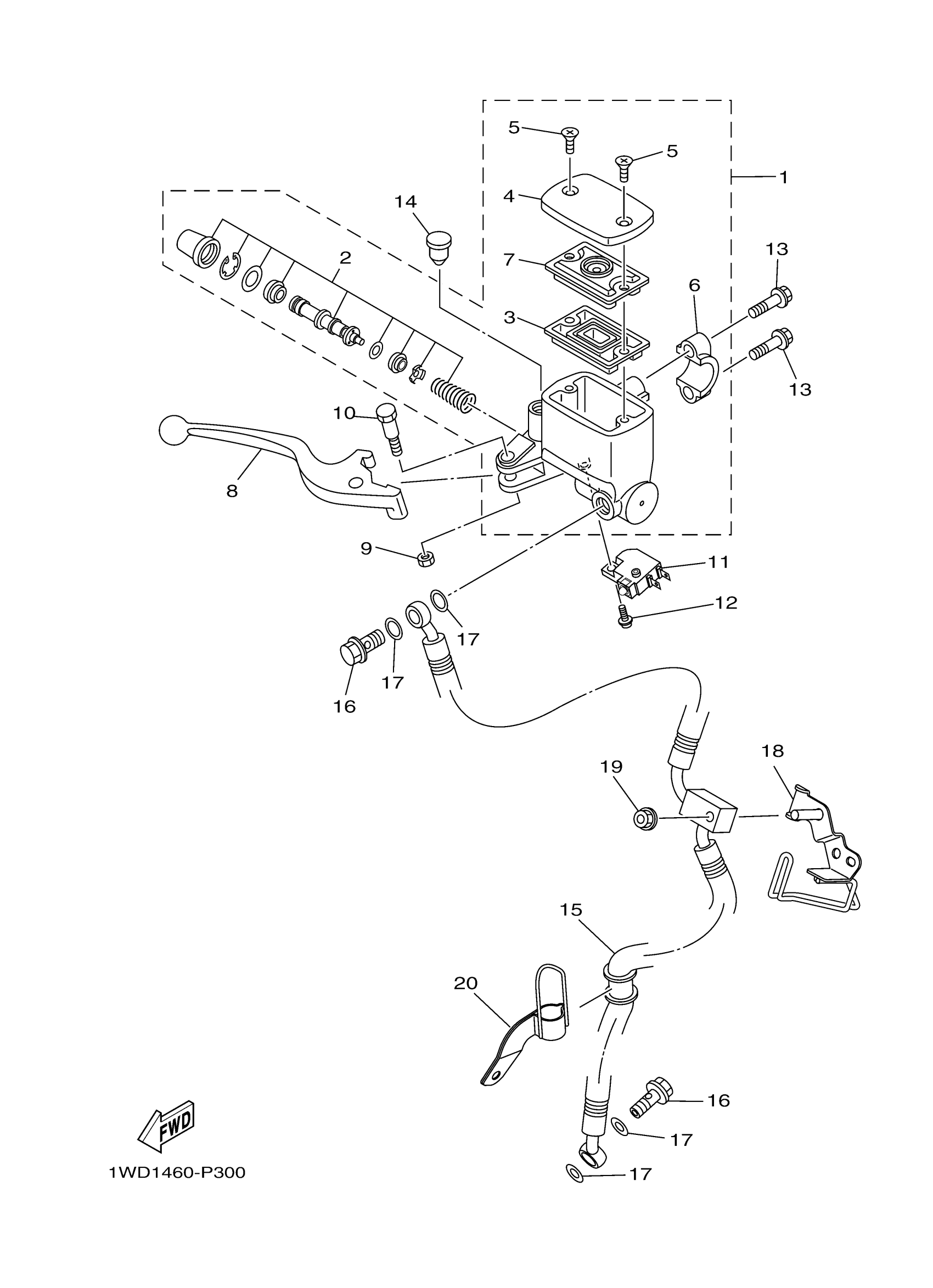

Yamaha YZFR3JL (YZFR3) 2MS70 2018 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

1WD-F5870-00-00

Unavailable

2

CYLINDER KIT, MASTER

1WD-F5807-00-00

Unavailable

3

. DIAPHRAGM, RESERVOIR

5RB-25854-00-00

$4.81

4

CAP, RESERVOIR

1WD-F5852-00-00

$5.97

5

SCREW, FLAT

98707-04012-00

$1.34

6

BRACKET, MASTER CYLINDER

56A-25867-00-00

$23.01

7

BUSH,DIAPHRAGM

3C1-F5855-00-00

$0.33

8

LEVER 2

1WD-H3922-00-00

$7.77

9

NUT, SELF-LOCKING

95617-06100-00

$2.17

10

BOLT (4L0)

90109-06577-00

$5.03

11

FRONT STOP SWITCH ASSY

1HP-83980-03-00

$28.77

12

SCREW, PAN HEAD WITH WASHER

97602-04216-00

$3.29

13

BOLT, SMALL FLANGE

95027-06025-00

$2.95

14

PLUG (341-26329-00)

90338-09012-00

$6.76

15

HOSE, BRAKE 1

1WD-F5872-00-00

$36.23

16

BOLT, UNION(3GM)

90401-10159-00

Unavailable

17

WASHER, PLATE(481)

90201-10118-00

Unavailable

18

HOLDER, BRAKE HOSE 1

1WD-F5875-00-00

Unavailable

19

NUT, FLANGE

95702-06500-00

Unavailable

20

HOLDER, BRAKE HOSE 2

1WD-F5876-00-00

$2.59
