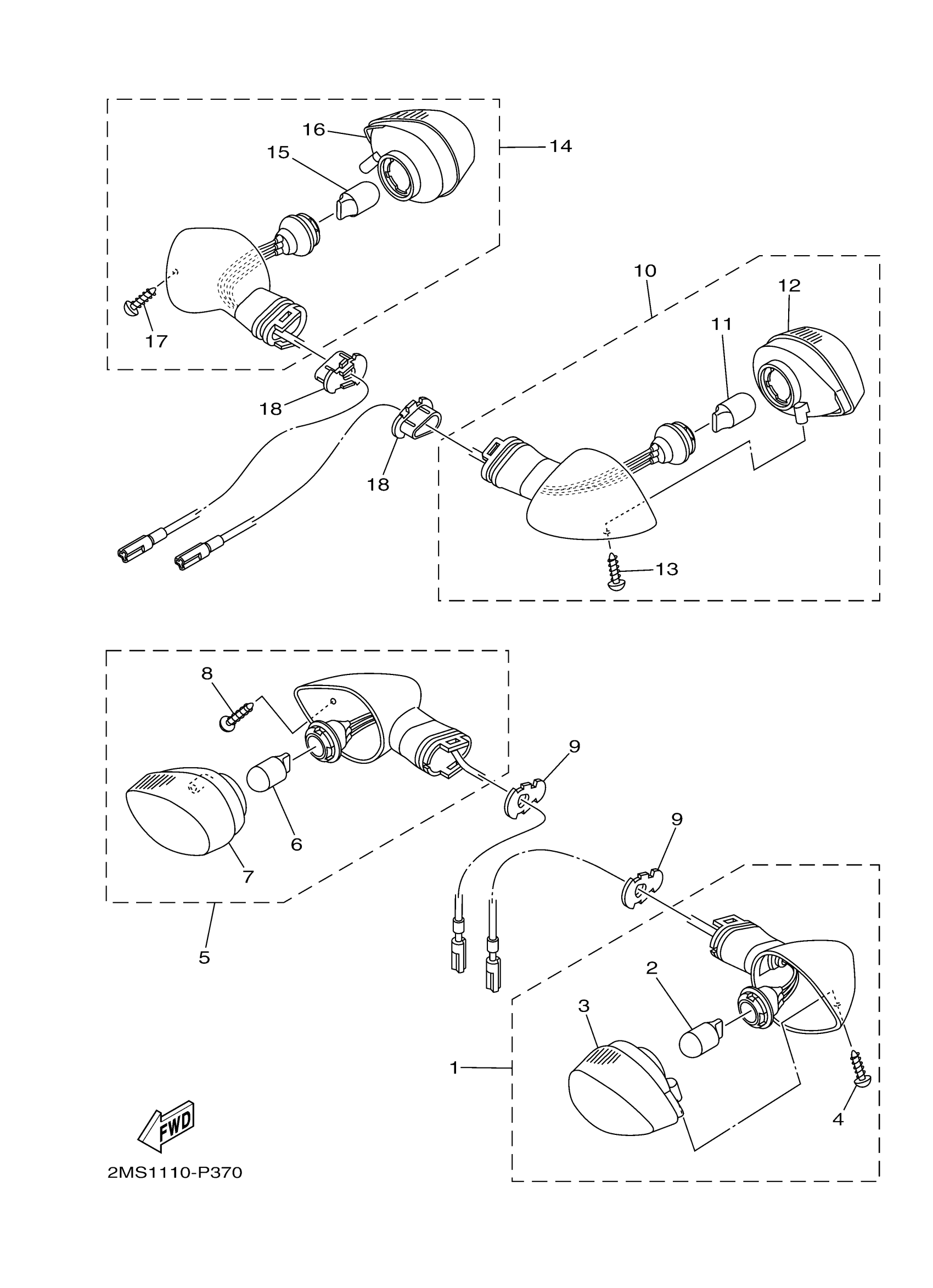

Yamaha YZFR3JL (YZFR3) 2MS70 2018 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

2MS-H3310-00-00

$73.99

2

BULB, FLASHER

5GJ-83331-00-00

$15.49

3

LENS COMP

5PW-8333A-10-00

$33.99

4

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

5

FRONT FLASHER LIGHT ASSY 2

2MS-H3320-00-00

$62.99

6

BULB, FLASHER

5GJ-83331-00-00

$15.49

7

LENS COMP

5PW-8334A-10-00

$33.99

8

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

9

STAY, FLASHER 1

3D7-83318-10-00

$8.99

10

REAR FLASHER LIGHT ASSY 1

2MS-H3330-00-00

$61.99

11

BULB, FLASHER

5PW-83331-00-00

$14.49

12

LENS COMP

5PW-8334A-10-00

$33.99

13

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

14

REAR FLASHER LIGHT ASSY 2

2MS-H3340-00-00

$63.99

15

BULB, FLASHER

5PW-83331-00-00

$14.49

16

LENS COMP

5PW-8333A-10-00

$33.99

17

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

18

STAY, FLASHER 1

1WD-H3318-00-00

Unavailable
