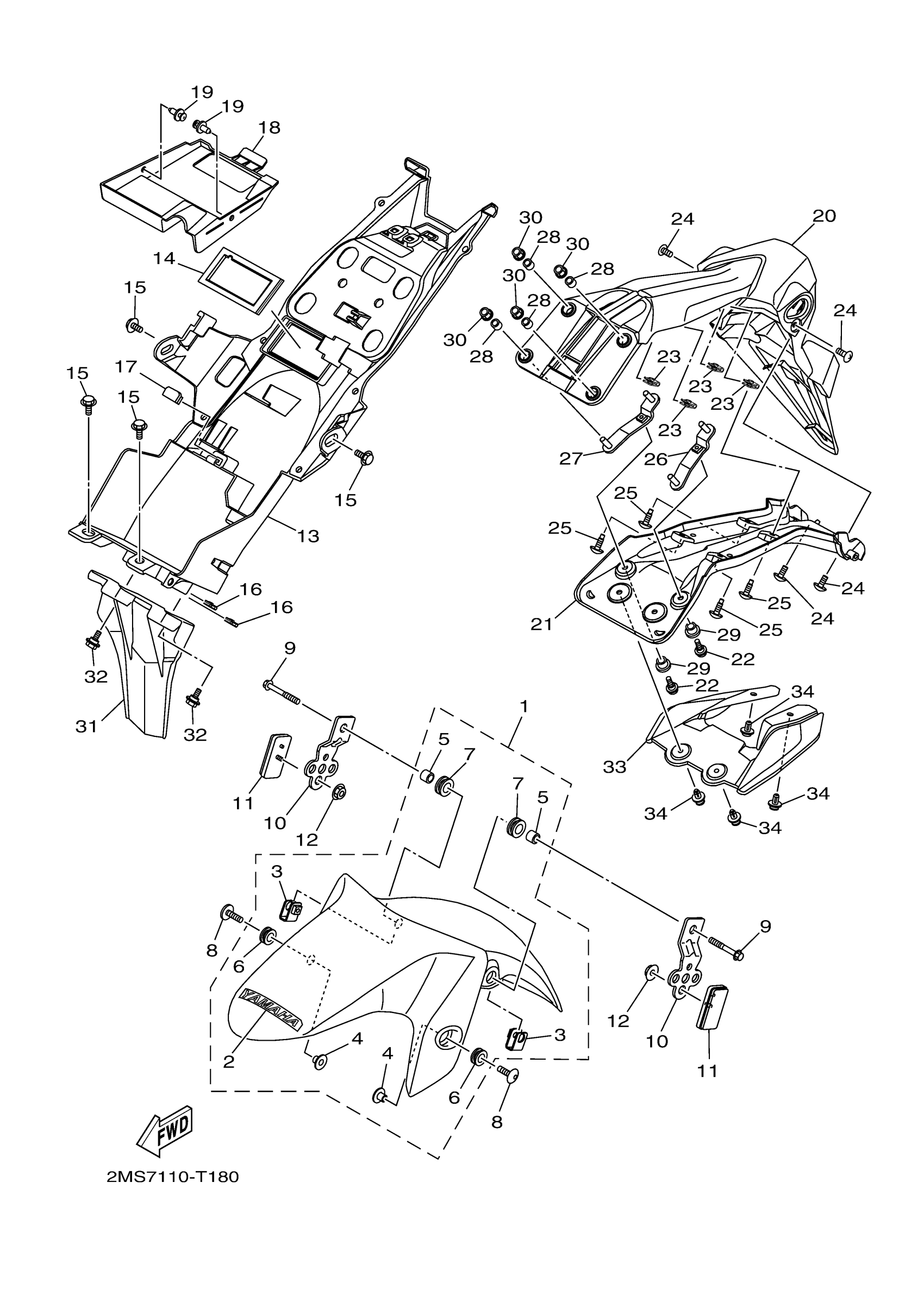

Yamaha YZFR3JL (YZFR3) 2MS70 2018 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

1WD-XF151-40-P0

$29.99

3

BRACKET

1WD-F1586-00-00

$0.85

4

COLLAR

90387-068C5-00

Unavailable

5

COLLAR

90387-068L0-00

$2.19

6

GROMMET (45P1)

90480-12815-00

$0.27

7

GROMMET

90480-15809-00

Unavailable

8

BOLT,HEX. SOCKET BUTTON

90111-06137-00

$5.60

9

BOLT, SMALL FLANGE

95027-06045-00

$3.28

10

BRACKET, REFLECTOR 1

1WD-F113J-00-00

$3.40

11

REFLECTOR ASSY

8GM-85110-00-00

$13.49

12

NUT, FLANGE

95702-05500-00

$0.38

13

FENDER, REAR

1WD-F1611-02-00

$44.99

14

SEAL

1WD-F1669-00-00

$1.72

15

BOLT(3KJ)

90109-063F1-00

$2.97

16

NUT, SPRING

90183-050A6-00

$8.49

17

SEAL, 2

1WD-F16A2-00-00

Unavailable

18

COVER, REAR FENDER

1WD-F163E-01-00

Unavailable

19

RIVET

90269-06081-00

Unavailable

20

GUARD, MUD

B1X-F1629-00-00

Unavailable

21

BRACKET, FENDER

1WD-F1617-01-00

Unavailable

22

BOLT,HEX. SOCKET BUTTON

90111-05021-00

Unavailable

23

NUT, SPRING

90183-050A7-00

Unavailable

24

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

25

BOLT

90111-05018-00

Unavailable

26

BRACKET, REAR STAY

1WD-F1688-00-00

Unavailable

27

BRACKET, REAR STAY 2

1WD-F1689-00-00

Unavailable

28

COLLAR (8H6)

90387-07573-00

Unavailable

29

COLLAR

90387-068L9-00

Unavailable

30

NUT, U FLANGE

95604-06200-00

Unavailable

31

FLAP

1WD-F1621-01-00

Unavailable

32

BOLT

90109-05003-00

Unavailable

33

COVER, REAR FENDER 1

1WD-F163A-00-00

Unavailable

34

RIVET

90269-06081-00

Unavailable
