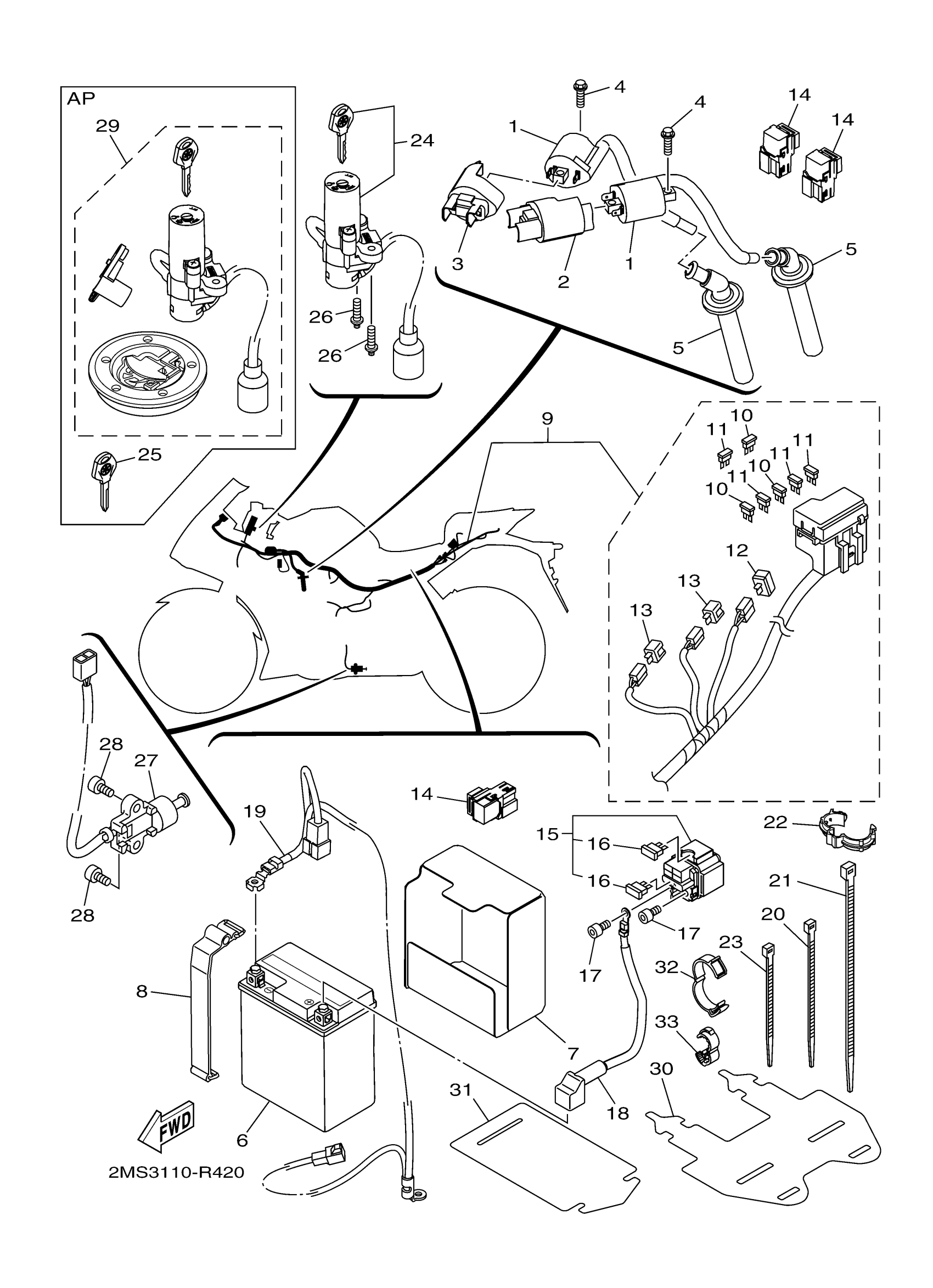

Yamaha YZFR3JL (YZFR3) 2MS70 2018 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

1WD-H2310-02-00

$18.49

2

COVER, IGNITION COIL

B04-H2314-00-00

$10.49

3

COVER, IGNITION COIL

B04-H2314-10-00

$10.49

4

BOLT, FLANGE

95022-06020-00

$3.62

5

PLUG CAP ASSY

1WD-H2370-00-00

Unavailable

6

BATTERY (GSGTZ8V) "FA"

GTZ-8V000-00-00

Unavailable

7

PAD, BATTERY

1WD-H2121-00-00

$10.49

8

BAND, BATTERY

1WD-H2131-00-00

$8.49

9

WIRE HARNESS ASSY

2MS-H2590-00-00

Unavailable

10

. FUSE (75A BL)

1WD-H2151-20-00

Unavailable

11

FUSE (15A-BL)

1WD-H2151-10-00

$9.49

12

DIODE ASSY

4WA-81980-00-00

$29.99

13

DIODE ASSY

3WP-81980-00-00

$22.99

14

RELAY ASSY

1WD-H1950-00-00

$43.99

15

STARTER RELAY ASSY

1WD-H1940-00-00

$34.99

16

FUSE

1WD-H2151-01-00

Unavailable

17

BOLT

91312-05008-00

Unavailable

18

WIRE, PLUS LEAD

1WD-H2115-00-00

Unavailable

19

WIRE, MINUS LEAD

1WD-H2116-01-00

Unavailable

20

BAND

1UA-82591-00-00

Unavailable

21

CLAMP

90464-70800-00

Unavailable

22

CLAMP

90464-14803-00

Unavailable

23

CLAMP (5MX1)

90464-22800-00

Unavailable

24

MAIN SWITCH STEERING LOCK

1WD-H2501-02-00

Unavailable

25

BLANK KEY

1WD-H2511-09-00

Unavailable

26

BOLT

90109-06282-00

Unavailable

27

SWITCH, SIDE STAND

1WD-H2566-02-00

Unavailable

28

BOLT, SOCKET

91317-05018-00

Unavailable

29

MAIN SW. STRG. LOCK SUB ASSY

1WD-XH250-02-00

Unavailable

30

BAND

1WD-F179E-00-00

Unavailable

31

BAND

1WD-H2591-00-00

Unavailable

32

CLAMP

90464-26001-00

Unavailable

33

CLAMP

90464-13227-00

Unavailable
