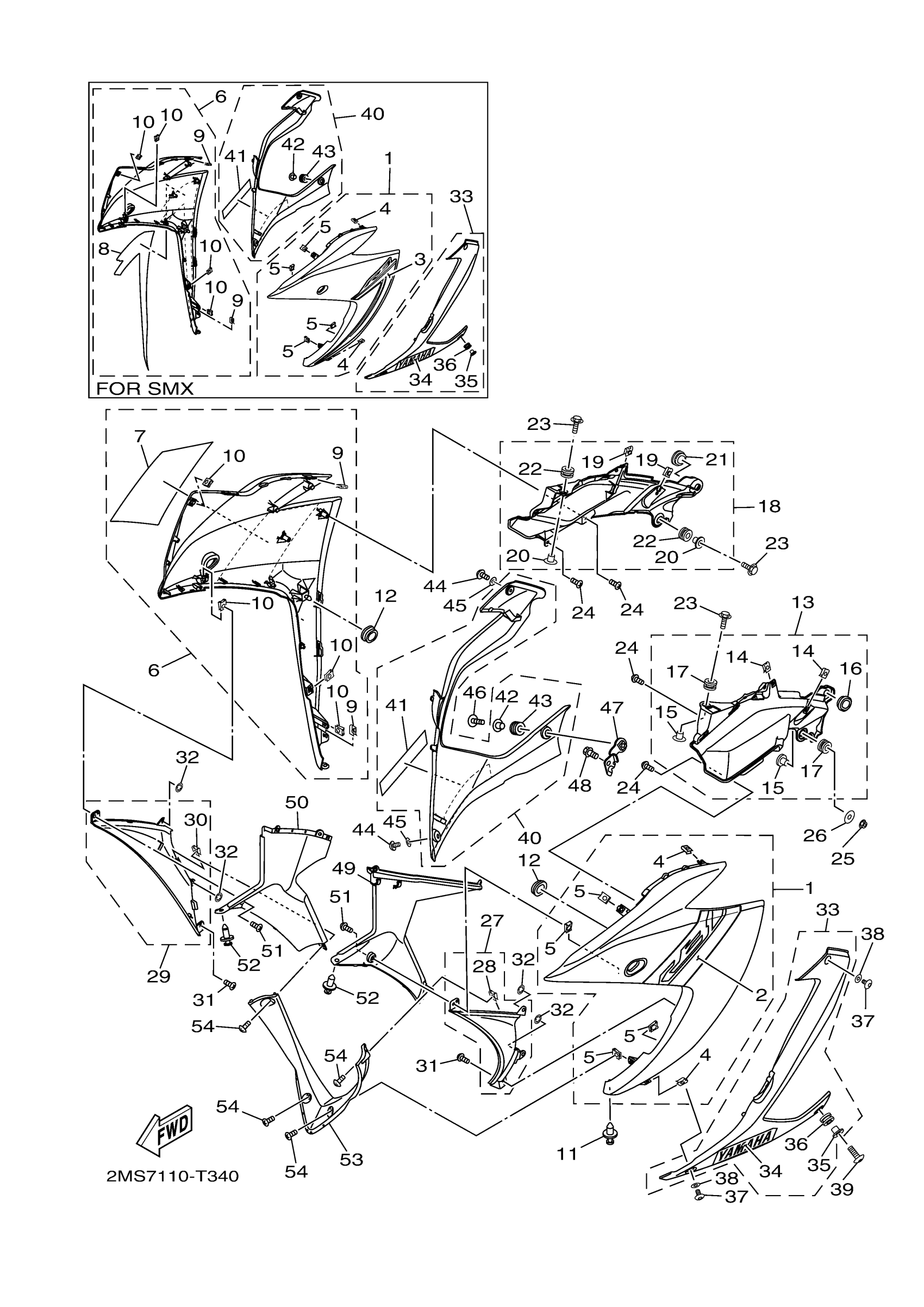

Yamaha YZFR3JL (YZFR3) 2MS70 2018 COWLING 1 Diagram

#

Description
Price

1

BODY, FR. UNDER 1 SUB ASSY

1WD-XF83L-90-P0

Unavailable

3

.. GRAPHIC 5 (BLACK METALLIC X)

BR5-F8398-00-00

Unavailable

4

NUT, SPRING

90183-050A7-00

$3.50

5

NUT, SPRING(1YT)

90183-05042-00

$5.60

6

BODY, FR. UNDER 2 SUB ASSY

1WD-XF83M-90-P0

$165.99

8

GRAPHIC 6

BR5-F8399-00-00

$9.49

9

NUT, SPRING

90183-050A7-00

$3.50

10

NUT, SPRING(1YT)

90183-05042-00

$5.60

11

RIVET

90269-06081-00

$7.49

12

GROMMET(4DN)

90480-01558-00

$4.19

13

COVER 7

1WD-XF11W-10-P0

$37.99

14

NUT, SPRING

90183-050A7-00

$3.50

15

COLLAR

90387-06899-00

$3.24

16

GROMMET(4DN)

90480-01558-00

$4.19

17

GROMMET (3P91)

90480-12808-00

$2.29

18

COVER 8

1WD-XF11X-10-P0

Unavailable

19

NUT, SPRING

90183-050A7-00

$3.50

20

COLLAR

90387-06899-00

$3.24

21

GROMMET(4DN)

90480-01558-00

$4.19

22

GROMMET (3P91)

90480-12808-00

$2.29

23

BOLT, WITH WASHER (30X)

90119-06096-00

Unavailable

24

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

25

NUT, FLANGE

95702-06500-00

Unavailable

26

WASHER, PLATE

90201-06380-00

Unavailable

27

PANEL ASSY

1WD-XF835-00-P0

Unavailable

28

NUT, SPRING(1YT)

90183-05042-00

$5.60

29

PANEL ASSY 2

1WD-XF83B-00-P0

Unavailable

30

NUT, SPRING(1YT)

90183-05042-00

$5.60

31

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

32

NUT, SPRING(1FK)

90183-06008-00

Unavailable

33

UNDER COVER ASSY 1

1WD-XF838-20-P0

Unavailable

34

EMBLEM

1WD-F8328-31-00

Unavailable

35

COLLAR

90387-06899-00

$3.24

36

GROMMET (3P91)

90480-12808-00

$2.29

37

BOLT

90111-05003-00

Unavailable

38

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

39

BOLT,HEX. SOCKET BUTTON

90111-06117-00

Unavailable

40

UNDER COVER ASSY 2

1WD-XF839-20-P0

Unavailable

41

EMBLEM

1WD-F8328-31-00

Unavailable

42

COLLAR

90387-06899-00

$3.24

43

GROMMET (3P91)

90480-12808-00

$2.29

44

BOLT

90111-05003-00

Unavailable

45

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

46

BOLT,HEX. SOCKET BUTTON

90111-06117-00

Unavailable

47

BRACKET 8

1WD-F833E-00-00

Unavailable

48

BOLT, FLANGE

95022-06012-00

Unavailable

49

PANEL, INNER 1

1WD-F836K-01-00

Unavailable

50

PANEL, INNER 2

1WD-F836L-01-00

Unavailable

51

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

52

RIVET

90269-06081-00

$7.49

53

PANEL, INNER 3

1WD-F836M-00-00

Unavailable

54

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable
