2017 Yamaha R3 (YZFR3HL) Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2017 Yamaha R3 (YZFR3HL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

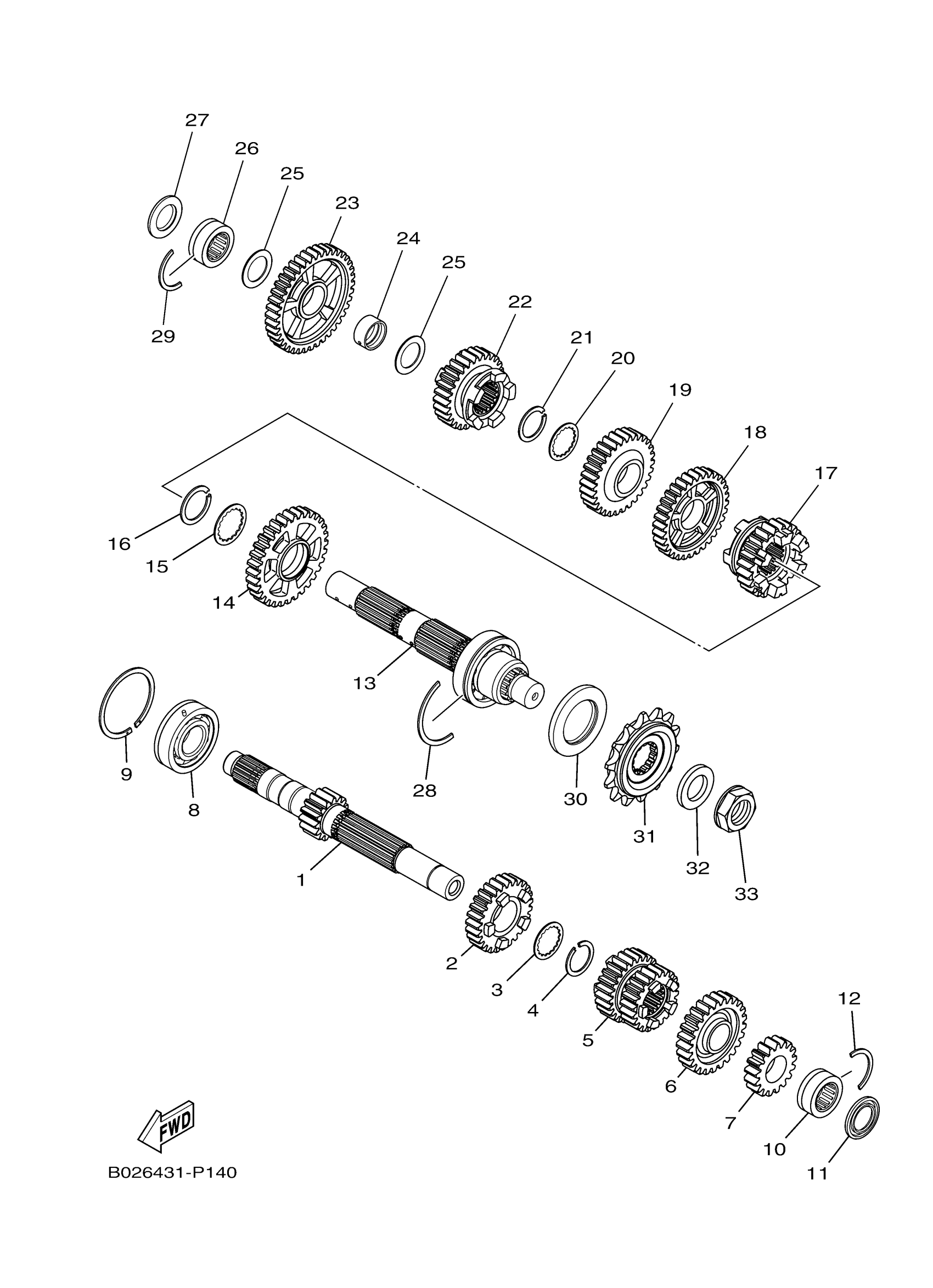

2017 Yamaha R3 (YZFR3HL) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

2MS-E7411-00-00

1
Out of stock

2

GEAR, 5TH PINION (25T)

2MS-E7151-00-00

1
Out of stock

3

WASHER, CLAW

90214-22008-00

1
Out of stock

4

CIRCLIP

93440-24200-00

1
Out of stock

5

GEAR, 3RD PINION (23T/23T)

2MS-E7131-00-00

1
Out of stock

6

GEAR, 6TH PINION

2MS-E7161-00-00

1
Out of stock

7

GEAR, 2ND PINION

2MS-E7121-00-00

1
Out of stock

8

BEARING

93306-255Y9-00

—
Out of stock

9

CIRCLIP (168)

93440-52009-00

1
Out of stock

10

BEARING

93311-420Y3-00

1
Out of stock

11

OIL SEAL

93101-20802-00

—
Out of stock

12

CIR CLIP

278-17425-00-00

1
Out of stock

13

DRIVE AXLE ASSY

1WD-E7402-00-00

—
Out of stock

14

GEAR, 2ND WHEEL (31T)

2MS-E7221-00-00

1
Out of stock

15

WASHER

90209-25011-00

1
Out of stock

16

CIRCLIP

93440-28184-00

—
Out of stock

17

GEAR, 6TH WHEEL (24T)

2MS-E7261-00-00

1
Out of stock

18

GEAR, 3RD WHEEL (31T)

2MS-E7231-00-00

1
Out of stock

19

GEAR, 4TH WHEEL (25T)

2MS-E7241-00-00

1
Out of stock

20

WASHER, CLAW

90214-22008-00

1
Out of stock

21

CIRCLIP

93440-24200-00

1
Out of stock

22

GEAR, 5TH WHEEL (23T)

2MS-E7251-00-00

1
Out of stock

23

GEAR, 1ST WHEEL (35T)

2MS-E7211-00-00

1
Out of stock

24

COLLAR

90387-20814-00

1
Out of stock

25

WASHER PLATE 328171160000

90201-20276-00

—
Out of stock

26

BEARING

93311-420Y3-00

1
Out of stock

27

OIL SEAL

93101-20802-00

—
Out of stock

28

CIRCLIP 1

1WD-17424-00-00

—
Out of stock

29

CIR CLIP

278-17425-00-00

1
Out of stock

30

OIL SEAL

93102-35808-00

—
Out of stock

31

SPROCKET, DRIVE

1WD-E7460-00-00

—
Out of stock

32

WASHER, PLATE

90201-20023-00

—
Out of stock

33

NUT

90179-20013-00

—
Out of stock
