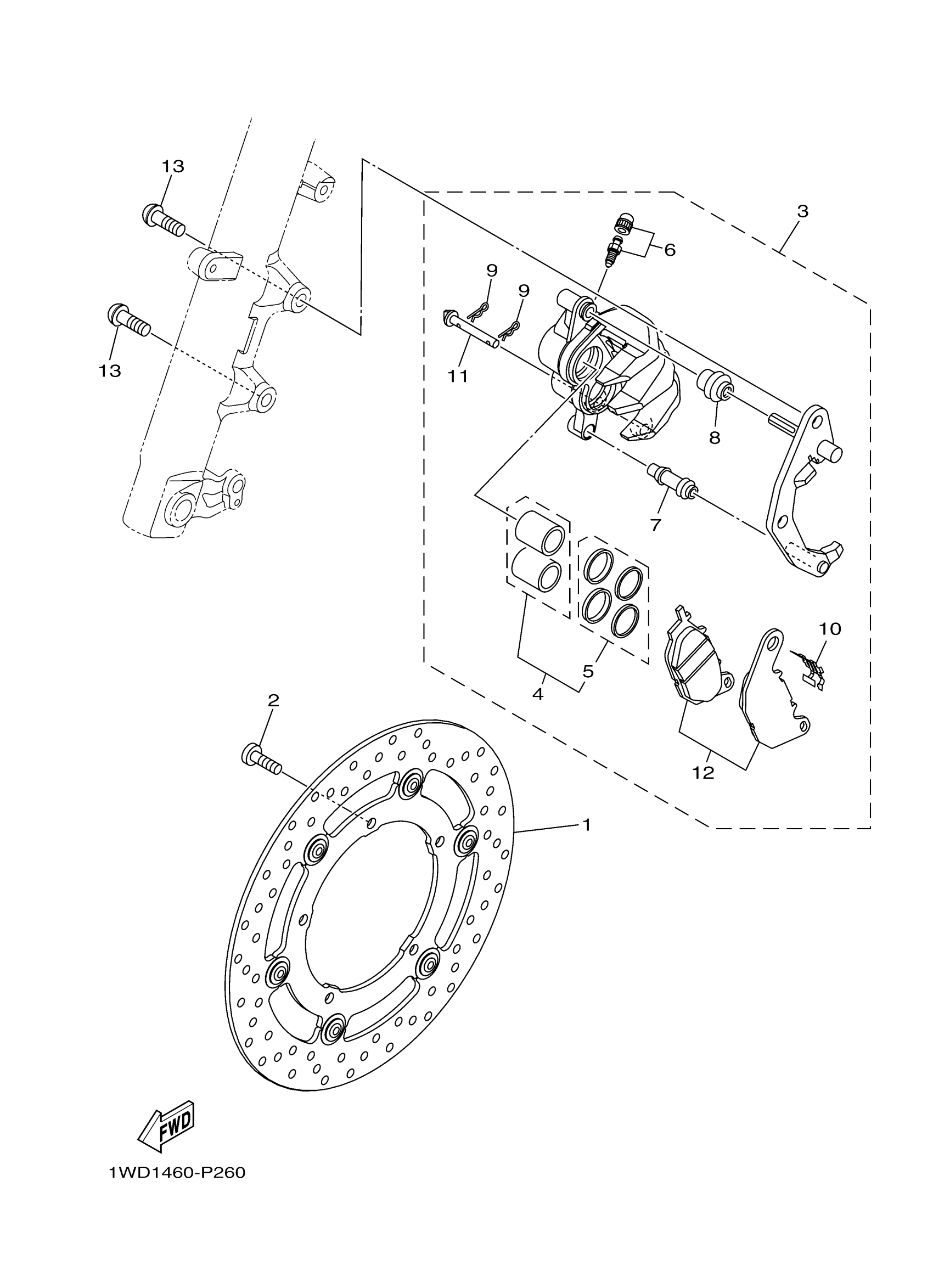

Yamaha YZFR3HL (R3) 2MS50 2017 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY (RIGHT)

1WD-F581U-01-00

$131.47

2

BOLT

90111-08815-00

$1.16

3

CALIPER ASSY (RIGHT)

1WD-F580U-01-00

$184.57

4

PISTON ASSY, CALIPER

1WD-25802-00-00

Unavailable

5

CALIPER SEAL KIT

1WD-25803-00-00

Unavailable

6

BLEED SCREW KIT

15B-W0048-00-00

$16.89

7

BOOT 2

5YP-F5937-00-00

$3.41

8

BOOT, CALIPER

5YP-F5917-00-00

Unavailable

9

CLIP

5YP-F5925-01-00

$0.51

10

SUPPORT, PAD

1WD-F5919-00-00

Unavailable

11

PIN, PAD

5YP-F5924-00-00

$2.51

12

BRAKE PAD KIT

1WD-25805-00-00

$50.38

13

SCREW (28D5)

90149-10804-00

$0.93
