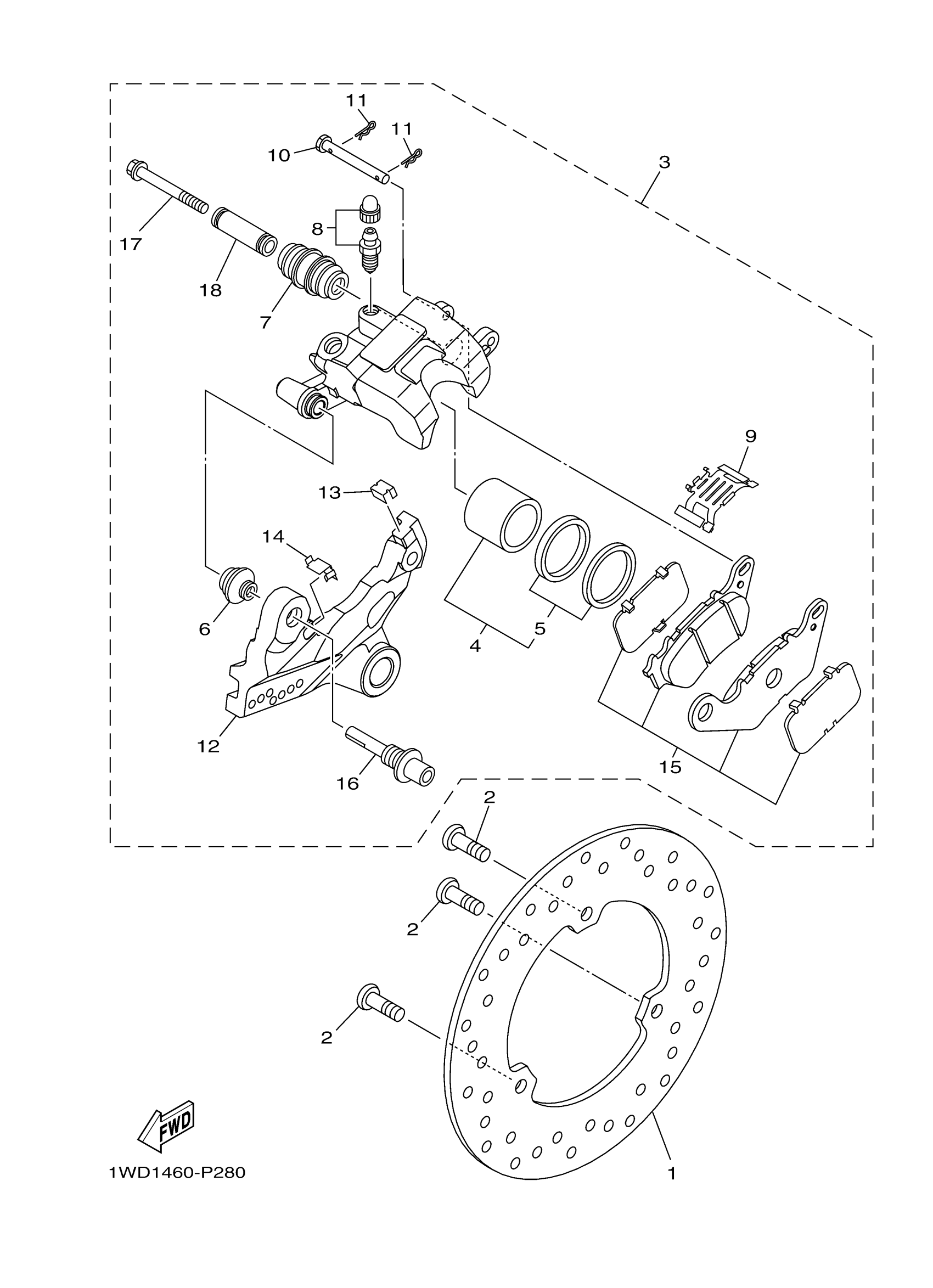

Yamaha YZFR3HL (R3) 2MS50 2017 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISK, REAR BRAKE 2

1WD-F582W-00-00

$124.99

2

BOLT

90111-08815-00

$1.60

3

CALIPER ASSY, REAR 2

1WD-F580W-01-00

Unavailable

4

PISTON ASSY, CALIPER

1WD-25802-50-00

$44.99

5

CALIPER SEAL KIT

1WD-25803-50-00

$3.12

6

BOOT, CALIPER

5YP-F5917-00-00

$3.24

7

BOOT 2

34X-25937-00-00

$31.99

8

BLEED SCREW KIT

15B-W0048-00-00

$19.99

9

SUPPORT, PAD

1WD-F5919-50-00

$2.55

10

PIN, PAD

1WD-F5924-50-00

Unavailable

11

CLIP

5YP-F5925-01-00

Unavailable

12

BRACKET, SUPPORT

1WD-F5921-51-00

$22.99

13

CLIP, PAD

1WD-F5939-51-00

Unavailable

14

CLIP, PAD

1WD-F5939-61-00

$7.49

15

BRAKE PAD KIT 2

1WD-25806-00-00

Unavailable

16

PIN, SLIDE

1WD-F5914-50-00

Unavailable

17

BOLT

5KN-25926-01-00

Unavailable

18

SLEEVE, CALIPER

5TL-F5838-00-00

Unavailable
