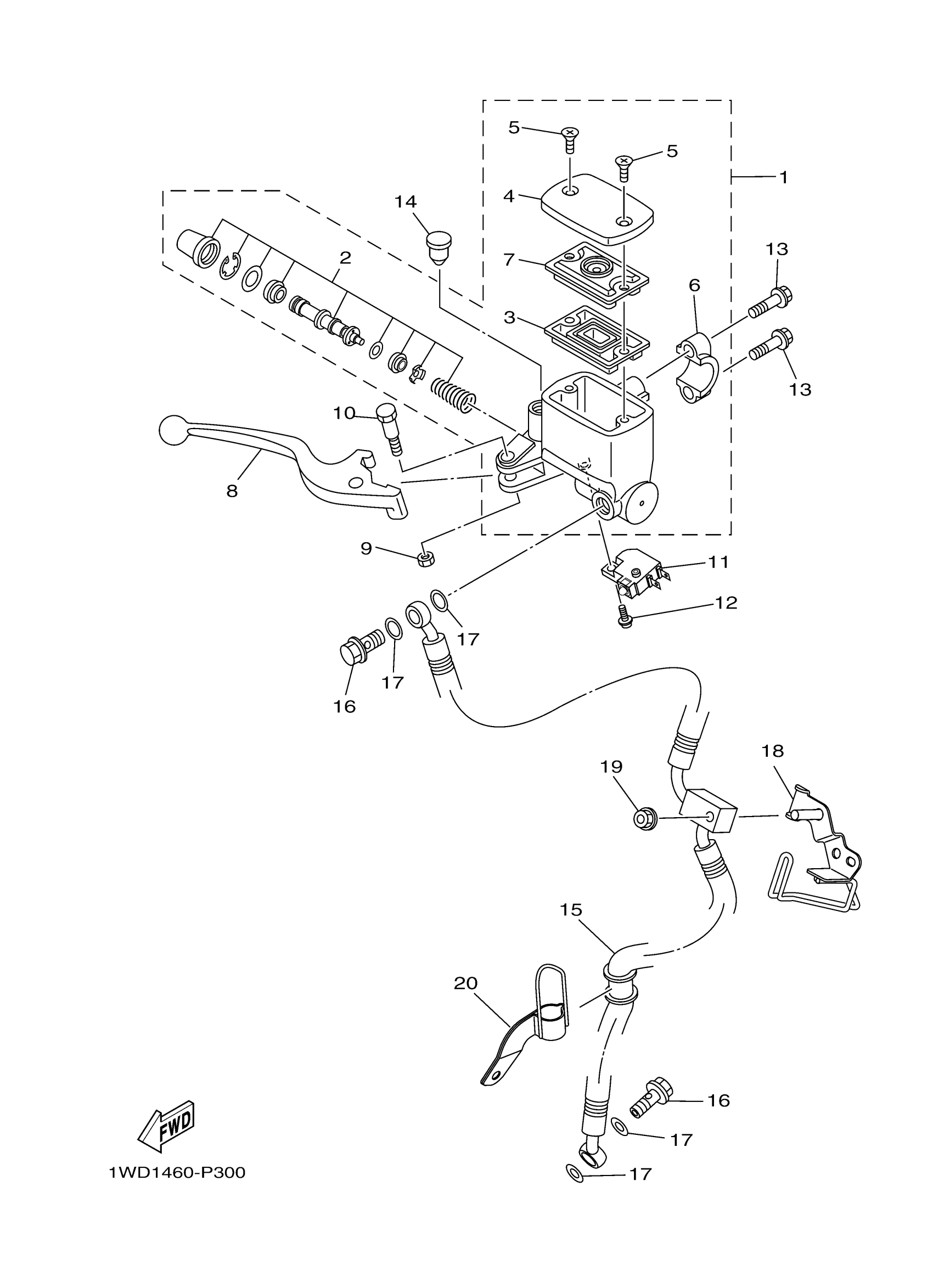

Yamaha YZFR3HL (R3) 2MS50 2017 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER SUB ASSY

1WD-F5870-00-00

$76.99

CYLINDER KIT, MASTER

1WD-F5807-00-00

Unavailable

. DIAPHRAGM, RESERVOIR

5RB-25854-00-00

Unavailable

CAP, RESERVOIR

1WD-F5852-00-00

$7.49

SCREW, FLAT

98707-04012-00

$2.18

BRACKET, MASTER CYLINDER

56A-25867-00-00

$28.99

BUSH,DIAPHRAGM

3C1-F5855-00-00

$0.43

LEVER 2

1WD-H3922-00-00

$9.49

NUT, SELF-LOCKING

95617-06100-00

$8.49

BOLT (4L0)

90109-06577-00

$5.60

FRONT STOP SWITCH ASSY

1HP-83980-03-00

$31.99

SCREW, PAN HEAD WITH WASHER

97602-04216-00

Unavailable

BOLT, SMALL FLANGE

95027-06025-00

$4.16

PLUG (341-26329-00)

90338-09012-00

$9.49

HOSE, BRAKE 1

1WD-F5872-00-00

Unavailable

BOLT, UNION(3GM)

90401-10159-00

Unavailable

WASHER, PLATE(481)

90201-10118-00

Unavailable

HOLDER, BRAKE HOSE 1

1WD-F5875-00-00

Unavailable

NUT, FLANGE

95702-06500-00

Unavailable

HOLDER, BRAKE HOSE 2

1WD-F5876-00-00

Unavailable
