- YZFR3HL (R3) 2MS50 2017
COWLING 1

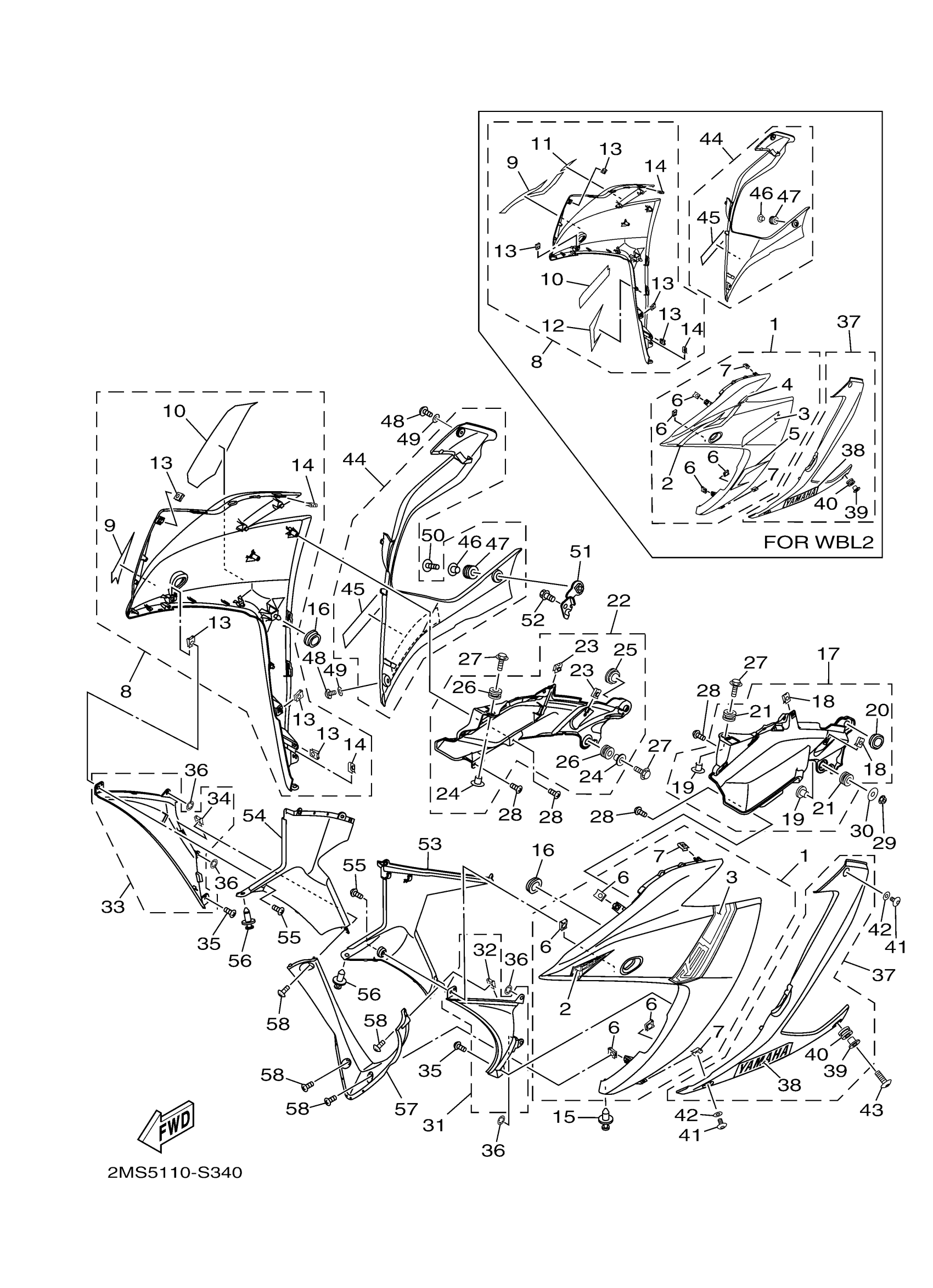

Yamaha YZFR3HL (R3) 2MS50 2017 COWLING 1 Diagram
#
2
GRAPHIC 3
1WD-F8393-B0-00
Unavailable
4
GRAPHIC, 7
1WD-F83GA-90-00
Unavailable
5
GRAPHIC,9
1WD-F83GC-41-00
Unavailable
8
BODY, FR. UNDER 2 SUB ASSY
1WD-XF83M-10-P5
Unavailable
16
GROMMET(4DN)
90480-01558-00
Unavailable
17
COVER 7
1WD-XF11W-00-P2
Unavailable
19
COLLAR
90387-06899-00
Unavailable
20
GROMMET(4DN)
90480-01558-00
Unavailable
21
GROMMET (3P91)
90480-12808-00
Unavailable
22
COVER 8
1WD-XF11X-00-P2
Unavailable
24
COLLAR
90387-06899-00
Unavailable
25
GROMMET(4DN)
90480-01558-00
Unavailable
26
GROMMET (3P91)
90480-12808-00
Unavailable
27
BOLT, WITH WASHER (30X)
90119-06096-00
Unavailable
28
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
29
NUT, FLANGE
95702-06500-00
Unavailable
30
WASHER, PLATE
90201-06380-00
Unavailable
31
PANEL ASSY
1WD-XF835-00-P1
Unavailable
33
PANEL ASSY 2
1WD-XF83B-00-P1
Unavailable
35
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
36
NUT, SPRING(1FK)
90183-06008-00
Unavailable
37
UNDER COVER ASSY 1
1WD-XF838-10-P2
Unavailable
38
EMBLEM
1WD-F8328-31-00
Unavailable
39
COLLAR
90387-06899-00
Unavailable
40
GROMMET (3P91)
90480-12808-00
Unavailable
41
BOLT
90111-05003-00
Unavailable
42
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
43
BOLT,HEX. SOCKET BUTTON
90111-06117-00
Unavailable
44
UNDER COVER ASSY 2
1WD-XF839-10-P2
Unavailable
45
EMBLEM
1WD-F8328-31-00
Unavailable
46
COLLAR
90387-06899-00
Unavailable
47
GROMMET (3P91)
90480-12808-00
Unavailable
48
BOLT
90111-05003-00
Unavailable
49
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
50
BOLT,HEX. SOCKET BUTTON
90111-06117-00
Unavailable
51
BRACKET 8
1WD-F833E-00-00
Unavailable
52
BOLT, FLANGE
95022-06012-00
Unavailable
53
PANEL, INNER 1
1WD-F836K-01-00
Unavailable
54
PANEL, INNER 2
1WD-F836L-01-00
Unavailable
55
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
57
PANEL, INNER 3
1WD-F836M-00-00
Unavailable
58
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
