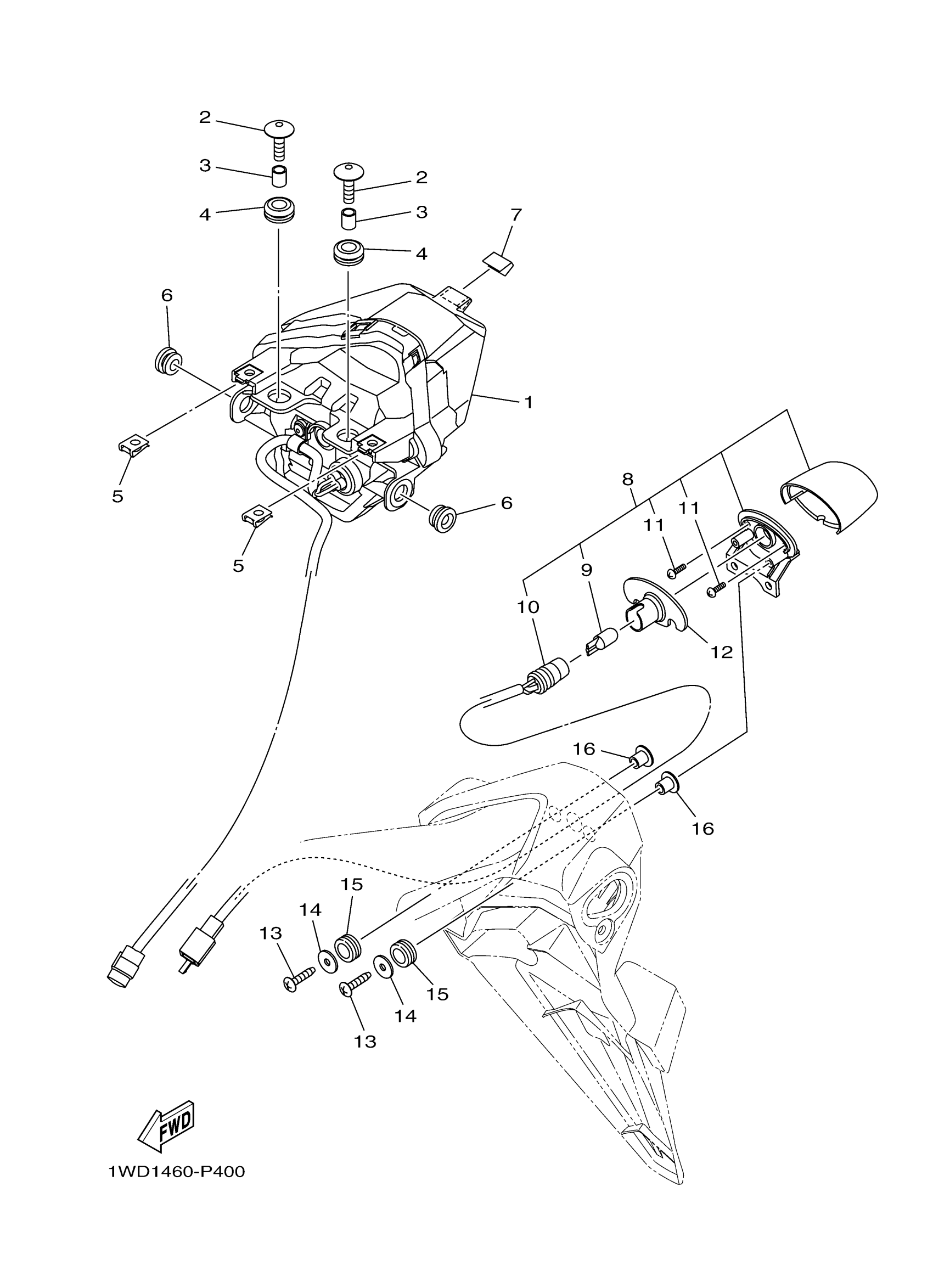

Yamaha YZFR3GW (YZFR3) 2MS31 2016 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASS

1WD-H4710-02-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-06117-00

$1.37

3

COLLAR

90387-067V1-00

$2.75

4

GROMMET

90480-13001-00

$0.70

5

NUT, SPRING(1YT)

90183-05042-00

$0.86

6

GROMMET

90480-10003-00

$5.86

7

SEAL 1

1WD-F1732-00-00

$0.91

8

LICENCE LIGHT ASSY

1WD-H4740-00-00

Unavailable

9

BULB (12V-5W)

1WD-H4744-00-00

$11.39

10

CORD, LICENCE LIGHT

1WD-H4547-00-00

$5.54

11

. SCREW

1WD-H4726-00-00

$0.40

12

DAMPER

1WD-H4753-00-00

$1.03

13

SCREW, TAPPING

97707-40020-00

$0.46

14

WASHER, PLATE (8M6)

90201-047A2-00

$2.60

15

GROMMET

90480-11009-00

$0.77

16

COLLAR

90387-05042-00

Unavailable
