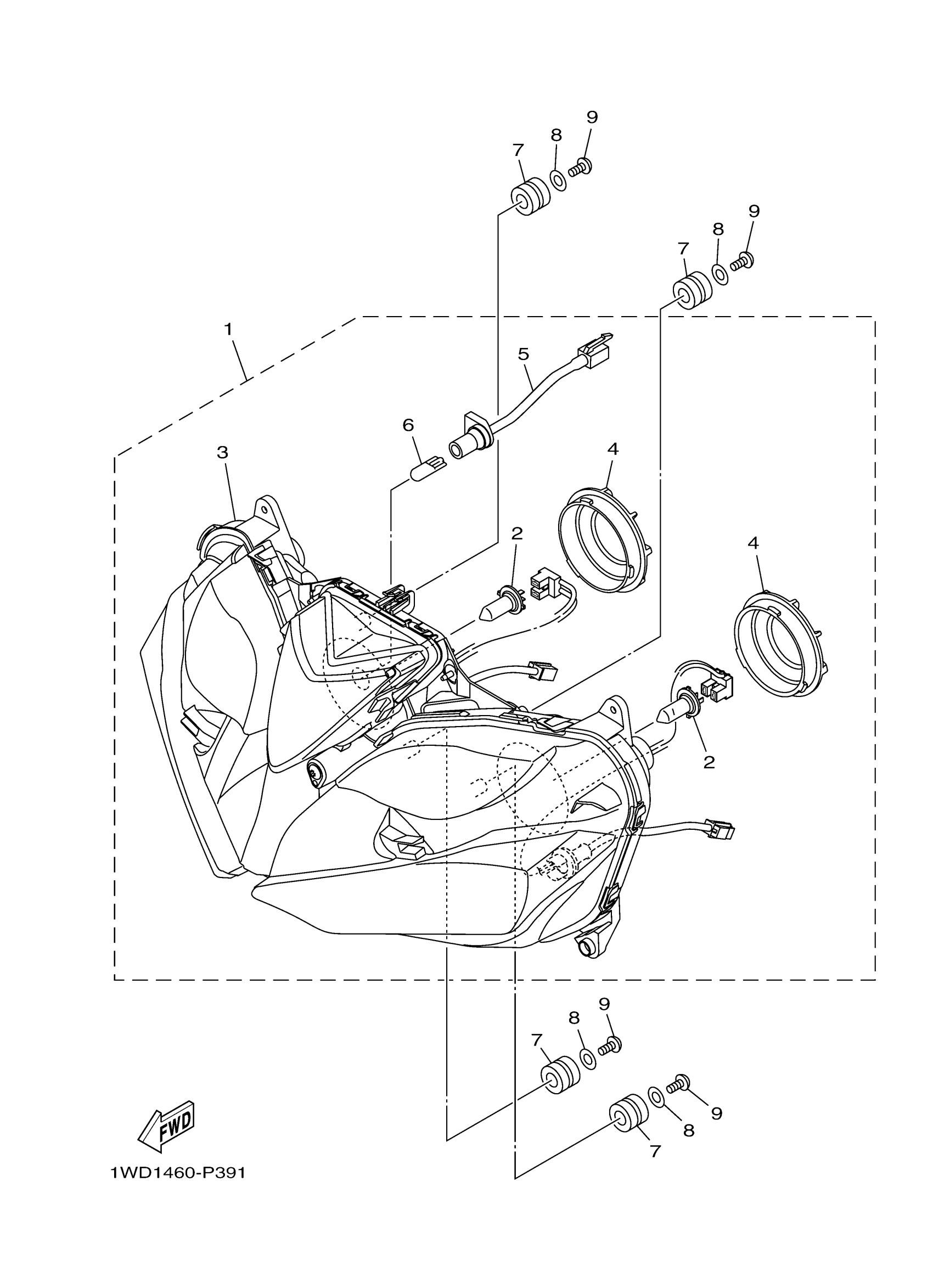

Yamaha YZFR3GW (YZFR3) 2MS31 2016 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY

1WD-H4300-00-00

$174.87

2

BULB, HEADLIGHT

1WD-H4314-00-00

Unavailable

3

HEADLIGHT UNIT ASSY

1WD-H4303-00-00

$183.00

4

COVER, SOCKET

1WD-H4397-00-00

$17.77

5

SOCKET CORD ASSY 1

1WD-H4340-00-00

$3.54

6

BULB

1WD-H4347-00-00

Unavailable

7

GROMMET

90480-14004-00

$6.99

8

WASHER, PLATE (4H7)

90201-061A5-00

$5.47

9

SCREW, TAPPING(4MV)

97707-50016-00

$1.16
