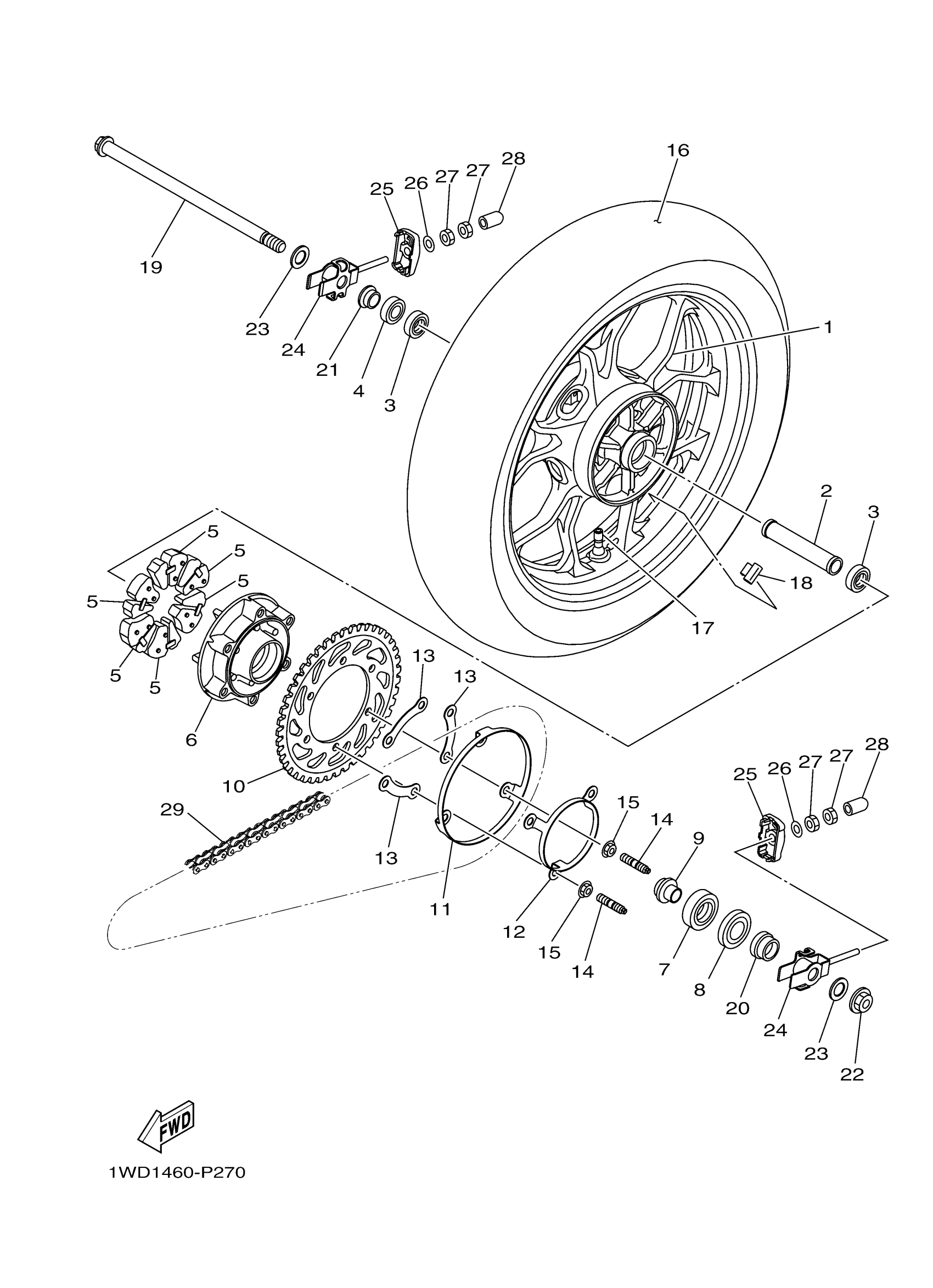

Yamaha YZFR3GW (YZFR3) 2MS31 2016 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

1WD-F5338-03-0X

$285.69

2

COLLAR

90387-17810-00

$10.74

3

BEARING (10H)

93306-20314-00

$26.51

4

OIL SEAL

93106-23002-00

$4.24

5

DAMPER

1WD-F5364-00-00

$5.40

6

CLUTCH, HUB

1WD-F5366-01-98

Unavailable

6

CLUTCH, HUB

1WD-F5366-00-P0

$38.57

7

BEARING

93306-30450-00

$81.50

8

OIL SEAL

93106-38046-00

$13.70

9

COLLAR, WHEEL

1WD-F5377-00-00

$5.97

10

SPROCKET, DRIVEN (43T)

1WD-F5443-00-00

$48.90

11

BRACKET 1

1WD-F537W-00-00

$28.15

12

BRKT 2

1WD-F537X-00-00

$8.09

13

PLATE 1

1WD-F539F-00-00

$2.46

14

BOLT, STUD

90116-10065-00

$6.12

15

NUT, S/L FLANGE

95602-10200-00

Unavailable

16

TIRE

94114-17808-00

$330.04

17

VALVE, RIM (TR413)939000002200

93900-00828-00

Unavailable

18

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

18

BALANCER, WHEEL

5MT-25398-10-00

Unavailable

18

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

19

AXLE, WHEEL

1WD-25381-00-00

Unavailable

20

COLLAR, SPROCKET AXLE

1WD-F5386-01-00

Unavailable

21

COLLAR, WHEEL

1WD-F5383-01-00

Unavailable

22

NUT, SELF-LOCKING

95602-16200-00

Unavailable

23

WASHER, PLATE

90201-17809-00

Unavailable

24

PULLER, CHAIN 1

1WD-F5388-00-00

Unavailable

25

END 1

1WD-F2174-00-00

Unavailable

26

.. WASHER, PLATE

92990-08600-00

$2.17

27

NUT

95302-08600-00

Unavailable

28

PIPE, DRAIN 2

40D-E443G-00-00

Unavailable

29

SET, CHAIN (DID520

94A40-27112-00

Unavailable
