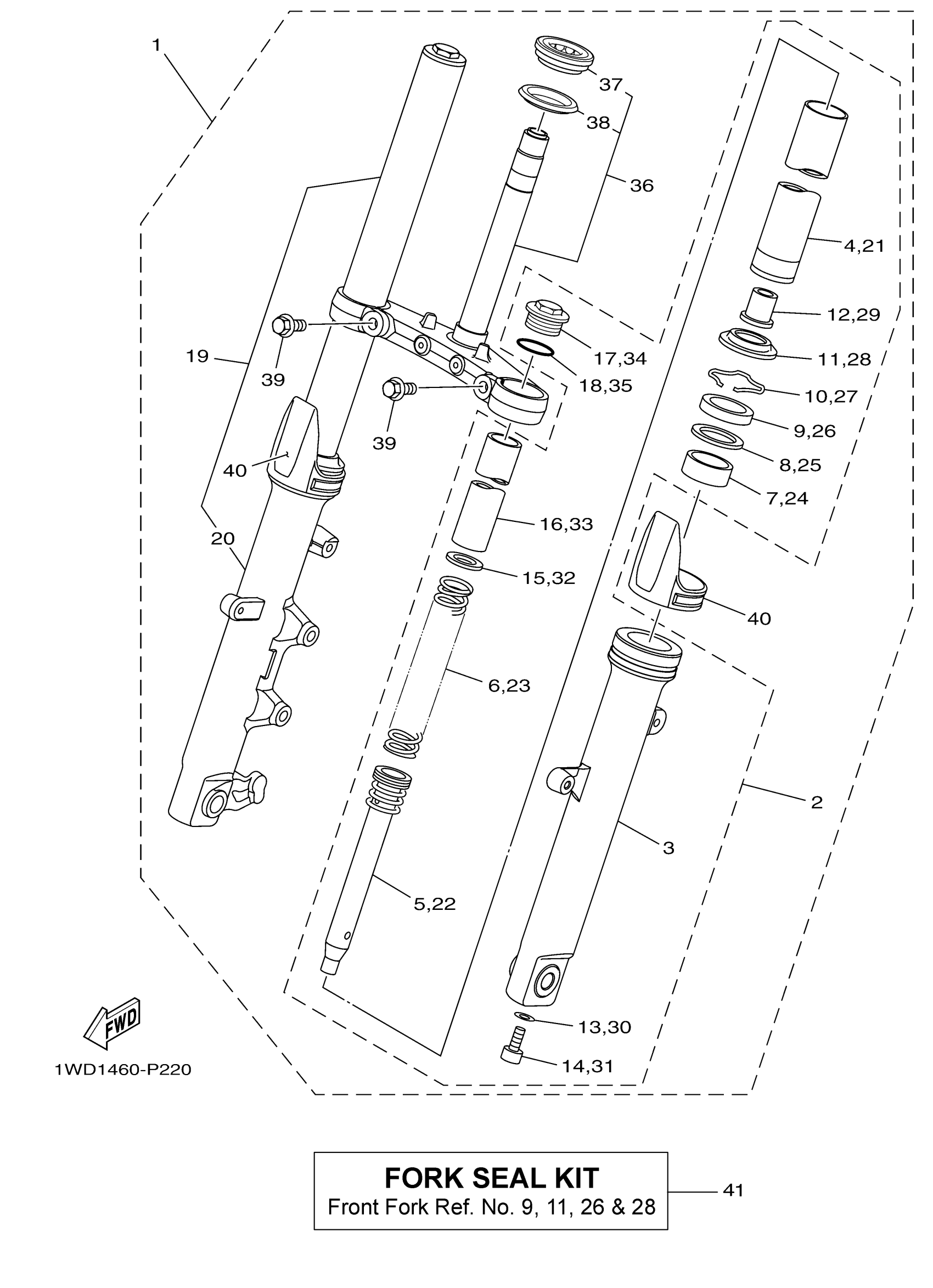

Yamaha YZFR3GW (YZFR3) 2MS31 2016 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY

1WD-F3100-00-00

$385.31

2

FRONT FORK ASSY (L.H)

1WD-F3102-00-00

$225.17

3

.. TUBE, OUTER (LH)

1WD-F3126-00-00

$81.73

4

INNER TUBE COMP.1

1WD-F3110-00-00

$95.58

5

.. CYLINDER COMP, FRONT FORK

1WD-F3170-00-00

Unavailable

6

.. SPRING, FRONT FORK

1WD-F3141-00-00

$12.04

7

METAL, SLIDE 1

45P-F3125-00-00

$31.46

8

WASHER, OIL SEAL

45P-F3146-00-00

$1.14

9

OIL SEAL

45P-F3145-00-00

$3.67

10

CLIP, OIL SEAL

45P-F3156-00-00

$0.51

11

SEAL, DUST

45P-F3144-00-00

$6.29

12

SPINDLE, TAPER

1WD-F3173-00-00

$6.86

13

GASKET

509-23158-L0-00

$13.39

14

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

15

.. WASHER, SPRING UPPER

45P-F3149-00-00

$0.33

16

.. SPACER

1WD-F3118-00-00

Unavailable

17

.. BOLT, CAP

45P-F3111-00-00

$0.69

18

O-RING

45P-F3188-00-00

Unavailable

19

FRONT FORK ASSY (R.H)

1WD-F3103-00-00

Unavailable

20

.. TUBE, OUTER 2

1WD-F3136-00-00

$84.41

21

INNER TUBE COMP.1

1WD-F3110-00-00

$95.58

22

.. CYLINDER COMP, FRONT FORK

1WD-F3170-00-00

Unavailable

23

.. SPRING, FRONT FORK

1WD-F3141-00-00

$12.04

24

METAL, SLIDE 1

45P-F3125-00-00

$31.46

25

WASHER, OIL SEAL

45P-F3146-00-00

$1.14

26

OIL SEAL

45P-F3145-00-00

$3.67

27

CLIP, OIL SEAL

45P-F3156-00-00

$0.51

28

SEAL, DUST

45P-F3144-00-00

$6.29

29

SPINDLE, TAPER

1WD-F3173-00-00

$6.86

30

GASKET

509-23158-L0-00

$13.39

31

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

32

.. WASHER, SPRING UPPER

45P-F3149-00-00

$0.33

33

.. SPACER

1WD-F3118-00-00

Unavailable

34

.. BOLT, CAP

45P-F3111-00-00

$0.69

35

O-RING

45P-F3188-00-00

Unavailable

36

UNDER BRACKET COMP.

1WD-F3340-00-00

Unavailable

37

BEARING(3FV)

93399-99932-00

Unavailable

38

SEAL, STEERING

3FV-23462-00-00

Unavailable

39

BOLT 1

45P-F3346-00-00

Unavailable

40

COVER

1WS-2331G-00-00

Unavailable

41

FORK SEAL KIT (TWO FORKS)

2MS-W003B-00-00

Unavailable
