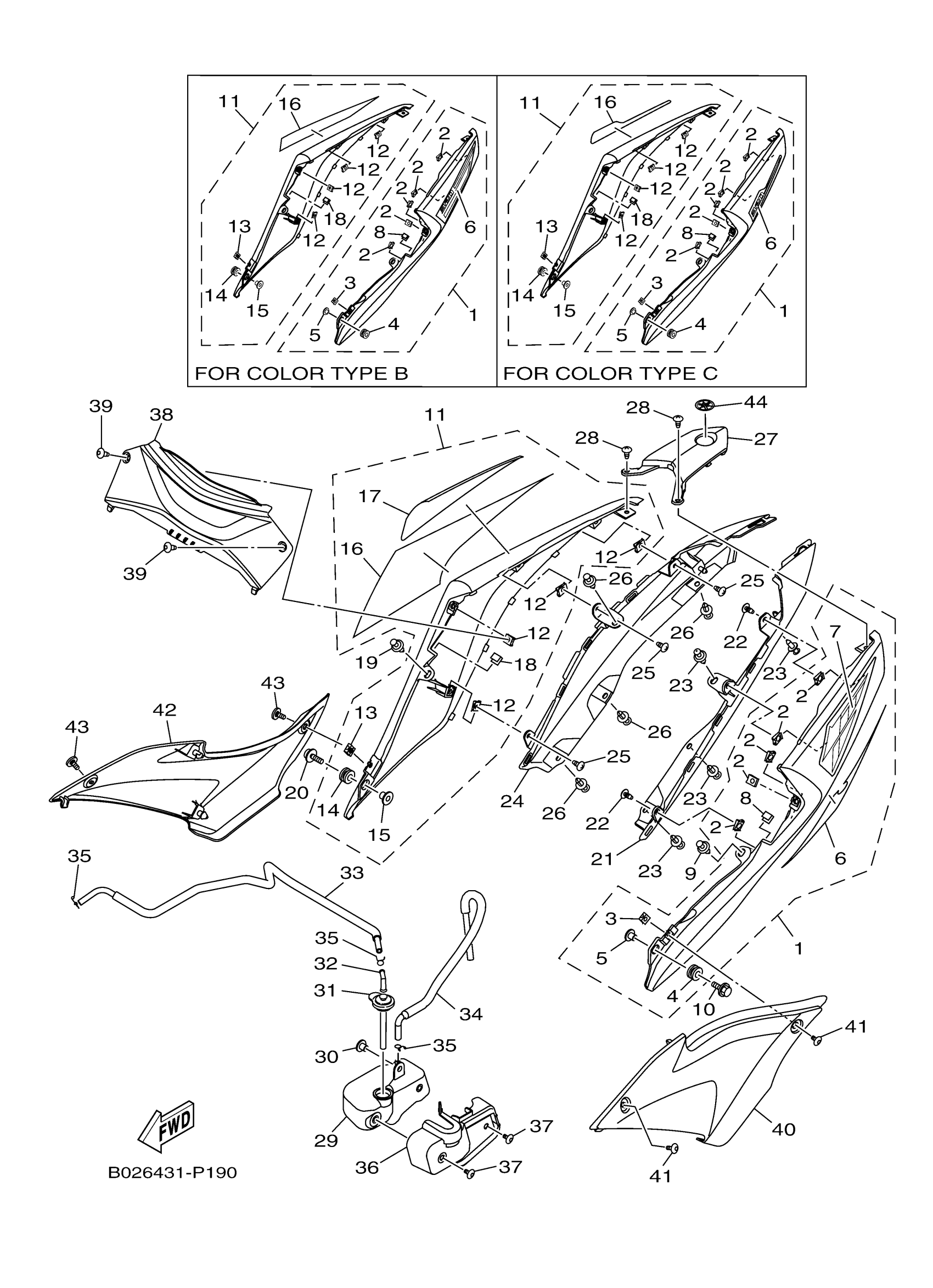

Yamaha YZFR3FR (YZFR3) 2MS11 2015 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

1WD-XF171-30-P0

$30.99

2

NUT, SPRING(1YT)

90183-05042-00

$5.60

3

NUT, SPRING

90183-050A7-00

$3.50

4

GROMMET (3P91)

90480-12808-00

$2.29

5

COLLAR

90387-06899-00

$3.24

6

.. GRAPHIC, 1 (BLACK METALLIC X)

2MS-F17F1-00-00

Unavailable

8

SEAL

31B-F8307-00-00

$2.19

9

RIVET

90269-06081-00

$7.49

10

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

11

COVER, SIDE 2

1WD-XF172-30-P0

$30.99

12

NUT, SPRING(1YT)

90183-05042-00

$5.60

13

NUT, SPRING

90183-050A7-00

$3.50

14

GROMMET (3P91)

90480-12808-00

$2.29

15

COLLAR

90387-06899-00

$3.24

16

.. GRAPHIC, 2 (BLACK METALLIC X)

2MS-F17F2-00-00

Unavailable

18

SEAL

31B-F8307-00-00

$2.19

19

RIVET

90269-06081-00

$7.49

20

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

21

MOLE, SIDE COVER 1

1WD-F171L-00-00

Unavailable

22

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

23

RIVET

90269-06081-00

$7.49

24

MOLE, SIDE COVER 2

1WD-F171M-00-00

Unavailable

25

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

26

RIVET

90269-06081-00

$7.49

27

MOLE, SIDE COVER 3

1WD-F171N-00-00

Unavailable

28

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

29

TANK, RECOVERY

1WD-F1871-01-00

Unavailable

30

COLLAR

90387-06857-00

Unavailable

31

CAP

1WD-F1875-02-00

Unavailable

32

ELBOW

26H-21828-00-00

Unavailable

33

PIPE 1

1WD-F1816-02-00

Unavailable

34

PIPE 2

1WD-F1817-00-00

Unavailable

35

CLIP 101235600

90467-08003-00

Unavailable

36

COVER

1WD-F172W-00-00

Unavailable

37

BOLT

90111-05003-00

Unavailable

38

COVER, SIDE 3

1WD-F1731-00-P0

Unavailable

39

SCREW, ROUND TAPPING

90160-05810-00

Unavailable

40

COVER, SIDE 5

1WD-F171E-00-00

Unavailable

41

BOLT

90111-05003-00

Unavailable

42

COVER, SIDE 6

1WD-F171X-00-00

Unavailable

43

BOLT

90111-05003-00

Unavailable

44

TUNING FORK MARK

1PA-F836B-01-00

Unavailable
