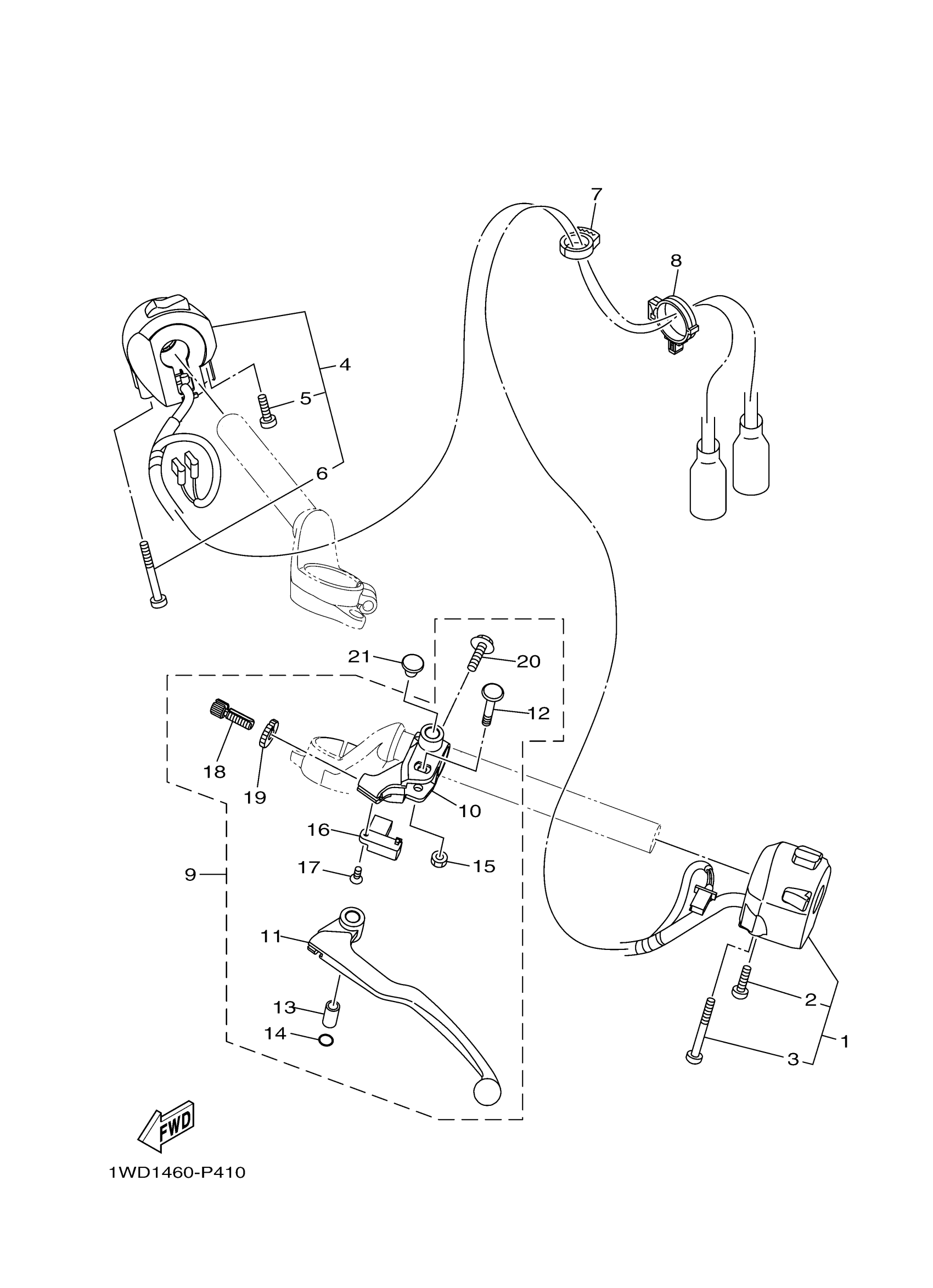

Yamaha YZFR3FR (YZFR3) 2MS11 2015 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

SWITCH, HANDLE 4

1WD-H3972-00-00

Unavailable

2

. SCREW, FITTING

1WD-H2133-00-00

Unavailable

3

. SCREW, SWITCH FITTING

1WD-H395W-00-00

Unavailable

4

SWITCH, HANDLE 2

1WD-H3975-00-00

$83.99

5

SCREW, FITTING

45P-H2133-00-00

$0.54

6

SCREW, SWITCH FITTING

45P-H395W-00-00

$0.54

7

CLAMP

90464-16003-00

$7.49

8

CLAMP

90464-30001-00

$7.49

9

LEVER HOLDER ASSY (LEFT)

1WD-H2910-00-00

$99.99

10

HOLDER, LEVER 1

1WD-H2911-00-00

$17.99

11

LEVER 1

1WD-H3912-00-00

$12.49

12

BOLT, LEVER

31A-83945-00-00

$5.49

13

COLLAR, LEVER 1

31A-83913-00-00

$22.99

14

O-RING (260)

93210-10118-00

$7.49

15

NUT, SELF-LOCKING

95617-06100-00

$8.49

16

SWITCH

5BP-H2917-00-00

Unavailable

17

SCREW, FLAT

98707-03008-00

Unavailable

18

BOLT

90123-08002-00

Unavailable

19

NUT

90179-08030-00

Unavailable

20

BOLT, WITH WASHER

97507-06525-00

Unavailable

21

PLUG (341-26329-00)

90338-09012-00

Unavailable
