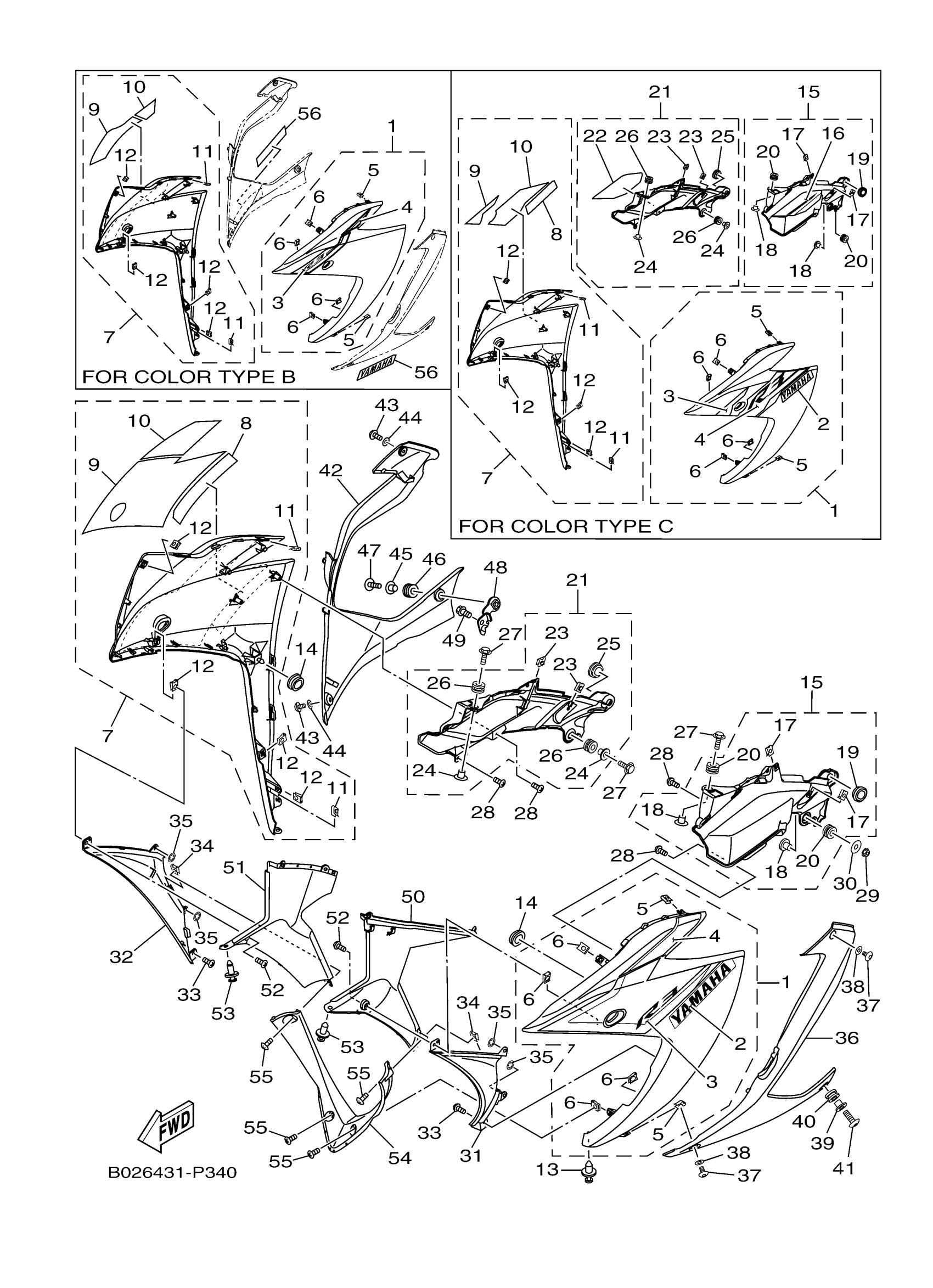

Yamaha YZFR3FR (YZFR3) 2MS11 2015 COWLING 1 Diagram
#
3
.. GRAPHIC 3 (BLACK METALLIC X)
2MS-F8393-10-00
Unavailable
9
.. GRAPHIC 4 (BLACK METALLIC X)
2MS-F8394-10-00
Unavailable
18
COLLAR
90387-06899-00
Unavailable
20
GROMMET (3P91)
90480-12808-00
Unavailable
21
COVER 8
1WD-XF11X-10-P0
Unavailable
24
COLLAR
90387-06899-00
Unavailable
26
GROMMET (3P91)
90480-12808-00
Unavailable
27
BOLT, WITH WASHER (30X)
90119-06096-00
Unavailable
28
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
29
NUT, FLANGE
95702-06500-00
Unavailable
30
WASHER, PLATE
90201-06380-00
Unavailable
31
PANEL 1
1WD-F835U-00-P0
Unavailable
32
PANEL 2
1WD-F835V-00-P0
Unavailable
33
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
35
NUT, SPRING(1FK)
90183-06008-00
Unavailable
36
COVER, UNDER
1WD-F8385-00-P0
Unavailable
37
BOLT
90111-05003-00
Unavailable
38
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
39
COLLAR
90387-06899-00
Unavailable
40
GROMMET (3P91)
90480-12808-00
Unavailable
41
BOLT,HEX. SOCKET BUTTON
90111-06117-00
Unavailable
42
COVER, UNDER 2
1WD-F8395-00-P0
Unavailable
43
BOLT
90111-05003-00
Unavailable
44
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
45
COLLAR
90387-06899-00
Unavailable
46
GROMMET (3P91)
90480-12808-00
Unavailable
47
BOLT,HEX. SOCKET BUTTON
90111-06117-00
Unavailable
48
BRACKET 8
1WD-F833E-00-00
Unavailable
49
BOLT, FLANGE
95022-06012-00
Unavailable
50
PANEL, INNER 1
1WD-F836K-01-00
Unavailable
51
PANEL, INNER 2
1WD-F836L-01-00
Unavailable
52
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
54
PANEL, INNER 3
1WD-F836M-00-00
Unavailable
55
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
56
EMBLEM
1WD-F8328-21-00
Unavailable
