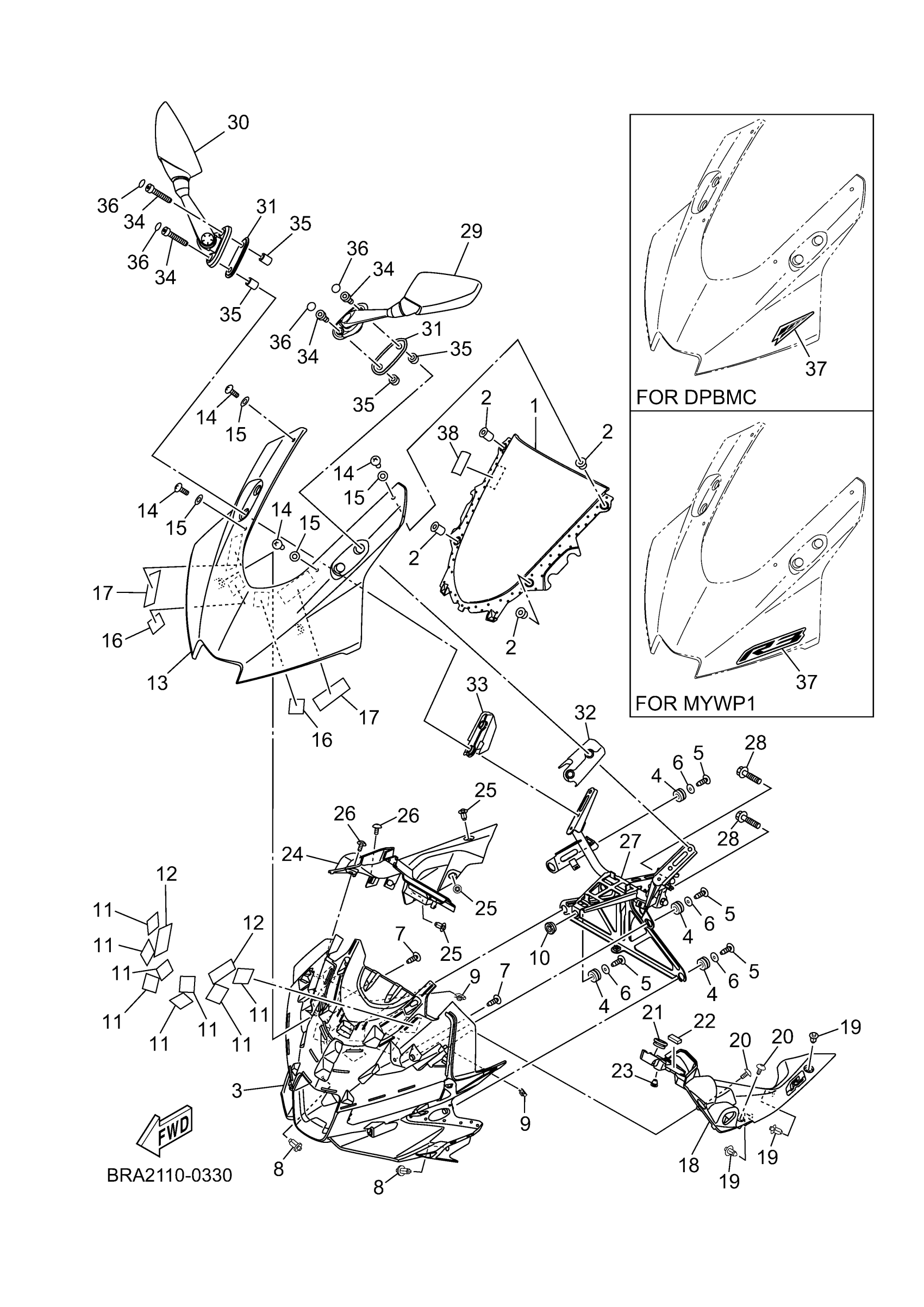

Yamaha YZFR3ASW (YZFR3 ABS) BRA22 2025 WINDSHIELD Diagram

#

Description
Price

1

WINDSHIELD

BS7-F8381-00-00

$45.99

2

NUT(1KT)

90179-05523-00

$8.49

3

BODY, FRONT UPPER

BRA-F835G-00-00

$17.99

4

GROMMET

90480-14004-00

$8.49

5

SCREW, TAPPING

97702-50016-00

$2.39

6

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

7

SCREW, ROUND TAPPI

90160-05814-00

Unavailable

8

RIVET

90269-06816-00

$4.31

9

NUT, SPRING

90183-050A7-00

$3.50

10

GROMMET(4FU)

90480-13567-00

$4.99

11

SEAL

5D9-F414G-10-00

$0.54

12

SEAL

5D9-F414G-00-00

$1.07

13

COWLING

BRA-F8351-00-P1

Unavailable

14

SCREW, ROUND HEAD(1UX)

90150-05023-00

$4.19

15

. WASHER, PLATE

90202-05088-00

Unavailable

16

SEAL

5D9-F414G-10-00

$0.54

17

SEAL

5D9-F414G-00-00

$1.07

18

PANEL, INNER 4

BRA-F836N-00-00

Unavailable

19

RIVET

90269-06816-00

$4.31

20

BOLT

90111-05002-00

Unavailable

21

GROMMET

90480-13014-00

Unavailable

22

DAMPER, PLATE

90520-06810-00

Unavailable

23

PLUG(1NL)

90338-07180-00

Unavailable

24

PANEL, INNER 5

BRA-F836R-00-00

Unavailable

25

RIVET

90269-06816-00

$4.31

26

BOLT

90111-05002-00

Unavailable

27

STAY 1

BRA-F8356-00-00

Unavailable

28

BOLT, FLANGE

95817-08035-00

Unavailable

29

REAR VIEW MIRROR ASSY (LEFT)

BS7-F6280-00-00

Unavailable

30

REAR VIEW MIRROR ASSY (RIGHT)

BS7-F6290-00-00

Unavailable

31

PLATE, RUBBER 1 (BK61)

BK6-F8483-00-00

Unavailable

32

PLATE, RUBBER 2

BS7-F8484-00-00

Unavailable

33

PLATE, RUBBER 3

BS7-F8485-00-00

Unavailable

34

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

35

COLLAR

90387-06131-00

Unavailable

36

CAP BOLT

20P-F3469-00-00

Unavailable

38

LABEL, NOTICE WINDSHIELD 1

1WD-F815K-10-00

Unavailable
