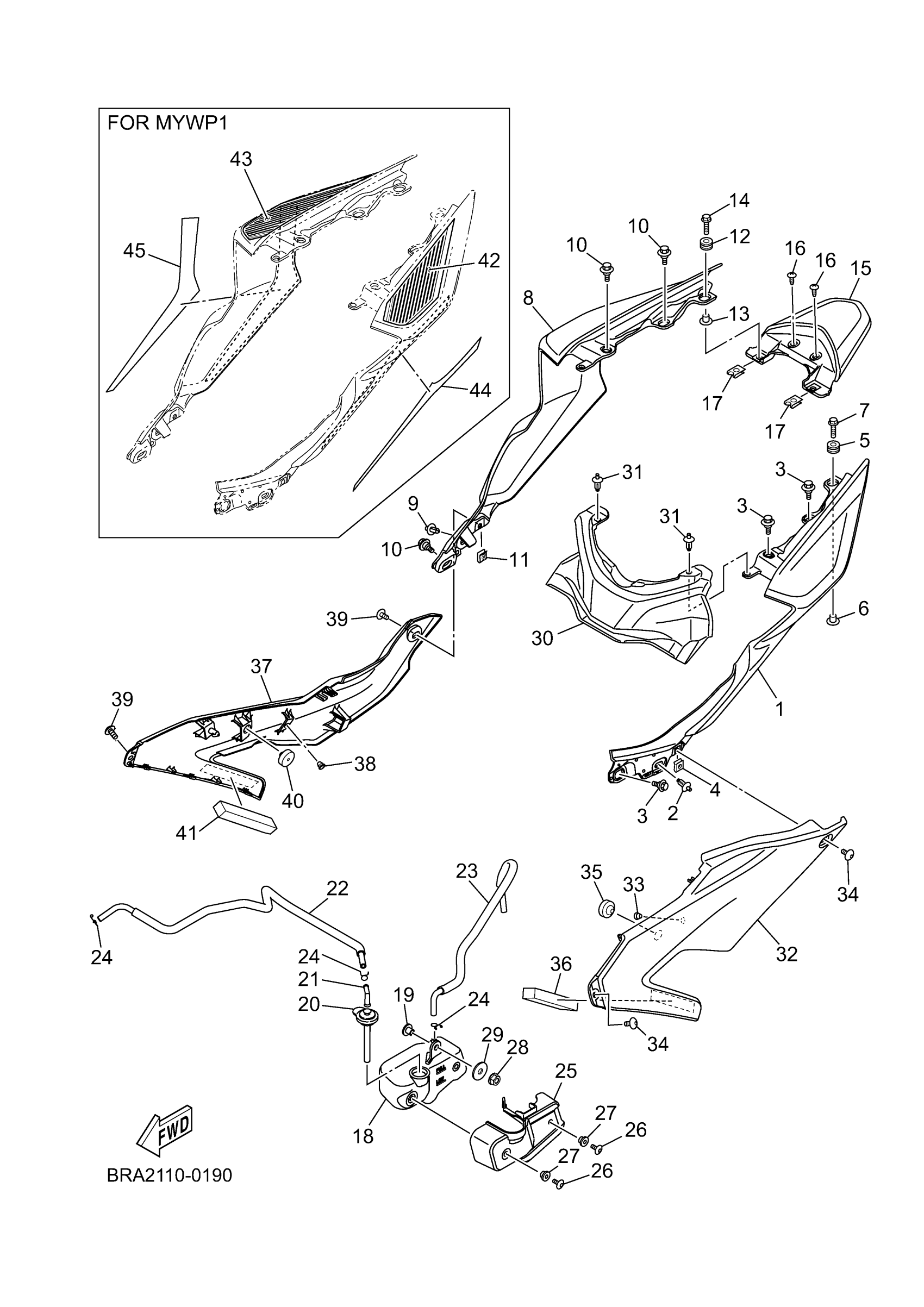

Yamaha YZFR3ASW (YZFR3 ABS) BRA22 2025 SIDE COVER Diagram
#
7
BOLT, FLANGE
95817-06025-00
Unavailable
8
COVER, SIDE 2
BRA-F1721-00-P1
Unavailable
14
BOLT, FLANGE
95817-06025-00
Unavailable
16
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
17
NUT, SPRING
90183-060A6-00
Unavailable
18
TANK, RECOVERY
1WD-F1871-01-00
Unavailable
19
COLLAR
90387-06857-00
Unavailable
20
CAP
1WD-F1875-02-00
Unavailable
21
ELBOW
26H-21828-00-00
Unavailable
22
PIPE 1
1WD-F1816-02-00
Unavailable
23
PIPE 2
1WD-F1817-02-00
Unavailable
24
CLIP 101235600
90467-08003-00
Unavailable
25
COVER
BS7-F172W-00-00
Unavailable
26
BOLT
90111-05003-00
Unavailable
27
SPACER (25G)
90560-06244-00
Unavailable
28
NUT, FLANGE
95702-06500-00
Unavailable
29
WASHER, PLATE
90201-06380-00
Unavailable
30
COVER, SIDE 3
BRA-F1731-00-00
Unavailable
32
COVER, SIDE 5
BRA-F171E-00-00
Unavailable
33
PLUG(1NL)
90338-07180-00
Unavailable
34
BOLT
90111-05002-00
Unavailable
35
PAD, SEAT
3C1-F4741-00-00
Unavailable
36
DAMPER, PLATE
90520-20020-00
Unavailable
37
COVER, SIDE 6
BRA-F171X-00-00
Unavailable
38
PLUG(1NL)
90338-07180-00
Unavailable
39
BOLT
90111-05002-00
Unavailable
40
PAD, SEAT
3C1-F4741-00-00
Unavailable
41
DAMPER, PLATE
90520-20020-00
Unavailable
