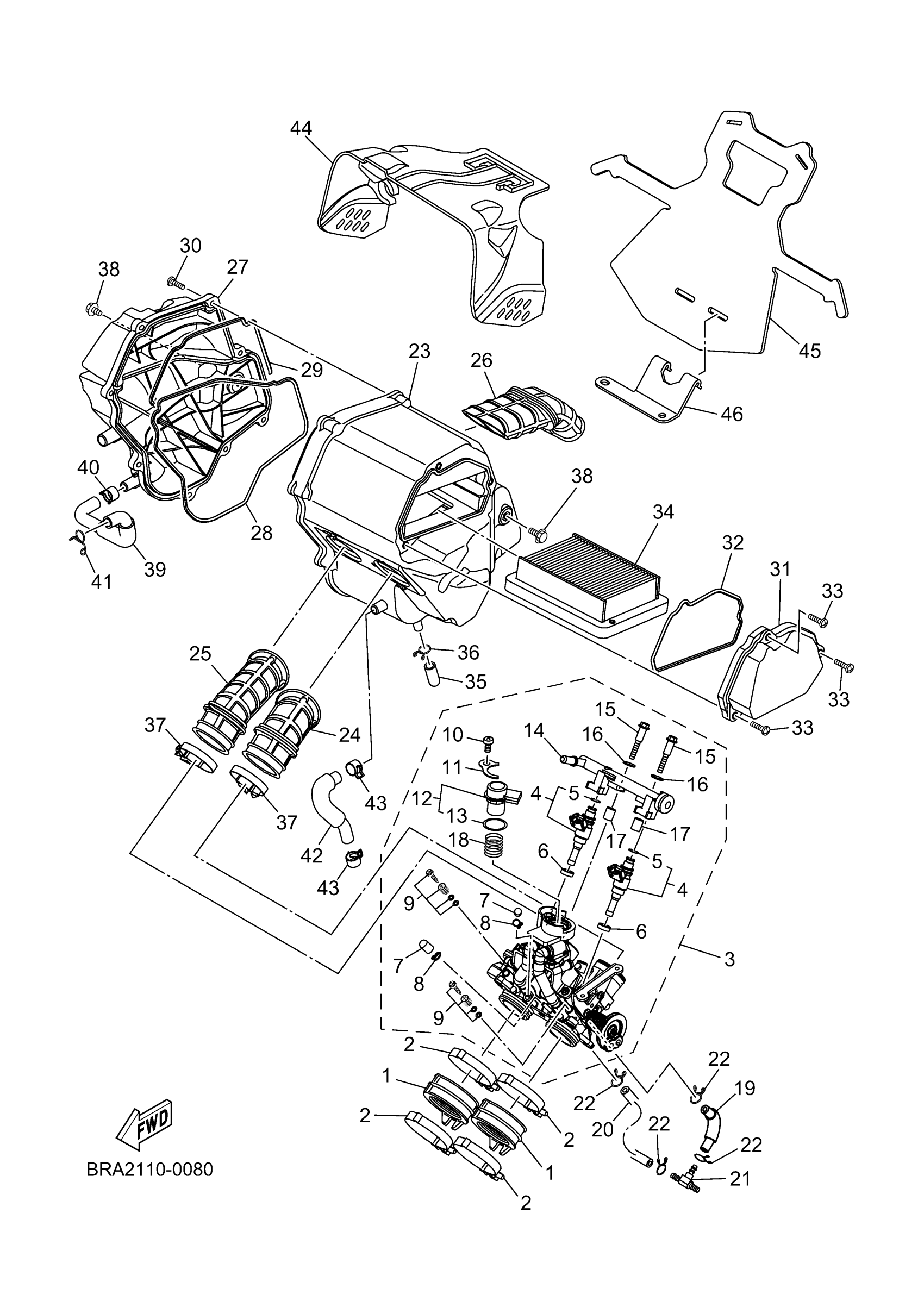

Yamaha YZFR3ASW (YZFR3 ABS) BRA22 2025 INTAKE Diagram

#

Description
Price

1

JOINT, INTAKE 1

B1X-E3635-00-00

$5.88

2

HOSE CLAMP ASSY

90450-52801-00

$4.02

3

THROTTLE BODY ASSY

B2X-E3750-02-00

$753.99

4

INJECTOR

1WD-E3761-00-00

$59.27

5

O-RING

5PS-14147-00-00

$8.68

6

GASKET

1WD-E3556-00-00

$2.46

7

CAP

895-14169-00-00

$3.73

8

CLIP, PIPE

8A7-14139-00-00

$6.34

9

AIR SCREW SET

5JW-14104-00-00

Unavailable

10

SCREW, PAN

98517-06012-00

$2.93

11

. PLATE

1WD-E4243-00-00

$3.89

12

STEPPING MOTOR

1WS-85801-02-00

$118.20

13

O-RING

54P-E416A-00-00

$6.33

14

PIPE

1WD-E3938-00-00

$67.10

15

BOLT 1

1WD-E3573-00-00

$1.13

16

WASHER

8GL-13571-00-00

Unavailable

17

COLLAR

8HG-14534-00-00

Unavailable

18

SPRING, PLUNGER

1WS-14335-00-00

Unavailable

19

PIPE

B1X-E4465-00-00

$7.48

20

PIPE (2MS1)

2MS-E4466-00-00

Unavailable

21

WAY 3

90413-06031-00

Unavailable

22

CLIP

90467-090A2-00

Unavailable

23

CASE, AIR CLEANER 1

BR5-E4411-00-00

Unavailable

24

FUNNEL, AIR

B2X-E4469-00-00

$9.27

25

FUNNEL 2

B2X-E446C-00-00

$10.24

26

DUCT

BR5-E4437-00-00

$8.21

27

CAP, CLEANER CASE 1

B2X-E4412-00-00

$9.76

28

SEAL

1WD-E4452-00-00

Unavailable

29

SEAL

1WD-E4457-00-00

$0.63

30

SCREW, TRUSS TAP.

97707-50025-00

Unavailable

31

CAP, CLEANER CASE 2

1WD-E4422-00-00

Unavailable

32

SEAL

1WD-E4462-00-00

Unavailable

33

SCREW, BIND

98902-05020-00

Unavailable

34

ELEMENT, AIR CLEANER

1WD-E4451-00-00

Unavailable

35

PIPE, DRAIN

5TL-E443E-00-00

Unavailable

36

CLIP

90467-110A3-00

Unavailable

37

BAND

54P-E3474-00-00

Unavailable

38

BLOT, FLANGE DEEP RECESS

95D32-06010-00

Unavailable

39

HOSE, AIR

B1X-E3543-00-00

$4.05

40

CLIP

90467-13802-00

Unavailable

41

CLIP (4X4)

90467-12052-00

Unavailable

42

PIPE, BREATHER

2MS-E5373-02-00

$1.43

43

CLIP

90467-13802-00

Unavailable

44

COVER, AIR CLEANER

BRA-E449E-00-00

Unavailable

45

GUARD, FLAP

BRA-F1642-00-00

Unavailable

46

STAY, FLAP

B04-F1533-00-00

Unavailable
