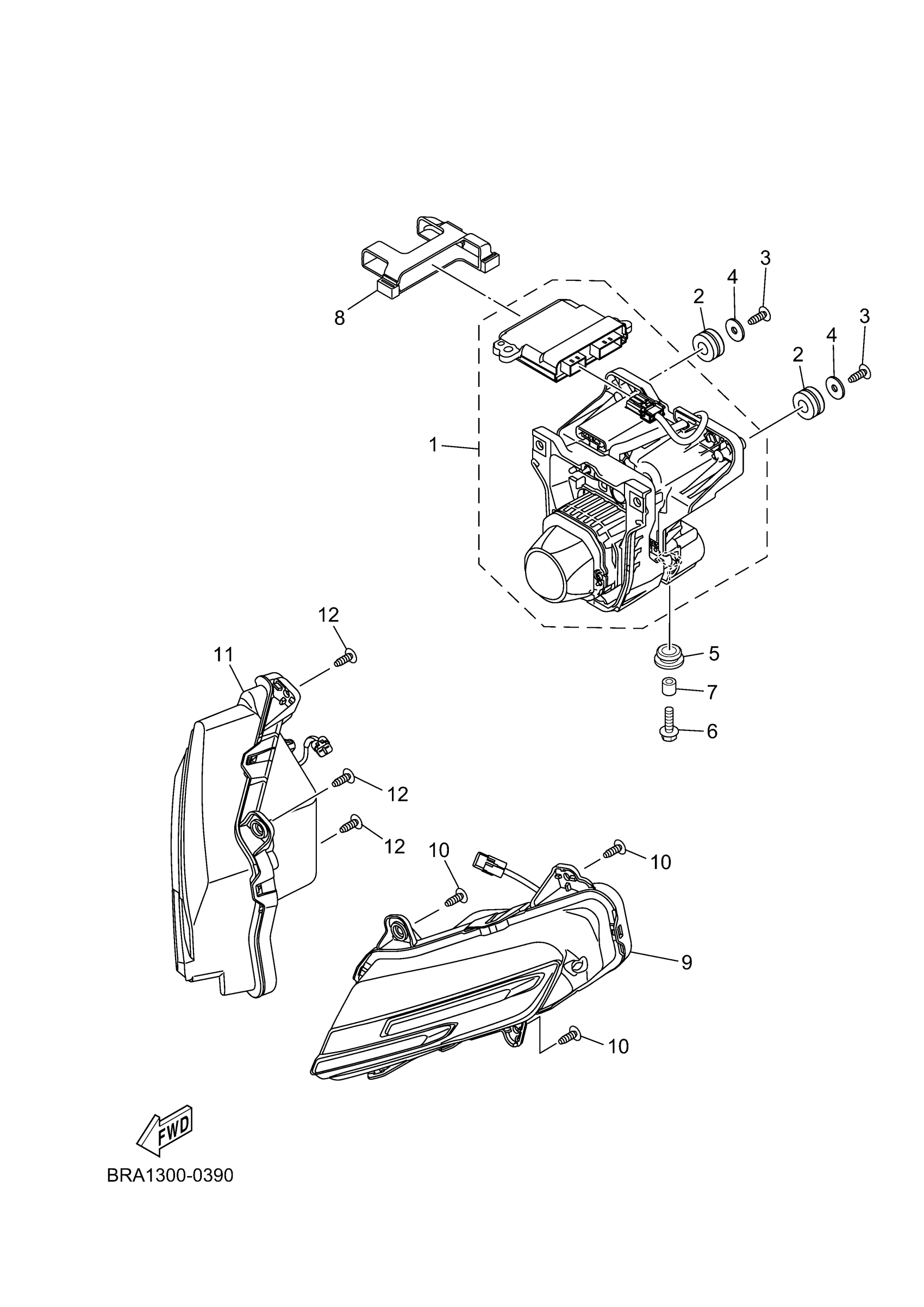

Yamaha YZFR3ASW (YZFR3 ABS) BRA22 2025 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY

BRA-H4300-00-00

Unavailable

2

GROMMET

90480-14004-00

$6.99

3

SCREW, TAPPING

97702-50016-00

$1.85

4

WASHER, PLATE (4H7)

90201-061A5-00

$5.47

5

GROMMET

90480-14823-00

Unavailable

6

BOLT, FLANGE DEEP

95D37-06020-00

$0.38

7

COLLAR

90387-068C2-00

$1.37

8

BAND

BRA-H3836-00-00

Unavailable

9

PILOT LIGHT ASSY 1

BRA-H4301-00-00

Unavailable

10

SCREW, TAPPING

97702-50016-00

$1.85

11

PILOT LIGHT ASSY 2

BRA-H4302-00-00

Unavailable

12

SCREW, TAPPING

97702-50016-00

$1.85
