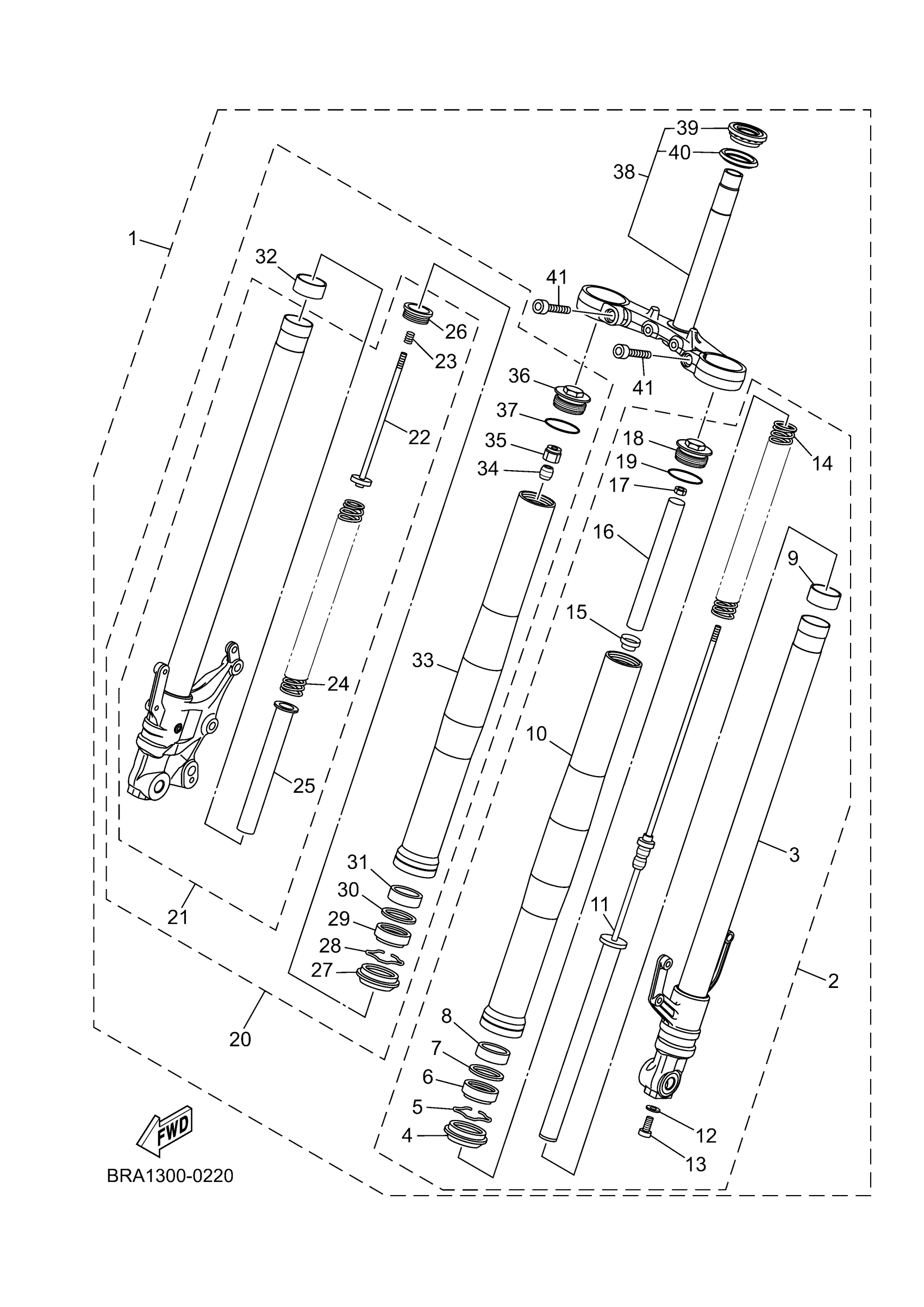

Yamaha YZFR3ASW (YZFR3 ABS) BRA22 2025 FRONT FORK Diagram
#
Description
Price
10
TUBE, OUTER (L.H)
B9T-F3126-00-00
Unavailable
11
CYLINDER COMP., FR
BRA-F3170-00-00
Unavailable
14
SPRING, FRONT FORK
BS7-F3141-00-00
Unavailable
16
SPACER
BS7-F3118-00-00
Unavailable
17
NUT (BK61)
BK6-F3357-00-00
Unavailable
18
BOLT, CAP
BS7-F3111-00-00
Unavailable
19
O-RING
4V4-23188-L1-00
Unavailable
20
FRONT FORK ASSY (R
BRA-F3103-10-00
Unavailable
21
INNER TUBE COMP.2
BRA-F3120-00-00
Unavailable
22
ROD COMP.
BRA-F330G-00-00
Unavailable
23
SPRING, SHOCK ABSORBER 2 (BK61
3AH-22222-00-00
Unavailable
24
SPRING, FRONT FORK
BS7-F3141-00-00
Unavailable
25
SPACER
BRA-F316E-00-00
Unavailable
26
... CAP
BK6-F319U-00-00
Unavailable
33
TUBE, OUTER (L.H)
B9T-F3126-00-00
Unavailable
34
BUMP, STOP (BK61)
BK6-F332K-00-00
Unavailable
35
NUT, SPECIAL (BK61)
BK6-F3393-00-00
Unavailable
36
BOLT, CAP
BS7-F3111-00-00
Unavailable
37
O-RING
4V4-23188-L1-00
Unavailable
38
UNDER BRACKET ASSY
BS7-F334M-00-00
Unavailable
39
BEARING(3FV)
93399-99932-00
Unavailable
40
SEAL, STEERING
3FV-23462-00-00
Unavailable
41
BOLT 1
BRA-F3346-00-00
Unavailable
