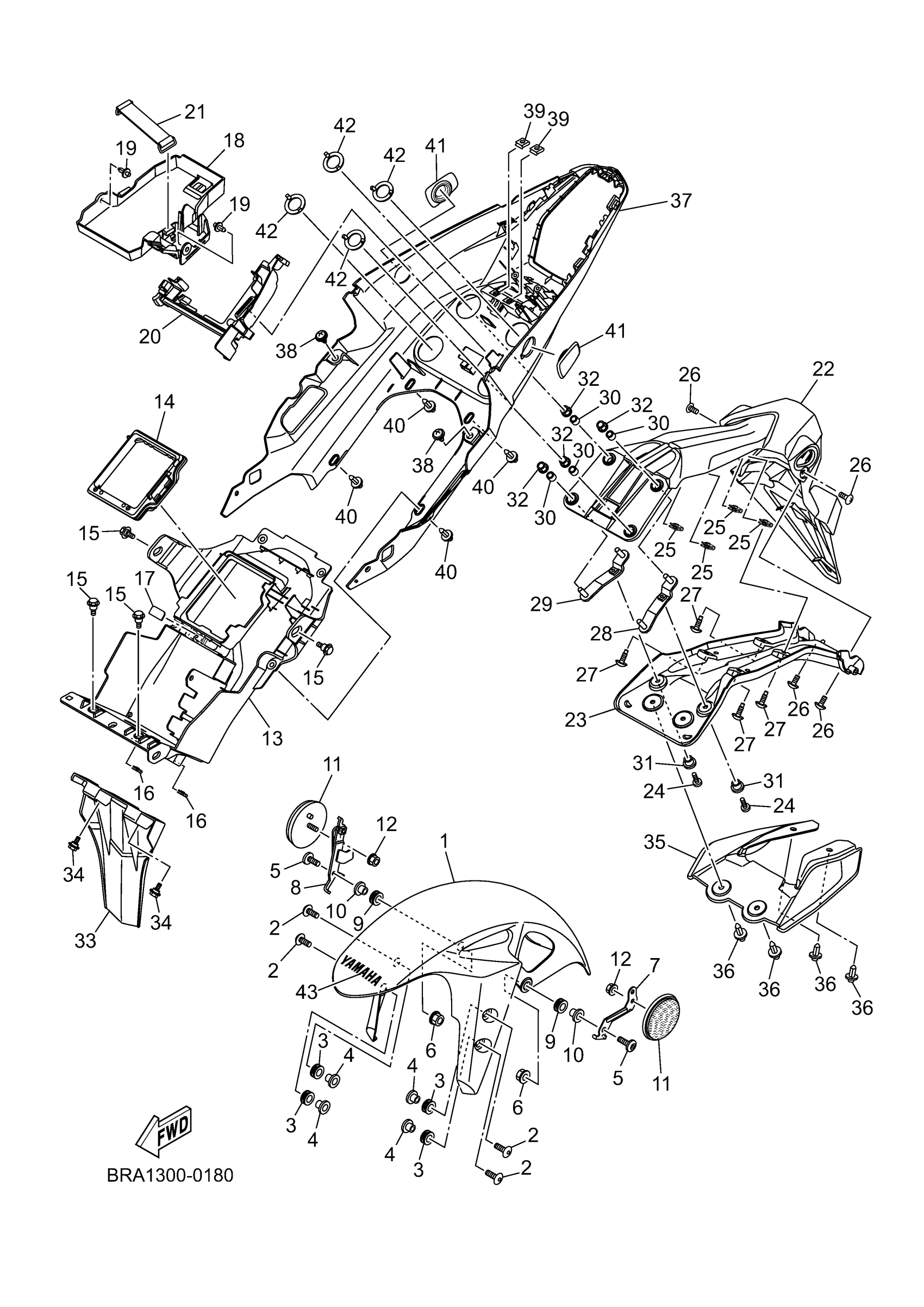

Yamaha YZFR3ASW (YZFR3 ABS) BRA22 2025 FENDER Diagram
#
14
SEAL
BRA-F1669-00-00
Unavailable
16
NUT, SPRING
90183-050A6-00
Unavailable
17
SEAL, 2
1WD-F16A2-00-00
Unavailable
18
COVER, REAR FENDER
BRA-F163E-00-00
Unavailable
19
RIVET
90269-06816-00
Unavailable
20
COVER, REAR FENDER
BRA-F163F-00-00
Unavailable
21
BAND, BATTERY
B44-H2131-00-00
Unavailable
22
GUARD, MUD
B1X-F1629-00-00
Unavailable
23
BRACKET, FENDER
1WD-F1617-01-00
Unavailable
24
BOLT,HEX. SOCKET BUTTON
90111-05021-00
Unavailable
25
NUT, SPRING
90183-050A7-00
Unavailable
26
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
27
BOLT
90111-05018-00
Unavailable
28
BRACKET, REAR STAY
1WD-F1688-00-00
Unavailable
29
BRACKET, REAR STAY 2
1WD-F1689-00-00
Unavailable
30
COLLAR (8H6)
90387-07573-00
Unavailable
31
COLLAR
90387-068L9-00
Unavailable
32
NUT, U FLANGE
95604-06200-00
Unavailable
33
FLAP
BRA-F1621-00-00
Unavailable
34
BOLT
90109-05003-00
Unavailable
35
COVER, REAR FENDER 1
1WD-F163A-00-00
Unavailable
36
RIVET
90269-06816-00
Unavailable
37
FENDER, REAR
BRA-F1611-00-00
Unavailable
38
SCREW, WITH WASHER
90159-06817-00
Unavailable
39
NUT, SPRING(47R)
90183-04039-00
Unavailable
40
RIVET
90269-06816-00
Unavailable
41
PLUG
BRA-H2929-00-00
Unavailable
42
PLATE 3
BRA-F1525-00-00
Unavailable
43
EMBLEM, YAMAHA
1WD-F153E-60-00
Unavailable
