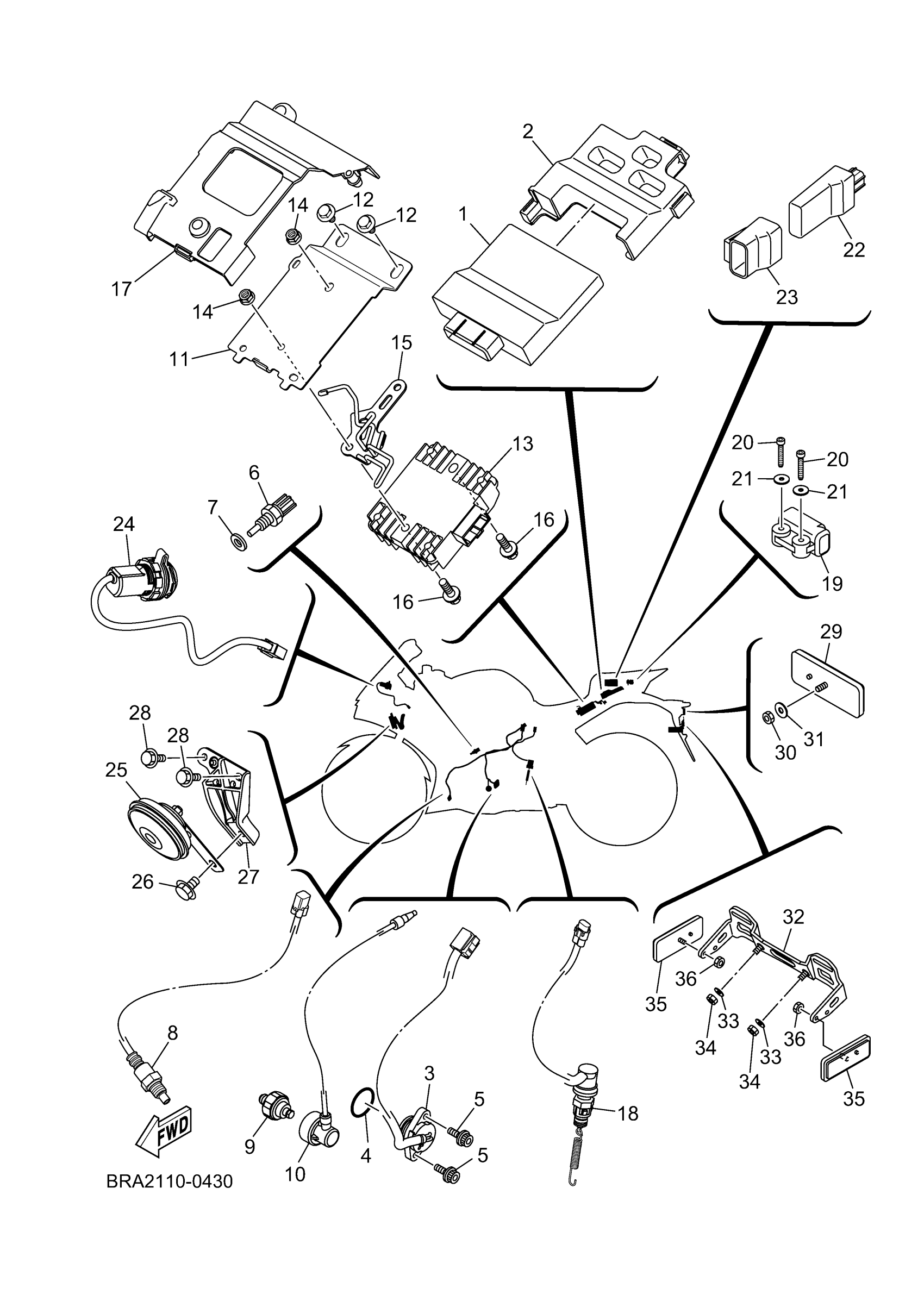

Yamaha YZFR3ASW (YZFR3 ABS) BRA22 2025 ELECTRICAL 2 Diagram

#

Description
Price

1

ENGINE CONTROL UNI

BRA-H591A-20-00

$393.99

2

BAND

BRA-H5546-00-00

Unavailable

3

NEUTRAL SWITCH ASS

BRA-H2540-00-00

Unavailable

4

O-RING (1S71)

93210-21801-00

Unavailable

5

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

$7.49

6

THERMO UNIT

B7J-H3591-00-00

$9.49

7

GASKET

90430-10804-00

Unavailable

8

SENSOR, OXYGEN

B1X-H592A-00-00

Unavailable

9

OIL PRESSURE SWITCH ASSY

1WS-82504-01-00

$70.99

10

LEAD WIRE ASSY

1WD-H1315-02-00

Unavailable

11

PLATE, RECTIFIER F

BRA-H1975-00-00

Unavailable

12

BOLT, WITH WASHER(55K)

90119-06114-00

$8.49

13

RECTIFIER & REGULATOR ASSY

1WD-H1960-00-00

$109.99

14

NUT, U FLANGE

95604-06200-00

$8.49

15

STAY, REGULATOR

BRA-H7208-00-00

Unavailable

16

BOLT, FLANGE DEEP RECESS

95D37-06025-00

Unavailable

17

COVER, RECTIFIER

BRA-H1972-00-00

Unavailable

18

STOP SWITCH ASSY

BRA-H2530-00-00

Unavailable

19

SENSOR, LEAN ANGLE

1WD-H2576-02-00

Unavailable

20

BOLT

91312-04025-00

Unavailable

21

WASHER, PLATE (8M6)

90201-047A2-00

Unavailable

22

COMMUNICATION CONT

B6Y-H5810-11-00

Unavailable

23

BAND

BDJ-H2591-00-00

Unavailable

24

USB ASSY

BRA-H21E0-01-00

Unavailable

25

HORN

1WD-H3371-00-00

Unavailable

26

BOLT, FLANGE DEEP

95D07-08012-00

Unavailable

27

STAY, HORN

1WD-H3378-00-00

Unavailable

28

BOLT, FLANGE DEEP RECESS

95D07-06016-00

Unavailable

29

REAR REFLECTOR ASSY

3C1-H5130-00-00

Unavailable

30

NUT, U

95617-05100-00

Unavailable

31

WASHER, PLATE

90201-05043-00

Unavailable

32

BRACKET, LICENSE

2MS-H4751-00-00

Unavailable

33

WASHER, PLATE

90201-06055-00

Unavailable

34

NUT,SELF-LOCKING

95607-06200-00

Unavailable

35

REAR REFLECTOR ASSY

3C1-H5130-00-00

Unavailable

36

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
