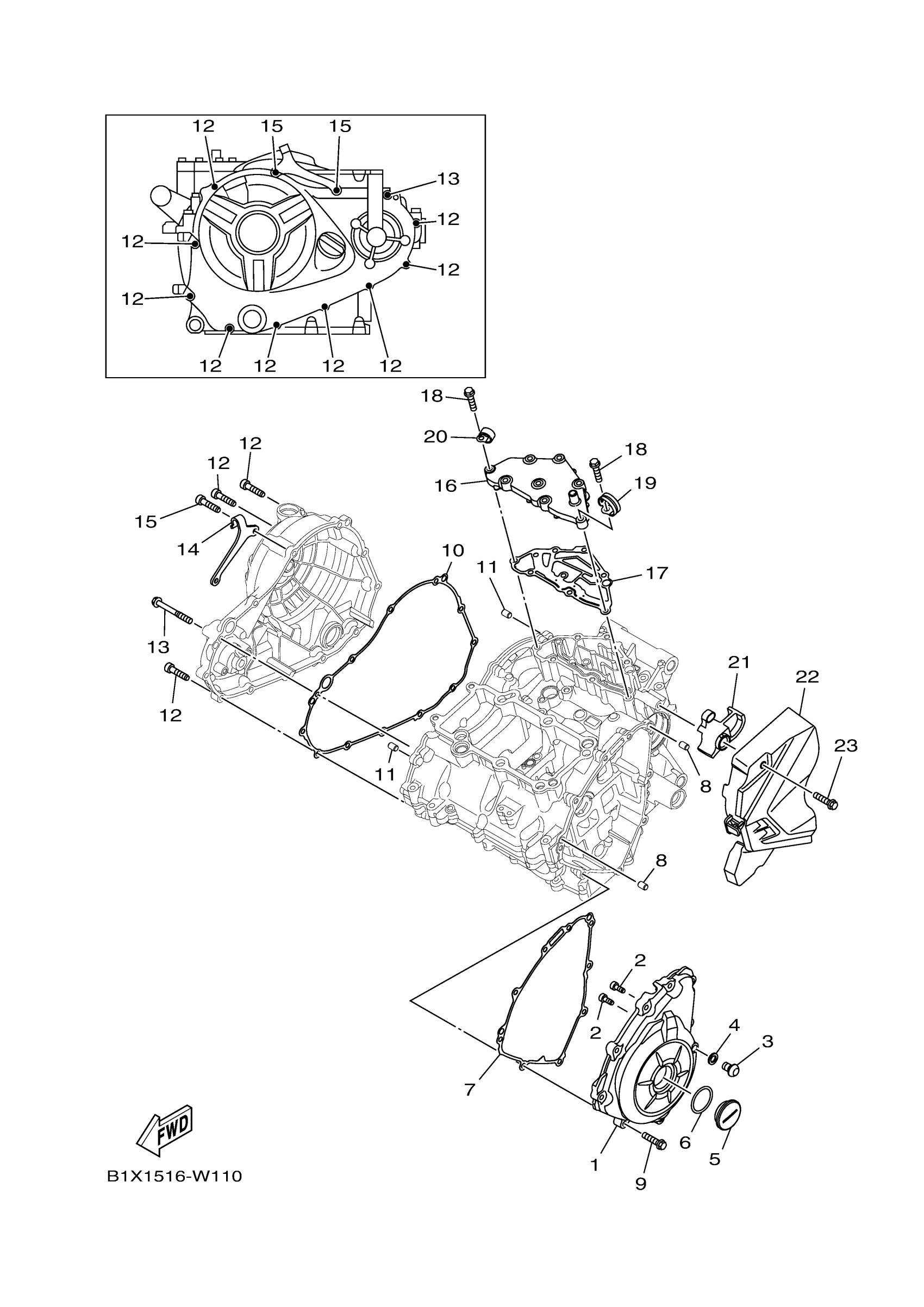

Yamaha YZFR3ASW (YZFR3 ABS) BRA22 2025 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

BRA-E5411-00-00

$38.99

2

BOLT(47X)

91312-05012-00

$4.29

3

BOLT, BUTTON HEAD

92014-08012-00

$9.49

4

. GASKET

90430-08143-00

Unavailable

5

PLUG, STRAIGHT SCREW

90340-32819-00

$12.49

6

O-RING

93210-32816-00

$3.25

7

GASKET, CRANKCASE COVER 1

1WD-E5451-00-00

$5.60

8

PIN, DOWEL

99530-08012-00

Unavailable

9

BOLT, FLANGE

95022-06025-00

$3.62

10

GASKET, CRANKCASE COVER 2

1WD-E5461-00-00

$55.99

11

PIN, DOWEL

99530-08012-00

Unavailable

12

BOLT, FLANGE

95022-06025-00

$3.62

13

BOLT, FLANGE

95022-06050-00

$3.23

14

HOLDER, CLUTCH CABLE

2MS-E5441-10-00

Unavailable

15

BOLT,SOCKET

91317-06025-00

$5.60

16

COVER

BRA-E5413-00-00

Unavailable

17

GASKET, CRANKCASE COVER 3

B1X-E5462-00-00

Unavailable

18

BOLT, FLANGE

95022-06025-00

$3.62

19

CLAMP

90462-08819-00

Unavailable

20

CLAMP

90462-08806-00

Unavailable

21

GUIDE, INLET

BS7-E5377-00-00

Unavailable

22

COVER, CHAIN CASE

1WD-E5418-00-00

Unavailable

23

BOLT, FLANGE

95022-06025-00

$3.62
