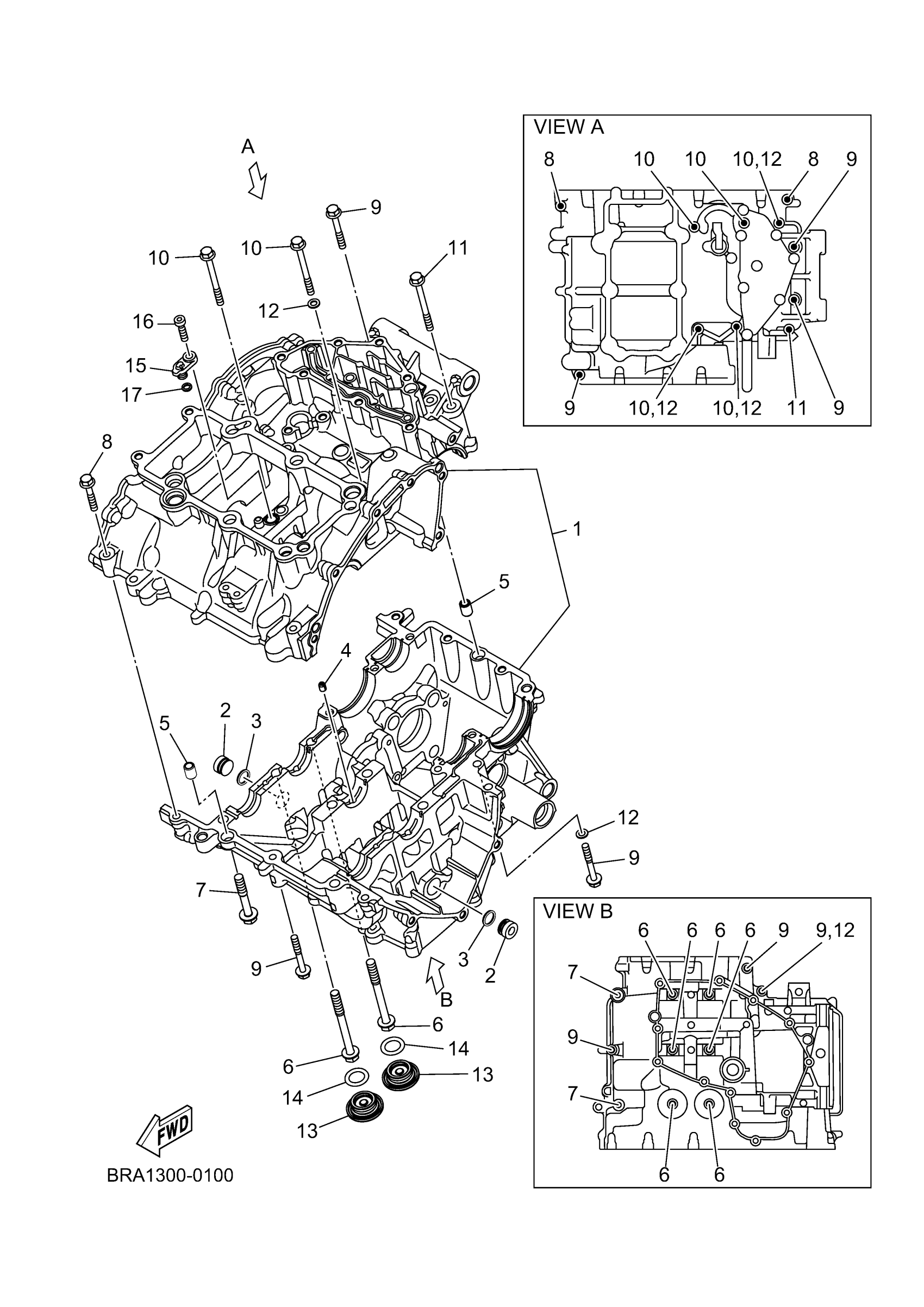

Yamaha YZFR3ASW (YZFR3 ABS) BRA22 2025 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

BRA-E5150-00-00

Unavailable

2

PLUG

90338-16262-00

$14.99

3

O-RING

93210-12803-00

Unavailable

4

NOZZLE 2

1WD-E5148-00-00

Unavailable

5

PIN, DOWEL(3VD)

99530-10114-00

$2.55

6

BOLT, FLANGE

90105-088F7-00

$30.99

7

BOLT, FLANGE

90105-088G0-00

$31.99

8

95812-06035

95812-06035-00

$4.94

9

BOLT, FLANGE

95817-06045-00

$8.49

10

BOLT, FLANGE

95812-06065-00

Unavailable

11

BOLT, FLANGE(JN5)

95817-08070-00

$3.76

12

GASKET 256113960000

90430-06014-00

Unavailable

13

PLUG, STRAIGHT SCR

90340-27008-00

Unavailable

14

O-RING (341)

93210-32172-00

$7.49

15

NOZZLE 3

B1X-E5155-00-00

Unavailable

16

BOLT,SOCKET

91317-06016-00

Unavailable

17

O-RING (26H)

93210-06632-00

Unavailable
